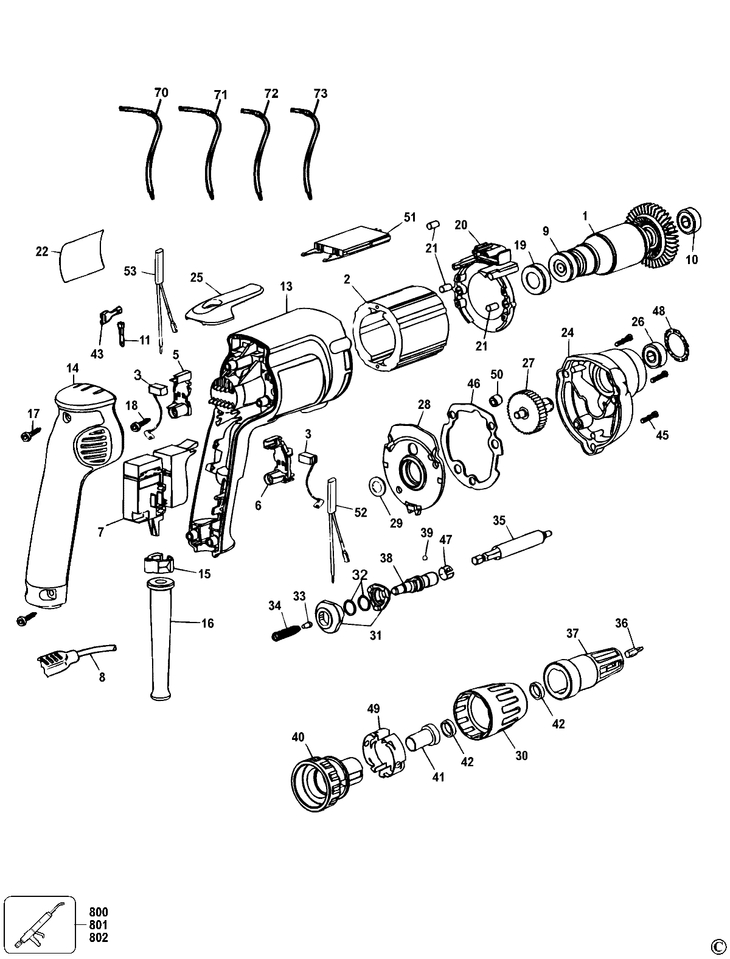

DW274SD SCREWDRIVER Type 1
[DW274SD Type 1]
DW274SD SCREWDRIVER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE & FAN (176851-00) 17335 RON
1 1 1 SA ARMATURE & BEARING 240 SERVICE ) (579598-13) 28296 RON
2 1 1 FIELD (176849-00) 10512 RON
2 1 1 FIELD 230V (176849-01SV) 15993 RON
3 1 2 BRUSH SHUNTED (176949-01) 4472 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SWITCH (176830-19) 15993 RON
7 1 1 SWITCH (176830-15) 17335 RON
8 1 1 CORD PWQR SUPPLY 115V (330061-14) 1891 RON
8 1 1 CORD PWR SUPPLY (330060-07) 14315 RON
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
11 1 2 TERMINAL (449192-00) 558 RON
13 1 1 000000-00 - Indisponibil
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
15 1 1 CORD CLAMP (402647-00) 781 RON
16 1 1 PROTECTOR CORD (330005-01) 105 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW (176951-00) 558 RON
19 1 1 SLEEVE (949721-03) 781 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 GEARCASE (388562-00SV) 12861 RON
25 1 1 BELT CLIP (N045425) 1452 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
27 1 1 GEAR & SPINDLE (638982-00) 12861 RON
28 1 1 GEARCASE COVER (386622-00) 4472 RON
29 1 1 WASHER (23813-00) 781 RON
31 1 2 000000-00 - Indisponibil
32 1 2 RETAINER (89210-00) 558 RON
33 1 1 GUIDE (021287-00) 558 RON
34 1 1 SPRING (86211-00) 558 RON
38 1 1 SPINDLE OUTPUT (176697-00) 7940 RON
39 1 1 BALL STEEL (696631-00) 558 RON
40 1 1 000000-00 - Indisponibil
43 1 2 TERMINAL (136086-02) 558 RON
45 1 3 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 1 BALL RETAINER (94518-00) 558 RON
48 1 1 RETAINER BEARING (176689-00) 558 RON
50 1 1 NEEDLE BEARING (93128-00) 1229 RON
51 1 1 SA MODULE SUPPRESSION (176917-00) 12861 RON
52 1 1 LEAD WHITE (176890-00) 2124 RON
53 1 1 LEAD RED (176890-01) 3466 RON
70 1 1 SA LEAD WIRE (176893-00) 105 RON
71 1 1 SA LEAD WIRE (176892-00) 781 RON
72 1 1 SA LEADWIRE (176894-00) 558 RON
73 1 1 SA LEAD WIRE (176834-00) 893 RON
800 1 1 GREASE (761995-01) 23598 RON
801 1 1 GREASE (761995-01) 23598 RON
802 1 1 GREASE (69542-00) 91714 RON
