Top » Piese de schimb » PIESE DEWALT » DW269K Type 3

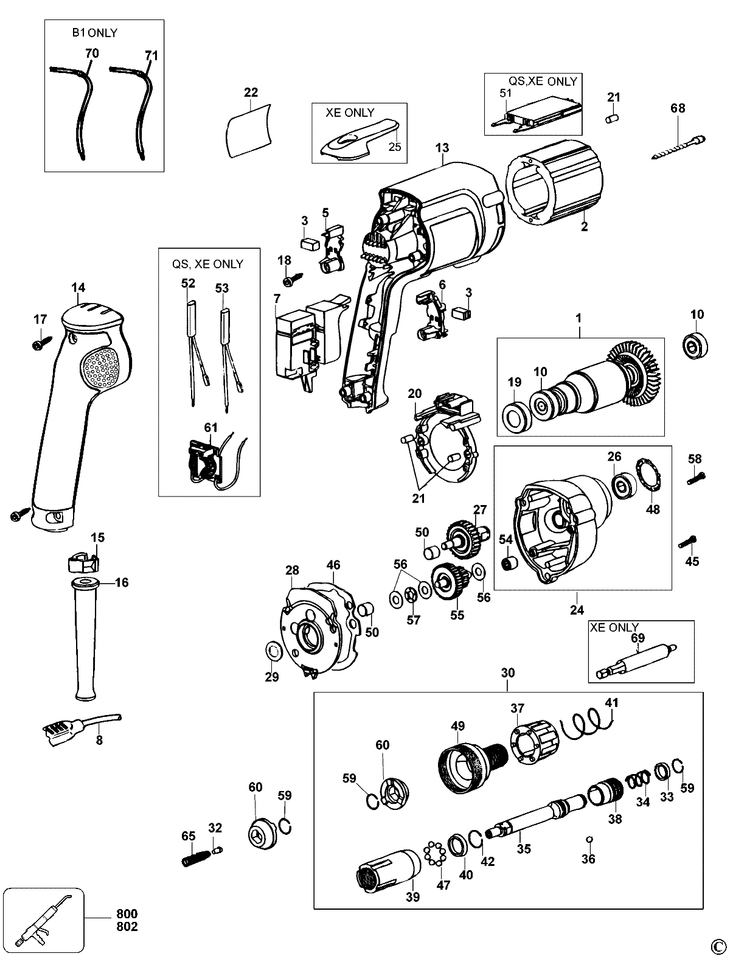

DW269K SCREWDRIVER Type 3
[DW269K Type 3]
DW269K SCREWDRIVER Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 240 SERVICE ) (579598-13) 28296 RON
2 1 1 SA FIELD DIPPED (SERVICE) (1005527-05) 28296 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SA SWITCH 230V (494635-01) 17335 RON
10 1 2 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
14 1 1 COVER HANDLE HOLE 35 (176816-03) 1891 RON
16 1 1 PROTECTOR CORD (330005-01) 105 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
27 1 1 SA SPINDLE & GEAR (176712-00) 17335 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 WASHER (23813-00) 781 RON
30 1 1 SA NOSEPIECE (450556-00) 46863 RON
32 1 1 GUIDE (021287-00) 558 RON
33 1 1 WASHER (90866-00) 1788 RON
34 1 1 SPRING (86134-00) 558 RON
35 1 1 SPINDLE (450360-00) 9282 RON
36 1 1 BALL (99047-01) 558 RON
37 1 1 COLLAR (90639-02) 1452 RON
38 1 1 RETAINER (387451-00) 2795 RON
39 1 1 ADJUSTABLE STOP (450555-00) 6821 RON
40 1 1 SEAL (090596-00) 2795 RON
41 1 1 SPRING (87928-00) 781 RON
42 1 1 RETAINER (21360-00) 558 RON
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
47 1 8 BALL (903-00) 558 RON
49 1 1 CLUTCH HOUSING (93105-01) 15993 RON
50 1 2 NEEDLE BEARING (93128-00) 1229 RON
54 1 1 BEARING NEEDLE 6 * 10 * 9 (910560) 1229 RON
55 1 1 SA PINION & GEAR (176647-00) 9282 RON
56 1 3 WASHER THRUST (176732-00) 558 RON
57 1 1 BEARING THRUST (143079-00) 781 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
59 1 2 RETAINER (89210-00) 558 RON
60 1 2 CLUTCH (400970-01) 4137 RON
65 1 1 SPRING (86211-00) 558 RON
68 1 2 SCREW (390198-00) 558 RON
800 1 1 GREASE (761995-01) 23598 RON
802 1 1 GREASE (69542-00) 91714 RON
