Top » Piese de schimb » PIESE DEWALT » DW252-----D Type 1

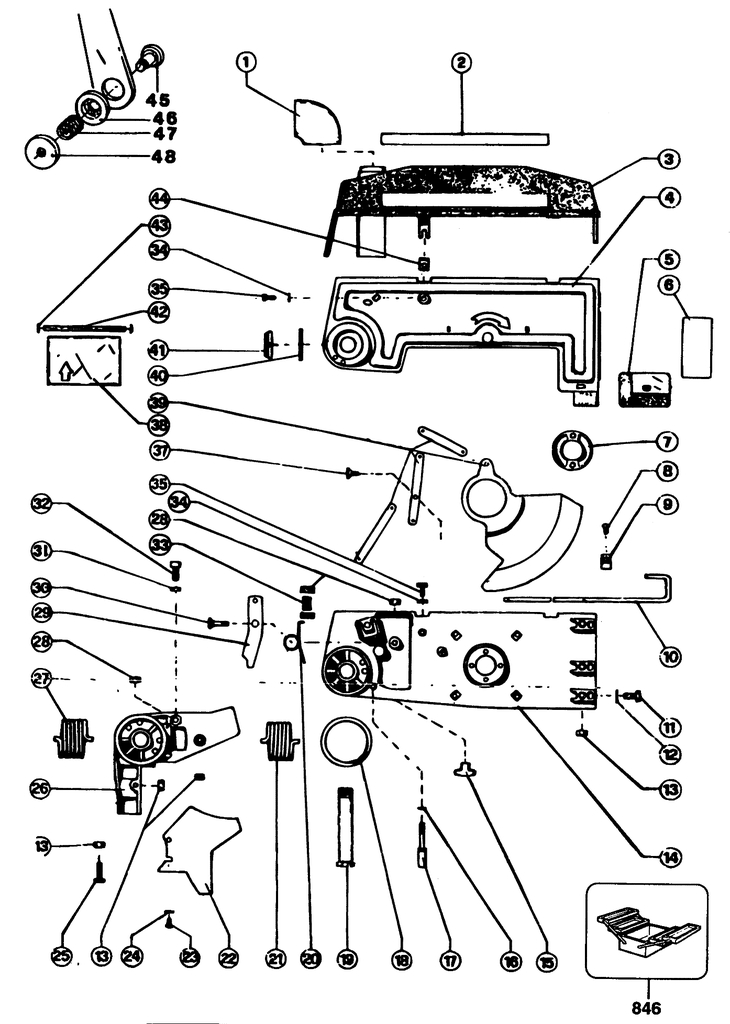

DW252-----D MITRE SAW Type 1
[DW252-----D Type 1]
DW252-----D MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
2 1 1 000000-00 - Indisponibil
3 1 1 000000-00 - Indisponibil
4 1 1 000000-00 - Indisponibil
5 1 1 000000-00 - Indisponibil
6 1 1 000000-00 - Indisponibil
7 1 1 MOZZO PROT OSCILL.DW711 (863039-02) 781 RON
8 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
9 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
10 1 1 000000-00 - Indisponibil
11 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
12 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
13 1 4 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
14 1 1 000000-00 - Indisponibil
15 1 1 KNOB (946469-00) 781 RON
16 1 1 GASKET DW250-DW252 (949746-02) 558 RON
17 1 1 STUD LOCKING HEAD DW250 (863605-00) 1788 RON
18 1 1 HEAD SHIM DW250-DW252 (863611-00) 781 RON
19 1 1 JOINT AXLE DW250 (863607-00) 6821 RON
20 1 1 HEAD BLOCKING SPRING DW250-DW2 (863604-00) 1117 RON
21 1 1 RIGHT TORSIONAL SPRING DW250-D (863590-00) 5031 RON
22 1 1 000000-00 - Indisponibil
23 1 1 SCREW PAN PH/TT M.5X10UNI8112 (860094-06) 558 RON
24 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
25 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
26 1 1 HEAD SUPPORT (862182-00) 20467 RON
27 1 1 LEFT TORSIONAL SPRING DW250-DW (863606-00) 5031 RON
28 1 3 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
29 1 1 HEAD BLOCKING PLATE DW250-DW25 (863610-00) 1452 RON
30 1 1 HEAD BLOCKING PIN (863602-00) 190 RON
31 1 1 DISTANCIAL (863599-02) 105 RON
32 1 1 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
33 1 1 SCREW SET M.6X20 UNI 5923 (860088-10) 558 RON
34 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
35 1 2 SELF TAPPING SCREW 4 (860084-21) 558 RON
37 1 1 SCREW FOR PROTECTION BAR -DW25 (863262-00) 190 RON
38 1 1 000000-00 - Indisponibil
39 1 1 SA SWINGING PROTECTION DW711 (864693-04) 1891 RON
39 1 1 SA SWINGING PROTECTION DW711 (864693-04) 1891 RON
40 1 1 PLAIN WASHER D.21XD.37X3 (949761-02) 558 RON
41 1 1 LOCK NUT FOR PIVOT PIN DW250-D (949759-01) 2347 RON
42 1 1 000000-00 - Indisponibil
43 1 1 RING SPRING S.LOCK D.4 (860077-01) 558 RON
44 1 1 PLATE NUT (865410-00) 558 RON
45 1 1 PIN SA (863046-00) 2124 RON
46 1 1 BUSH (863048-00) 1788 RON
47 1 1 SPRING (949722-18) 558 RON
48 1 1 KNOB (863047-00) 190 RON
846 1 1 000000-00 - Indisponibil
