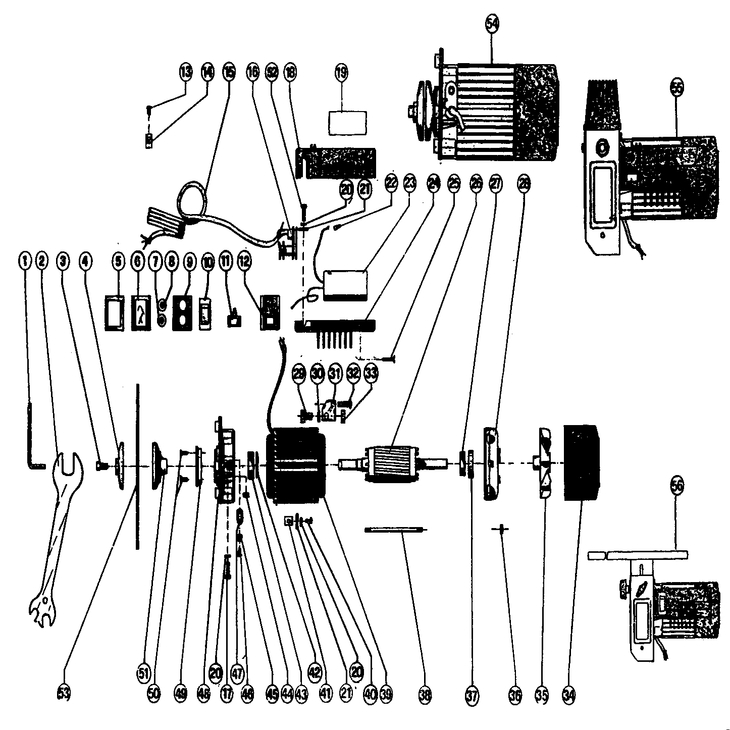

DW250-----A MITRE SAW Type 1
[DW250-----A Type 1]
DW250-----A MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
2 1 1 000000-00 - Indisponibil
3 1 1 SCREW SOCKET M8X20 LH UNI5931 (761295-00) 105 RON
5 1 1 PLATE FOR SWITCH CAP-DW320 (863198-00) 781 RON
6 1 1 CAP FOR SWITCH-DW320 (863849-00) 781 RON
7 1 1 START PUSH BUTTON DW252-GER (863124-17) 6821 RON
7 1 1 START PUSH BUTTON DW252-GER (863124-17) 6821 RON
8 1 1 STOP PUSH BUTTON DW252 -GER. (863124-16) 6821 RON
9 1 1 REDUCTION RING FOR SWITCH-BLAC (862420-00) 781 RON
10 1 1 000000-00 - Indisponibil
11 1 1 000000-00 - Indisponibil
11 1 1 000000-00 - Indisponibil
12 1 1 000000-00 - Indisponibil
13 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
14 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
15 1 1 000000-00 - Indisponibil
16 1 1 CABLE INLET RING DW250-DW252 (863573-00) 105 RON
17 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
18 1 1 HANDLE DW711 (862429-04) 5591 RON
19 1 1 000000-00 - Indisponibil
19 1 1 000000-00 - Indisponibil
20 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
21 1 2 RUBBER FOR SCREW-DW250-252 (863025-00) 558 RON
22 1 1 000000-00 - Indisponibil
23 1 1 CAPACITOR DW250-DW252 (949772-23) 9282 RON
25 1 1 SCREW PAN PHAB 4.2X22 UNI6954 (860084-09) 558 RON
26 1 1 000000-00 - Indisponibil
27 1 1 BEARING 6202 (868768-07) 4137 RON
28 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
29 1 1 SCREW HEX M.8X12 UNI5739 ZINC (860085-18) 558 RON
30 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
31 1 1 000000-00 - Indisponibil
32 1 1 SCREW (249406-00) 558 RON
33 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
34 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
35 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
36 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
37 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
38 1 1 MOTOR TIE ROD-DW320 (863015-00) 781 RON
39 1 1 000000-00 - Indisponibil
40 1 1 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
41 1 1 WASHER FOR SCREW (949761-01) 558 RON
42 1 1 RING SPRING S.LOCK HOLE ZJ-40 (860806-00) 893 RON
43 1 1 BEARING 6203 2RS ISB (861721-12) 2347 RON
44 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
45 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
46 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
47 1 1 GASKET FOR EARTH WIRE (863026-00) 558 RON
48 1 1 000000-00 - Indisponibil
49 1 1 MOZZO PROT OSCILL.DW711 (863039-02) 781 RON
50 1 1 000000-00 - Indisponibil
51 1 1 000000-00 - Indisponibil
52 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
54 1 1 000000-00 - Indisponibil
56 1 1 000000-00 - Indisponibil
