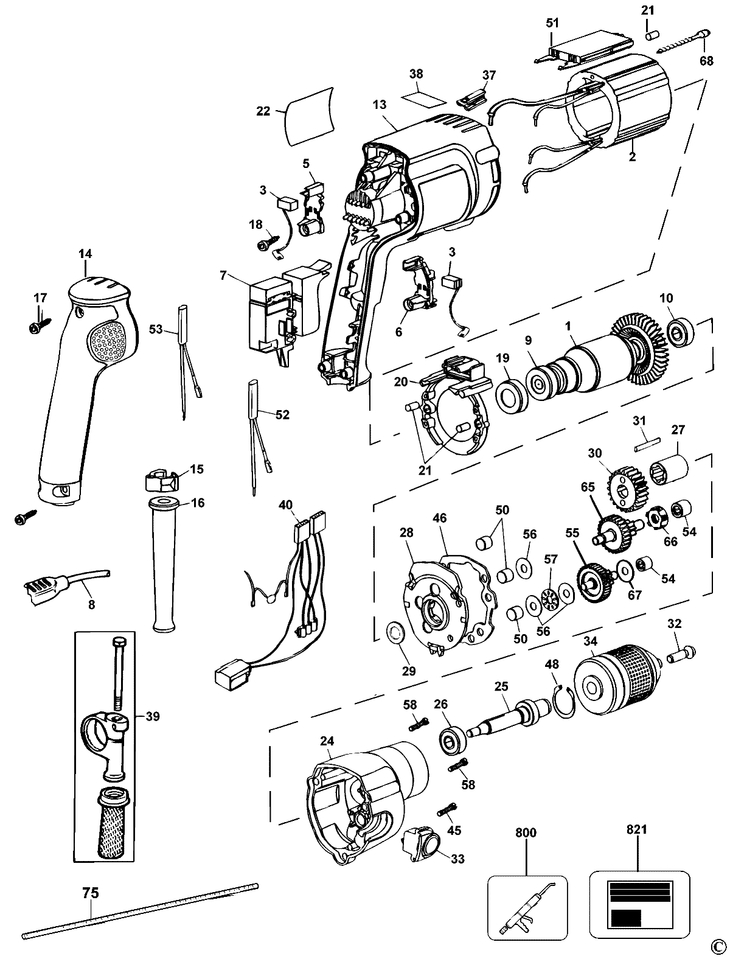

DW248 DRILL Type 4
[DW248 Type 4]
DW248 DRILL Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (579598-17) 29862 RON
2 1 1 SA FIELD 230V PLUG ( SERVICE ) (579605-01) 1891 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SA SWITCH & PIN (386623-01) 17335 RON
8 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
13 1 1 000000-00 - Indisponibil
14 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
15 1 1 CORD CLAMP (402647-00) 781 RON
16 1 1 PROTECTOR CORD (330005-01) 105 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 SA GEARCASE (176678-00) 26730 RON
25 1 1 SPINDLE OUTPUT (176705-00) 11519 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
27 1 1 SPACER (176691-00) 781 RON
28 1 1 SA GEARCASE COVER (176698-01) 7940 RON
29 1 1 WASHER (23813-00) 781 RON
30 1 1 GEAR OUTPUT (176704-00) 10512 RON
31 1 1 PIN LOOSE ROLLER (099227-05) 558 RON
32 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
33 1 1 SA SPINDLE LOCK (176641-00) 4472 RON
34 1 1 CHUCK KEYLESS (586200-02) 29862 RON
37 1 1 000000-00 - Indisponibil
38 1 1 000000-00 - Indisponibil
39 1 1 HANDLE SIDE (939794-02) 5591 RON
40 1 1 000000-00 - Indisponibil
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176724-00) 558 RON
48 1 1 RETAINER (87692-00) 558 RON
50 1 3 NEEDLE BEARING (93128-00) 1229 RON
51 1 1 MODULE (622427-03) 46863 RON
52 1 1 SA CHOKE ASSEMBLY (580555-00) 190 RON
53 1 1 SA CHOKE ASSEMBLY (580555-01) 190 RON
54 1 2 BEARING NEEDLE (330004-01) 1452 RON
55 1 1 SA PINION & GEAR (176700-00) 14315 RON
56 1 3 WASHER (91817-00) 781 RON
57 1 1 WASHER (91644-00) 1452 RON
58 1 2 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
65 1 1 PINION & GEAR SA (176703-00SV) 28296 RON
66 1 1 SA THRUST BEARING (176733-00) 4137 RON
67 1 1 WASHER THRUST (385075-00) 893 RON
68 1 2 SCREW (949650-01) 558 RON
75 1 1 DEPTH STOP (940357-00) 893 RON
800 1 1 GREASE (286436-00) 70239 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
