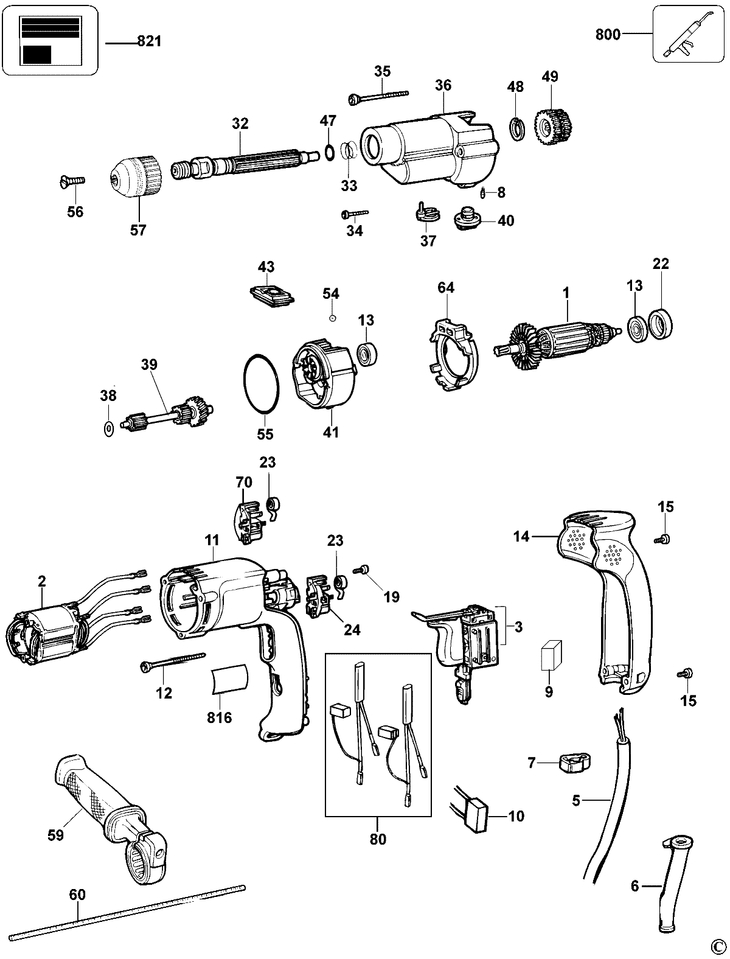

DW241 DRILL Type 3
[DW241 Type 3]
DW241 DRILL Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (578756-04) 28296 RON
1 1 1 SA ARMATURE & BEARING 115V ( SERVICE ) (578756-05) 34336 RON
2 1 1 SA FIELD DIPPED (SERVICE) (1005529-03) 25164 RON
2 1 1 SA FIELD DIPPED (SERVICE) (1005529-04) 34336 RON
3 1 1 SA SWITCH AND PIN 230V (SERVICE) (494635-00) 1891 RON
3 1 1 000000-00 - Indisponibil
5 1 1 CORD PWR SUPPLY GB (330060-28) 12861 RON
5 1 1 330061-07 - Indisponibil
6 1 1 CORD PROTECTOR (403395-00) 1788 RON
7 1 1 CORD CLAMP (402648-00) 781 RON
8 1 2 DETENT (326467-00) 558 RON
9 1 1 BUMPER SPONGE (930026-01) 781 RON
10 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
11 1 1 CASE FIELD 40MM YEL CAD FREE (mould) (N019317) 5591 RON
12 1 2 SCREW (390198-00) 558 RON
13 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
14 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
15 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 1 BALL STEEL (936840-00) 558 RON
19 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
22 1 1 RUBBER BOOT (389824-00) 558 RON
23 1 2 SPRING BRUSH (402759-00) 781 RON
24 1 1 SA BRUSH HOLDER (401877-01) 2347 RON
32 1 1 SA PACKAGED SPINDLE (SERVICE) (581235-00) 17335 RON
33 1 1 SPRING (931890) 558 RON
34 1 1 SCREW (330019-14) 558 RON
35 1 2 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
36 1 1 000000-00 - Indisponibil
37 1 1 SA SELECTOR FORK (401735-00) 2347 RON
38 1 1 WASHER UNI6593 (930102-00) 558 RON
39 1 1 SA INTERSHAFT PACKED ( SERVICE ) (581234-00) 22144 RON
40 1 1 SELECTOR FORK (628891-00) 4472 RON
41 1 1 000000-00 - Indisponibil
43 1 1 SA LEVER (401750-00) 3466 RON
47 1 1 O-RING (930028-00) 558 RON
48 1 1 SEAL GREASE (1006305-00) 781 RON
49 1 1 GEAR DOUBLE (397239-01) 4137 RON
54 1 1 BALL (903-00) 558 RON
55 1 1 RING OR (401847-00) 558 RON
56 1 1 CHUCK SCREW (448847-02) 781 RON
57 1 1 CHUCK KEYLESS (586200-01) 3124 RON
59 1 1 HANDLE SIDE (939794-02) 5591 RON
60 1 1 DEPTH STOP (940357-00) 893 RON
64 1 1 FAN BAFFLE (176811-00) 781 RON
70 1 1 SA BRUSH HOLDER (401878-01) 2347 RON
72 1 1 O RING DW501 TYPE 2 (930727-00) 1117 RON
76 1 1 RING O (061145-00) 558 RON
77 1 1 050050-00 - Indisponibil
80 1 1 BRUSH PAIR 230V SA (SUBA) (578393-02) 5031 RON
80 1 1 BRUSH PAIR 115V (SUBA) (N081423) 4472 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
