DW233K DRILL Type 3
[DW233K Type 3]
DW233K DRILL Type 3
Click pentru a mari

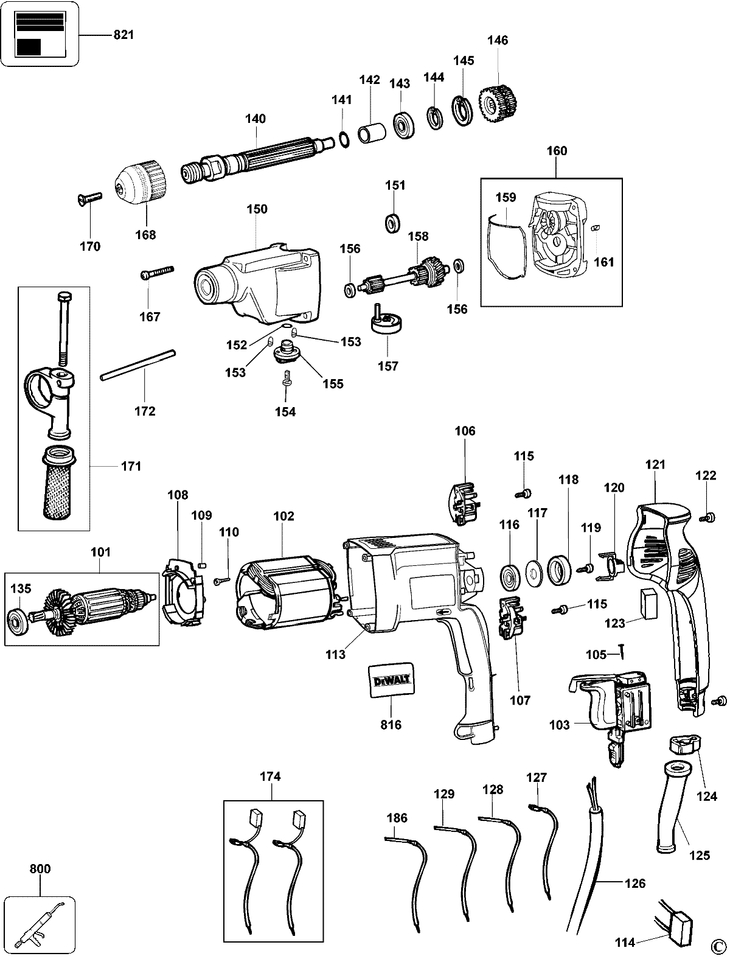

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (327471-02) 3592 RON
101 1 1 SA ARMATURE & BEARING 115V ( SERVICE ) (327471-03) 37579 RON
102 1 1 SA FIELD 230V (SERVICE) (328961-02) 25164 RON
102 1 1 SA FIELD ( SERVICE ) (328961-19) 26730 RON
103 1 1 SWITCH (176830-15) 17335 RON
103 1 1 SWITCH (176830-19) 15993 RON
105 1 1 PIN REVERSE LIMIT (402760-01) 558 RON
106 1 1 SA BRUSH HOLDER (401878-00) 2347 RON
107 1 1 SA BRUSH HOLDER (401877-00) 2347 RON
108 1 1 COVER FAN (327293-00) 105 RON
109 1 2 PLUG (949638-01) 558 RON
110 1 4 SCREW (747329) 558 RON
113 1 1 HOUSING MOTOR (327290-05) 5031 RON
114 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
115 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
116 1 1 BEARING BALL (330003-19) 2124 RON
117 1 1 WASHER (949876-25) 558 RON
118 1 1 BEARING COVER (870052) 558 RON
119 1 1 SCREW COLLER 8MM (329794-00) 558 RON
120 1 1 CAP BEARING (327296-00) 558 RON
121 1 1 COVER HANDLE SOFT YELLOW (327298-01) 5591 RON
122 1 3 SCREW (330065-08) 558 RON
123 1 1 BUMPER SPONGE (930026-01) 781 RON
124 1 1 CORD CLAMP (402648-00) 781 RON
125 1 1 CORD PROTECTOR (403395-00) 1788 RON
126 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
126 1 1 CORD POWER SUPPY 115V UK (330061-04) 1891 RON
127 1 1 SA LEADWIRE BLACK 90MM (949801-86) 893 RON
127 1 1 SA LEAD WIRE BLACK 90MM (940988-70) 781 RON
128 1 1 LEAD BLACK 90MM (949801-85) 893 RON
128 1 1 SA LEAD WIRE BLACK 90MM (940988-71) 558 RON
129 1 1 SA LEADWIRE (573310-00) 781 RON
129 1 1 SA LEADWIRE (573310-00) 781 RON
135 1 1 BEARING BALL 608 (330003-03) 1452 RON
140 1 1 SA SPINDLE PERCUSSION ( SERVICE ) (327313-02) 25164 RON
141 1 1 O-RING (930028-00) 558 RON
142 1 1 SLEEVE (327289-00) 105 RON
143 1 1 BEARING BALL 153209 (330003-12) 2795 RON
144 1 1 RING (944137-00) 781 RON
145 1 1 CIRCLIP (931398) 781 RON
146 1 1 000000-00 - Indisponibil
150 1 1 SA GEARCASE (327311-00) 22144 RON
151 1 1 SEAL GREASE (1006305-00) 781 RON
152 1 1 323711-34 - Indisponibil
153 1 2 DETENT (326467-00) 558 RON
154 1 1 SCREW PLASTIC 3.5*22 (330065-22) 558 RON
155 1 1 SWITCH 2 SPEED BLACK (327309-01) 893 RON
156 1 2 WASHER UNI6593 (930102-00) 558 RON
157 1 1 SA SWITCH MECHANISM (327314-00) 4472 RON
158 1 1 SA INTERSPINDLE CLUTCH ( SERVICE ) (577850-01) 51337 RON
159 1 1 SEAL HOUSING (327291-00) 893 RON
160 1 1 SA GEARCASE COVER ( SERVICE ) (583999-03) 15993 RON
161 1 1 RUBBER ELEMENT (916010) 558 RON
167 1 4 SCREW TAPPING BT 4*40 (580095-00) 558 RON
168 1 1 CHUCK KEYLESS (586200-01) 3124 RON
170 1 1 CHUCK SCREW 40/45 RC (575237-00) 558 RON
171 1 1 HANDLE SIDE (939794-02) 5591 RON
172 1 1 DEPTH STOP (580787-00) 893 RON
174 1 1 BRUSH PAIR 230V SA (SUBA) (578393-02) 5031 RON
174 1 1 BRUSH PAIR 115V (SUBA) (N081423) 4472 RON
186 1 1 SA LEADWIRE (573310-01) 781 RON
186 1 1 SA LEAD WIRE (573310-04) 781 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
816 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
