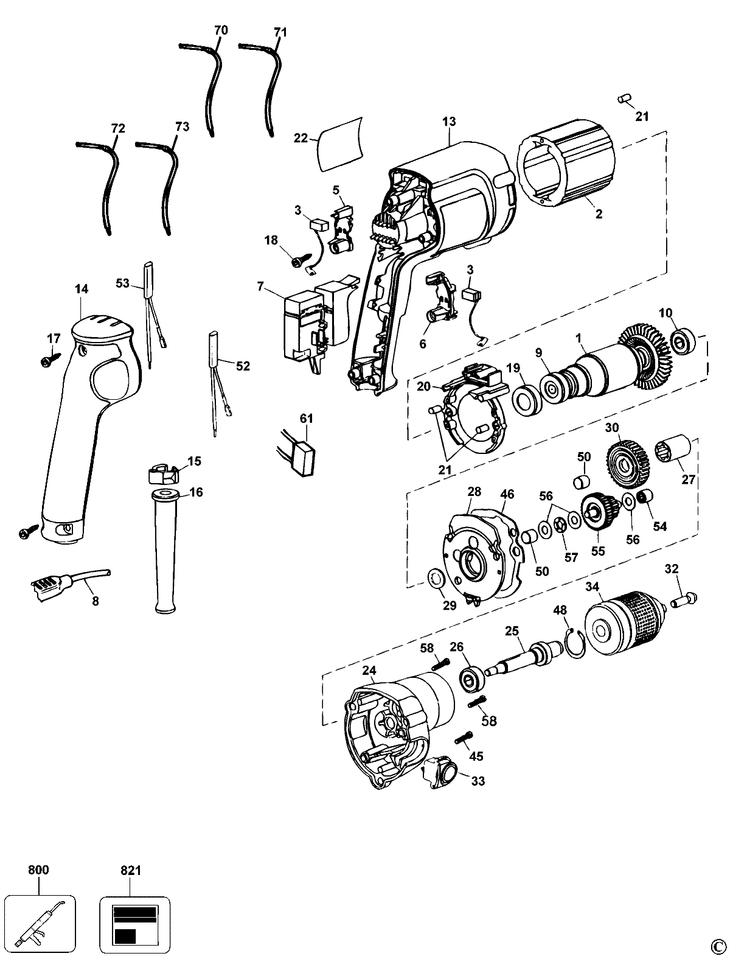

DW221 DRILL Type 4
[DW221 Type 4]
DW221 DRILL Type 4
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA ARMATURE & BEARING 230V ( SERVICE ) (579598-15) 28296 RON
2 1 1 SA FIELD 230V PLUG ( SERVICE ) (579605-01) 1891 RON
3 1 2 BRUSH 230V CUT OFF (176949-00) 2347 RON
5 1 1 SA BRUSH HOLDER LEFT (176801-03) 7940 RON
6 1 1 SA BRUSH HOLDER RIGHT (176800-03) 6821 RON
7 1 1 SWITCH (176830-15) 17335 RON
8 1 1 CORDSET GB (330060-83) 15993 RON
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
13 1 1 CASE FIELD 40MM YEL CAD FREE (mould) (N019317) 5591 RON
14 1 1 COVER HANDLE SLOT 40 (176900-01) 15993 RON
15 1 1 CORD CLAMP (402648-00) 781 RON
16 1 1 PROTECTOR CORD (330005-01) 105 RON
17 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
18 1 2 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
19 1 1 RUBBER BOOT (389824-00) 558 RON
20 1 1 FAN BAFFLE (176811-00) 781 RON
21 1 3 SMALL RUBBER (949638-02) 558 RON
22 1 1 LABEL IDENTITY DEWALT 34*48 (395047-00) 558 RON
24 1 1 176634-04 - Indisponibil
25 1 1 SPINDLE OUTPUT (176638-00) 7940 RON
26 1 1 BEARING BALL (330003-09) 2795 RON
27 1 1 SPACER (176691-00) 781 RON
28 1 1 COVER GEARCASE (388761-00) 4137 RON
29 1 1 WASHER (23813-00) 781 RON
30 1 1 GEAR OUTPUT (176682-00) 5591 RON
32 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
33 1 1 SA SPINDLE LOCK (176641-00) 4472 RON
34 1 1 CHUCK KEYLESS 10MM (330075-68) 20467 RON
45 1 1 SCREW (330019-14) 558 RON
45 1 1 SCREW (330019-14) 558 RON
46 1 1 GASKET (176655-00) 558 RON
48 1 1 RETAINER (87692-00) 558 RON
50 1 2 BEARING NEEDLE 6 * 10 * 9 (910560) 1229 RON
52 1 1 SA CHOKE ASSEMBLY (580555-00) 190 RON
53 1 1 SA CHOKE ASSEMBLY (580555-01) 190 RON
54 1 1 BEARING DW226 (93129-00) 1117 RON
55 1 1 SPINDLE & GEAR (176731-00SV) 15993 RON
56 1 3 WASHER (91817-00) 781 RON
57 1 1 WASHER (91644-00) 1452 RON
58 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
61 1 1 "CAPACITOR 0 22""" (949877-01) 1117 RON
70 1 1 SA LEAD WIRE (176893-00) 105 RON
71 1 1 SA LEAD WIRE (176834-00) 893 RON
72 1 1 SA LEAD WIRE (176892-00) 781 RON
73 1 1 SA LEADWIRE (176894-00) 558 RON
800 1 1 GREASE (286436-00) 70239 RON
821 1 1 RATING PLATE DeWALT BLANK (569037-00) 105 RON
