Top » Piese de schimb » PIESE DEWALT » DW1753----F Type 1

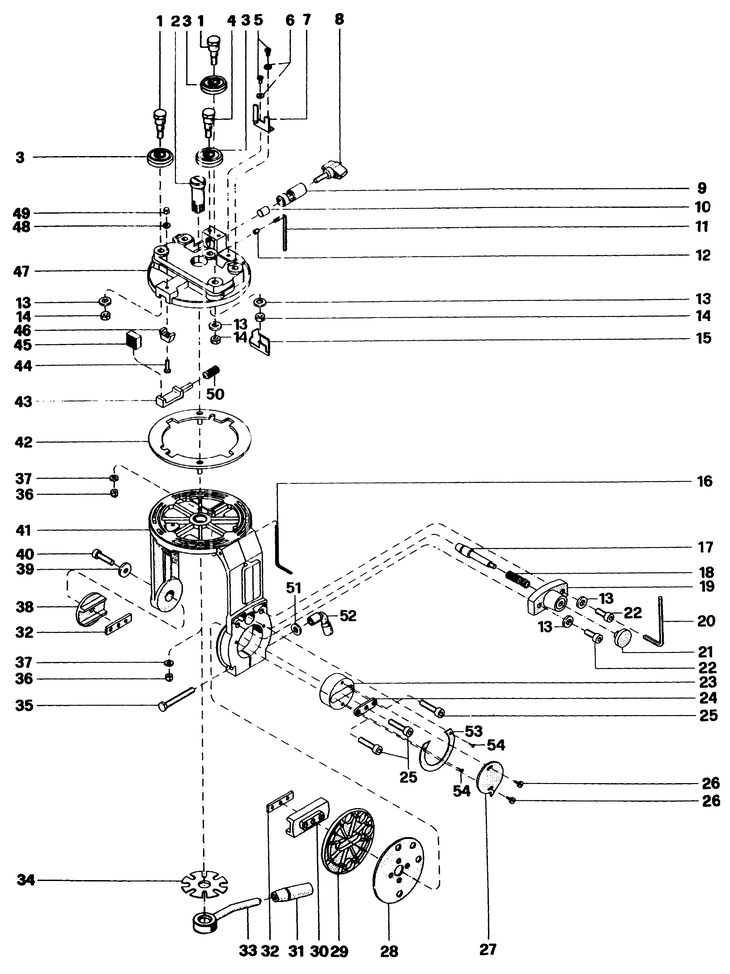

DW1753----F RADIAL ARM SAW Type 1
[DW1753----F Type 1]
DW1753----F RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW CONCENTRIC BEARING 1712 (760421-00) 3466 RON
2 1 1 PIVOT M.18X1.5 L.50 (860123-00) 5031 RON
3 1 1 BEARING SPECIAL SKF 614432-B (860154-00) 25164 RON
4 1 1 BEARING SHAFT-ECCENTRIC DW125- (760417-00) 4137 RON
5 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
7 1 1 000000-00 - Indisponibil
8 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
9 1 1 RIP LOCK (SLEEVE) (860121-00) 5031 RON
10 1 1 LOCK (PISTON) (860122-00) 893 RON
11 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON
12 1 1 SCREW SET M.6X6 UNI 5929 (860088-27) 558 RON
13 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
14 1 1 NUT HEX THICK M.8X1 UNI 5587 (860083-08) 558 RON
15 1 1 CAP FOR ROLLERHEAD (860817-01) 1229 RON
16 1 1 WRENCH (949882-01) 781 RON
17 1 1 LOCATING PLUG (863977-00) 14315 RON
18 1 1 SPRING PUSHER D13XD1 2X39 (860112-11) 1788 RON
19 1 1 SUPPORT FOR INDEX PIN YOKE (860835-00) 9282 RON
20 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
21 1 1 KNOB (946469-00) 781 RON
22 1 1 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
23 1 1 SUPPORT FOR INDEX PIN YOKE (860835-00) 9282 RON
24 1 1 PLATE FOR HUBE (860120-00) 105 RON
25 1 1 SCREW SOCKET M.8X35 UNI 5931 (860093-18) 781 RON
26 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
27 1 1 000000-00 - Indisponibil
28 1 1 PLATE INDEX YOKE-MOTOR DW1251 (860830-00) 2347 RON
29 1 1 GASKET FOR YOKE HUBE DW1251 (860827-00) 2124 RON
30 1 1 BRACKET FRONT YOKE-MOT.DW1251 (860828-00) 190 RON
31 1 1 HANDLE D.20X67XD.10 BLACK (860796-01) 1229 RON
32 1 1 PLATE 13X55-3 HOLES M8 DW1251 (860809-00) 2347 RON
33 1 1 CLAMP YOKE/ROLLER HEAD (864057-01) 10512 RON
34 1 1 ADJUSTER SPRING WASHER (860113-00) 3018 RON
35 1 1 SCREW HEX M.8X75 UNI 5737 (860086-11) 893 RON
36 1 1 NUT ELAST.STOP M.6 UNI 7473 (860092-02) 558 RON
37 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
38 1 1 BUSHING REAR MOT.YOKE DW1251 (860822-00) 190 RON
39 1 1 WASHER D.8 4X24X2 (941602-00) 558 RON
40 1 1 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
41 1 1 GRAY YOKE DW1251 (860823-02) 3124 RON
42 1 1 THRUST RING + SCREWS (863157-00) 5591 RON
43 1 1 LOCATING CATCH DW125 (860818-01) 2347 RON
44 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
45 1 1 CAP FOR LOCATING CATCH 1712US (760427-00) 781 RON
46 1 1 INSERT ROLLERHEAD ADJUSTMENT (860816-00) 781 RON
47 1 1 000000-00 - Indisponibil
48 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
49 1 1 NUT M5 (860092-03) 558 RON
50 1 1 000000-00 - Indisponibil
51 1 1 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
52 1 1 HANDLE M.8 LOCKING ARM-YOKE (860825-00) 3466 RON
53 1 1 SCALE BEVEL DW1251 (860829-00) 190 RON
54 1 1 SCREW TSPPH (860205-06) 558 RON
