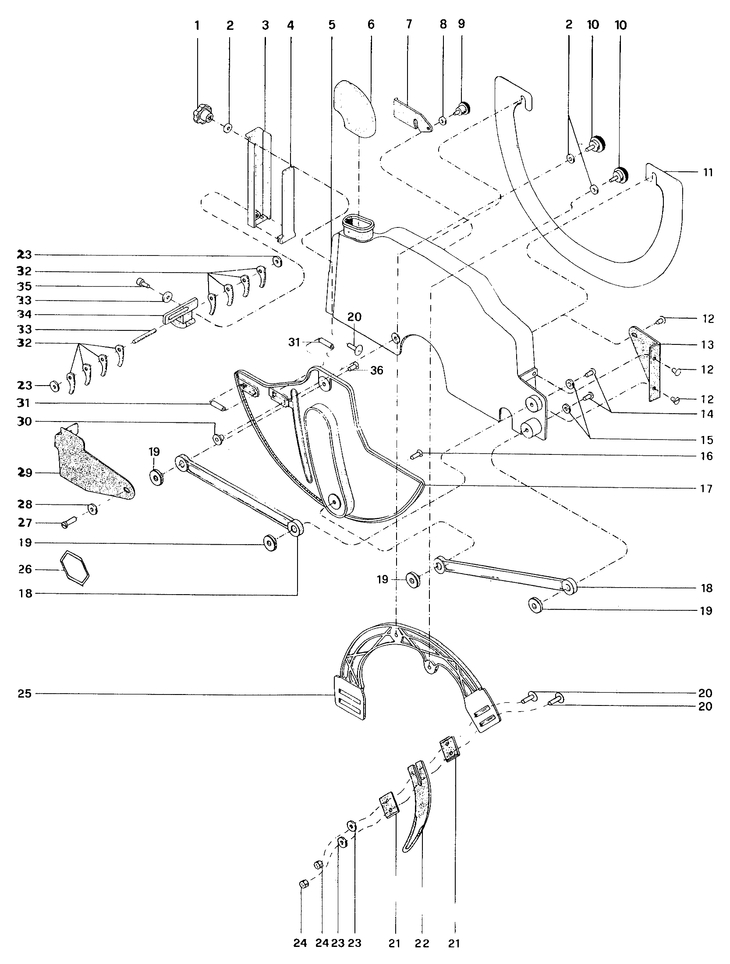

DW1751----B RADIAL ARM SAW Type 1
[DW1751----B Type 1]
DW1751----B RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 KNOB (946469-00) 781 RON
3 1 1 KICK-UP SUPPORT FOR EUROGUARD (863709-00) 2795 RON
4 1 1 SPACER / DUST PROTECTOR EUROGU (863703-00) 1452 RON
5 1 1 GUARD (862235-04) 26730 RON
6 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
7 1 1 ROTATING SQUARE (863708-00) 1788 RON
8 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
9 1 1 KNOB (861842-01) 1229 RON
11 1 1 REAR PROTECTION (863706-01) 7940 RON
12 1 1 SCREW FILL.HD M.5X8 UNI6107 (760273-00) 558 RON
13 1 1 GUIDE SQUARE (863707-01) 3466 RON
14 1 2 SCREW M5X10 (760998-00) 558 RON
15 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
16 1 1 SCREW M5X10 (249412-20) 558 RON
17 1 1 OUTER PROTECTION EUROG.DW1250 (862417-00) 4137 RON
18 1 1 LEVER (862084-01) 3018 RON
19 1 1 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
20 1 2 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
21 1 1 30/10 RIVING KNIFE PLATE (864086-00) 105 RON
22 1 1 000000-00 - Indisponibil
23 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
24 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
25 1 1 KNIFE HOLDER EUR. D.250 (862083-00) 14315 RON
27 1 1 SCREW FIL.HD M.6X16 UNI6107 (860089-23) 558 RON
28 1 2 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
29 1 1 GUIDE SQUARE (863775-01) 3466 RON
30 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
31 1 1 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
32 1 8 KICK-UP FINGERS DW125-111-137 (864013-00) 558 RON
34 1 1 COMPLETE KICK-UP ASSEMBLY EURO (864814-01) 20467 RON
35 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
36 1 1 SCREW M5X10 (249412-20) 558 RON
37 1 1 GUARD SA (869322-00) 153454 RON
38 1 1 000000-00 - Indisponibil
39 1 1 LOCKING LEVER M8 1712USA (863320-00) 1229 RON
40 1 1 CAP FOR LOCKING LEVER (863073-00) 781 RON
41 1 1 SPRING (760483-00) 558 RON
42 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
43 1 1 DISTANCIAL (863599-02) 105 RON
44 1 1 SQUARE HEAD BUTTON SCREW M8X50 (949891-03) 781 RON
45 1 2 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
46 1 1 SCREW HEX M.8X20 UNI 5739 (860085-03) 558 RON
47 1 1 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
