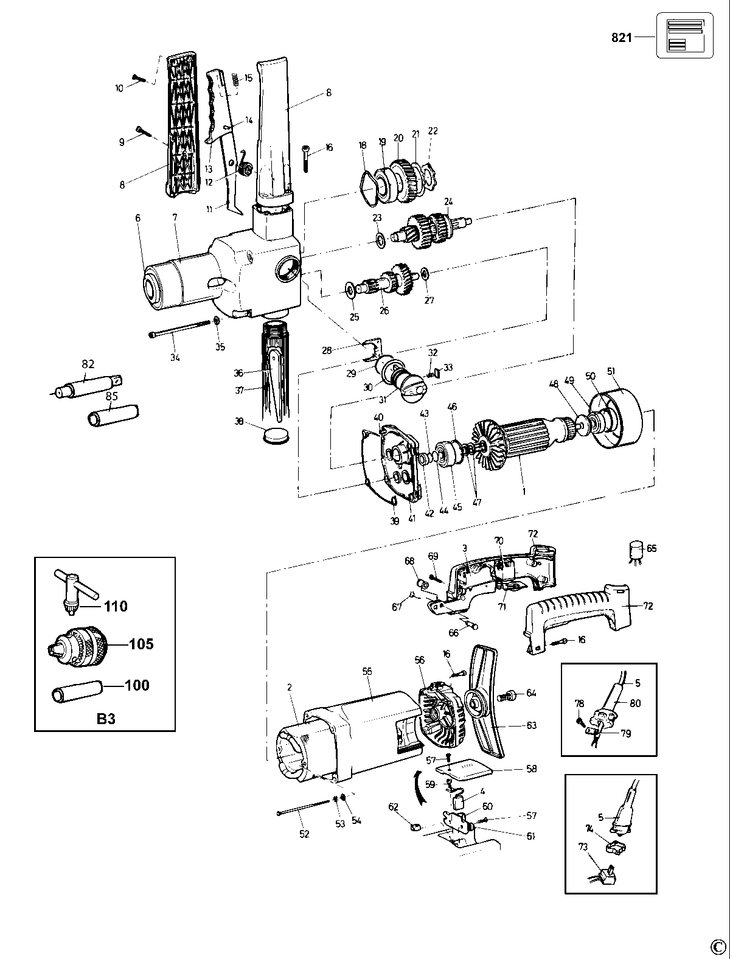

DW152 DRILL Type 1
[DW152 Type 1]
DW152 DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE BM230V 932484 (868404-00) 129966 RON
1 1 1 SA ARMATURE V115 (868404-01) 129966 RON
2 1 1 STATOR BM (868503-02) 9736 RON
2 1 1 BM STATOR V.115 (868503-01) 9736 RON
3 1 1 SWITCH 1263.1301-00 (932401-00) 28296 RON
4 1 2 BRUSH (932497-00) 2347 RON
4 1 2 BRUSH (932497-00) 2347 RON
5 1 1 CABLE & PLUG (949770-15) 20467 RON
5 1 1 CABLE & PLUG (949770-29) 25164 RON
6 1 1 CHUCK SPINDLE (932300-00) 53015 RON
7 1 1 SA Gear Case (932418-00) 202891 RON
8 1 1 SA HANDLE (935833-01) 15993 RON
9 1 1 SELF TAPPING SCREW (949896-14) 558 RON
10 1 2 SELF TAPPING SCREW (949896-13) 558 RON
11 1 1 SWITCH LEVER (932315-00) 2347 RON
12 1 1 SPRING (932313-00) 3018 RON
13 1 1 COVER (932317-00) 4137 RON
14 1 1 PIN (932314-00) 2795 RON
15 1 1 SPRING (931013-00) 893 RON
16 1 6 SCREW SOCKET M.6X30 UNI 5931 (860093-11) 558 RON
18 1 1 CIRCLIPS (930614) 558 RON
19 1 1 BEARING (930025-00) 4472 RON
20 1 1 WHEEL (932428-00) 1891 RON
21 1 1 WASHER (932297-00) 558 RON
22 1 1 RING (932299-00) 4137 RON
23 1 1 WASHER (932287-00) 105 RON
24 1 1 SLOTTED SHAFT (869219-00) 74937 RON
25 1 1 WASHER (932286-00) 2124 RON
26 1 1 SA GEAR (869219-02) 62298 RON
27 1 2 WASHER (932285-00) 2347 RON
28 1 1 PLATE (932288-00) 781 RON
29 1 1 NOISE SUPPRESSOR GASKET (930039) Indisponibil Indisponibil
30 1 1 WASHER (932289-00) 558 RON
31 1 1 SA TRANSMISSION LEVER (932265-00) 15993 RON
32 1 1 TRANSMISSION SPRING (932290-00) 558 RON
33 1 1 SPRING (932291-00) 1788 RON
34 1 4 SCREW (932408-00) 1117 RON
35 1 4 TOOTHED WASHER (931429-00) 558 RON
36 1 1 EXTRACTOR (932304-00) 6821 RON
37 1 1 TUBE WITH CAP P17 (948539-01) 7940 RON
38 1 1 PLUG (932308-01) 781 RON
39 1 2 GASKET (932312-00) 558 RON
40 1 2 ROLLER (932301-00) 558 RON
41 1 1 SHUTTER (943963-00) 45297 RON
42 1 1 GREASE GASKET (932311-00) 3466 RON
43 1 1 RING (931052-00) 558 RON
44 1 1 STOP RING (930940-00) 558 RON
45 1 1 BEARING BALL 6201-2RSH/C3LHT23 (868768-05) 4137 RON
46 1 1 STOP RING (949729-02) 558 RON
47 1 2 WASHER (932309-00) 558 RON
48 1 1 DISTANCIAL (930073-00) 781 RON
49 1 1 BEARING 6000-2RSLTN9/C3LHT23 (868768-00) 3018 RON
50 1 1 BEARING SHEATHING (934409-00) 558 RON
51 1 1 BAFFLE (930072-00) 190 RON
52 1 2 SCREW (930246-00) 781 RON
53 1 2 TOOTHED WASHER D.5 (761035-00) 558 RON
54 1 2 WASHER (949876-08) 558 RON
55 1 1 HOUSING (932261-00) 5484 RON
56 1 1 CALOTTE (932272-02) 10512 RON
57 1 6 SCREW (930251-01) 558 RON
58 1 2 BRUSH COVER DW152-3 (932306-02) 893 RON
59 1 1 SELF TAPPING FLAT F.HD.SCREW (930242-00) 558 RON
60 1 2 BRUSH HOLDER SA (930269-00) 2124 RON
61 1 2 SPRING (930099-00) 558 RON
62 1 2 BLOCK (932307-00) 558 RON
63 1 1 FRONT PIECE (932320-00) 4472 RON
64 1 6 SOCKET HEAD SCREW (932319-00) 893 RON
65 1 1 CAPACITOR 0 15 MF (932476-00) 3018 RON
66 1 1 PIN (932406-00) 2795 RON
67 1 2 SPRING RING (932268-00) 558 RON
68 1 1 ROLLER (932405-00) 3466 RON
69 1 1 SCREW (930079-01) 558 RON
70 1 1 CHANGER 1205.0101-00 (932403-00) 12861 RON
71 1 1 COVER (932402-00) 3466 RON
72 1 1 000000-00 - Indisponibil
72 1 1 SA HANDLE DW152 EURO SERVICE (869395-00) 20467 RON
72 1 1 SA HANDLE DW152 EURO SERVICE (869395-00) 20467 RON
78 1 1 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
78 1 1 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
79 1 1 CORD CLAMP (930103-00) 190 RON
79 1 1 CORD CLAMP (930103-00) 190 RON
80 1 1 SLEEVE (931113-00) 3018 RON
80 1 1 SLEEVE (931113-00) 3018 RON
82 1 1 CHUCK PIVOT M14-1/2 (932573-01) 34336 RON
85 1 1 ADAPTOR M14-1/2 -S21 (861907-00) 6821 RON
821 1 1 NAMEPLATE DW152-GB (N045400) 190 RON
821 1 1 NAMEPLATE DW152-LX (N045401) 2347 RON
