Top » Piese de schimb » PIESE DEWALT » DW1503----J Type 1

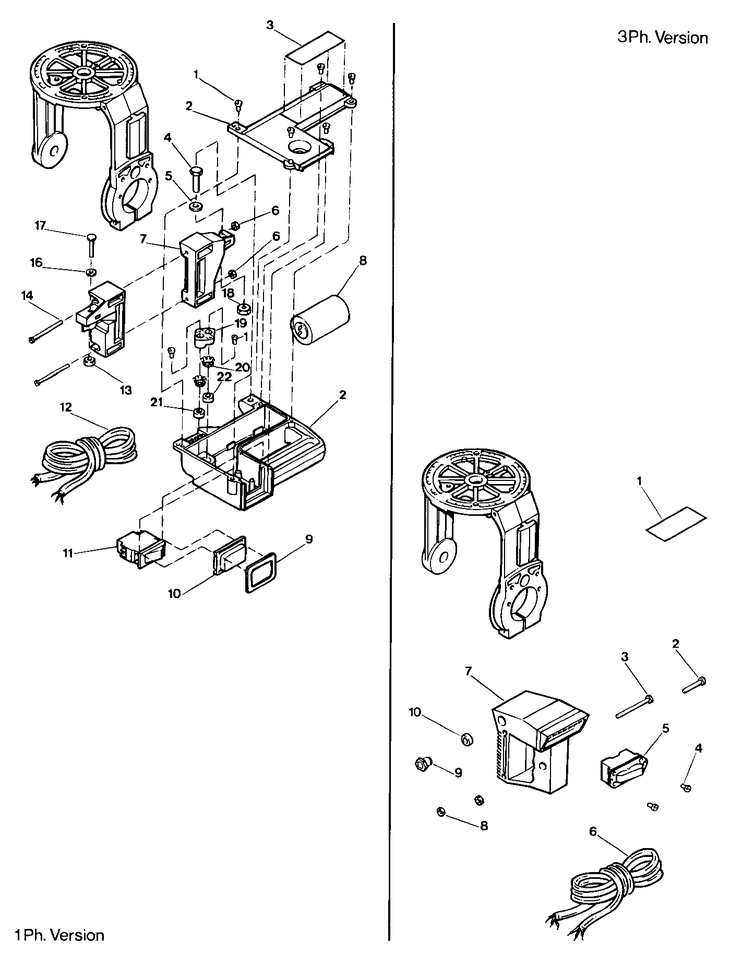

DW1503----J RADIAL ARM SAW Type 1
[DW1503----J Type 1]
DW1503----J RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
1 1 4 SELF TAPPING SCREW 4 2X16 (930076-00) 558 RON
2 1 2 RD.HD.SCREW M.5X25 (949701-12) 558 RON
2 1 1 KIT HANDLE DW720 (868649-00) 15993 RON
3 1 2 SCREW FIL.HD M5X60 UNI 6107 (860089-39) 558 RON
4 1 1 SCREW HEX M.8X30 UNI 5739 (860085-20) 558 RON
4 1 2 000000-00 - Indisponibil
5 1 1 SWITCH 3PH. DW125-111-1370-DW3 (949780-07) 9282 RON
5 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
6 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
6 1 1 000000-00 - Indisponibil
7 1 1 RIGHT ADAPTOR HANDLE (863318-00) 4472 RON
7 1 1 000000-00 - Indisponibil
8 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
8 1 1 CAPACITOR MF.20/400V. (949772-28) 5591 RON
9 1 1 "CLAMP CABLE(NUT)G.3/8 HOLE 12""" (944654-00) 1229 RON
9 1 1 PLATE FOR SWITCH CAP-DW320 (863198-00) 781 RON
10 1 1 CAP FOR SWITCH-DW320 (863849-00) 781 RON
10 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
11 1 1 WEBER SWITCH (861385-04) 62298 RON
12 1 1 000000-00 - Indisponibil
13 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
14 1 2 SOCKET HEAD SCREW (949886-10) 893 RON
15 1 1 LEFT ADAPTOR HANDLE (863319-00) 4472 RON
16 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
17 1 1 SCREW HEX M.6X35 UNI5739 ZINC (860085-17) 558 RON
18 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
19 1 1 CABLE CLIP DW320 (863116-00) 2124 RON
20 1 2 CABLE BLOCKING DW320 (863111-00) 1452 RON
21 1 1 RUBBER PIECE FOR SUPPLY LINE C (863877-00) 781 RON
22 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
