Top » Piese de schimb » PIESE DEWALT » DW130 Type 2

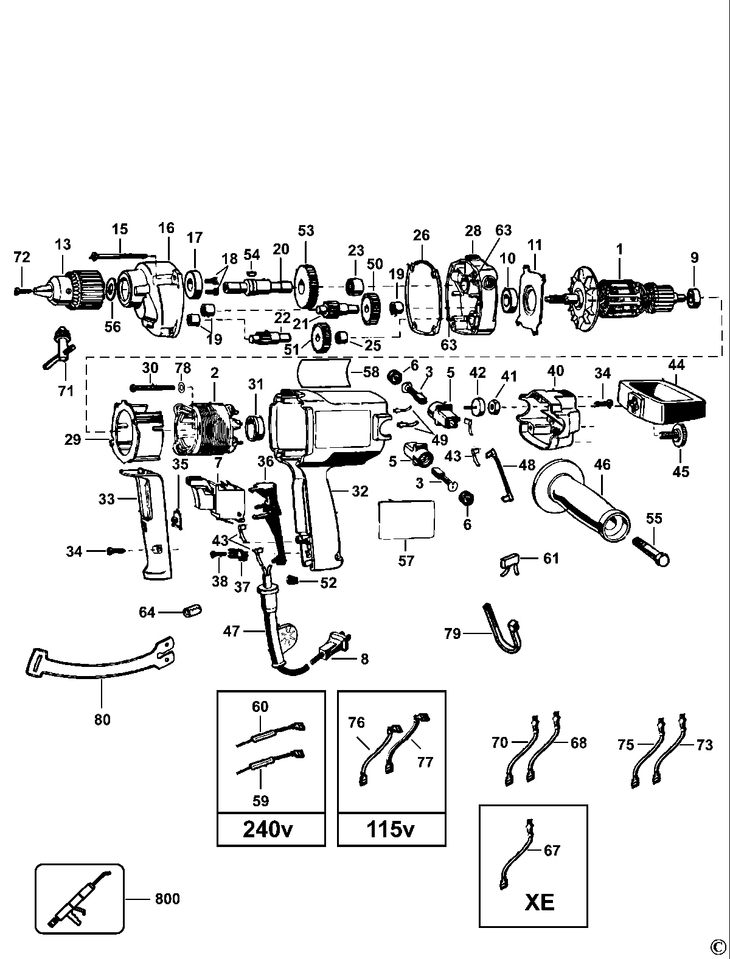

DW130 MIXER Type 2
[DW130 Type 2]
DW130 MIXER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
n 1 1 ARMATURE & FAN (450130-05SV) 34336 RON
1 1 1 ARMATURE (450130-00) 28296 RON
1 1 1 ARMATURE (450130-00) 28296 RON
2 1 1 FIELD DW290 (450379-00) 14315 RON
2 1 1 FIELD (449458-71) 12861 RON
2 1 1 FIELD (449458-71) 12861 RON
3 1 2 BRUSH & SPRING (450374-12) 3018 RON
3 1 2 BRUSH & SPRING (450374-12) 3018 RON
3 1 2 BRUSH & SPRING (450374-12) 3018 RON
5 1 2 BRUSH HOLDER (448083-01) 3466 RON
6 1 2 BRUSH CAP (448084-01) 781 RON
7 1 1 SWITCH (88324-05) 28296 RON
8 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
8 1 1 CORDSET (330061-20) 40599 RON
8 1 1 CORDSET (330061-20) 40599 RON
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING BALL (330003-09) 2795 RON
11 1 1 000000-00 - Indisponibil
13 1 1 5140076-71 - Indisponibil
15 1 4 SCREW PLASTIC THREAD FORM M4 * 57 T20 (330019-30) 558 RON
16 1 1 N209034 - Indisponibil
17 1 1 BEARING DW130 TYPE 2 (700964-00) 4472 RON
18 1 2 SCREW TEMP (52819-00) 558 RON
19 1 3 BEARING NEEDLE (330004-02) 1229 RON
20 1 1 SPINDLE DW130 TYPE 2 (147195-00) 14315 RON
21 1 1 PINION & GEAR DW130 TYPE 2 (449489-00) 12861 RON
22 1 1 GEAR & PINION DW130 TYPE 2 (449486-00) 23598 RON
23 1 1 BEARING (135937-00) 190 RON
25 1 1 BEARING DW130 TYPE 2 (449493-00) 1117 RON
26 1 1 GASKET DW130 TYPE 2 (450485-00) 781 RON
28 1 1 GEARCASE COVER (449483-00) 20467 RON
29 1 1 BAFFLE FAN (447786-00) 781 RON
30 1 2 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
31 1 1 SLEEVE (445217-02) 781 RON
32 1 1 000000-00 - Indisponibil
32 1 1 000000-00 - Indisponibil
32 1 1 000000-00 - Indisponibil
33 1 1 HANDLE & COVER (5140004-80) 1891 RON
33 1 1 HANDLE & COVER (5140004-80) 1891 RON
33 1 1 HANDLE & COVER (5140004-80) 1891 RON
34 1 6 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
36 1 1 000000-00 - Indisponibil
36 1 1 000000-00 - Indisponibil
36 1 1 000000-00 - Indisponibil
37 1 1 CORD CLAMP DW309K (380414-00) 558 RON
38 1 2 Screw M3.5X16 T15 (330019-03) 558 RON
40 1 1 END CAP DW130 TYPE 2 (449492-02) 2347 RON
41 1 1 NUT DW130 (99371-06) 558 RON
42 1 1 cap dw130 type 2 (449700-00) 781 RON
44 1 1 HANDLE (628037-00) 4137 RON
45 1 1 KNOB (382531-00) 7940 RON
46 1 1 HANDLE DW130 TYPE 2 (130814-06) 2795 RON
46 1 1 HANDLE DW130 TYPE 2 (130814-06) 2795 RON
46 1 1 HANDLE DW130 TYPE 2 (130814-06) 2795 RON
47 1 1 CORD PROTECTOR (401751-00) 1788 RON
47 1 1 CORD PROTECTOR (401751-00) 1788 RON
47 1 1 CORD PROTECTOR (401751-00) 1788 RON
50 1 1 000000-00 - Indisponibil
51 1 1 GEAR DW130 TYPE 2 (449487-00) 190 RON
53 1 1 GEAR DW130 TYPE 2 (400147-00) 3018 RON
54 1 1 KEY DW130 TYPE 2 (7027-00) 781 RON
55 1 1 screw dw130 (99173-36) 781 RON
56 1 1 WASHER DW130 TYPE 2 (147196-00) 1229 RON
57 1 1 IDENTITY LABEL (149477-00) 558 RON
57 1 1 IDENTITY LABEL (149477-00) 558 RON
57 1 1 IDENTITY LABEL (149477-00) 558 RON
58 1 1 NAMEPLATE (390216-00) 4472 RON
59 1 1 CHOKE LEAD RED DW290 (146975-00) 10512 RON
60 1 1 CHOKE LEAD RED DW290 (146975-00) 10512 RON
61 1 1 CAPACITOR DW130 TYPE 2 (135107-05) 12861 RON
61 1 1 CAPACITOR DW130 TYPE 2 (135107-05) 12861 RON
61 1 1 CAPACITOR DW130 TYPE 2 (135107-05) 12861 RON
63 1 2 PIN (91286-00) 558 RON
64 1 1 TERMINAL (64787-00) 558 RON
64 1 1 TERMINAL (64787-00) 558 RON
64 1 1 TERMINAL (64787-00) 558 RON
68 1 1 LEAD DW130 TYPE 2 (146957-01) 105 RON
68 1 1 LEAD DW130 TYPE 2 (146957-01) 105 RON
68 1 1 LEAD DW130 TYPE 2 (146957-01) 105 RON
70 1 1 LEAD DW130 TYPE 2 (146957-00) 26730 RON
70 1 1 LEAD DW130 TYPE 2 (146957-00) 26730 RON
70 1 1 LEAD DW130 TYPE 2 (146957-00) 26730 RON
71 1 1 CHUCK KEY (330034-03) 3466 RON
72 1 1 SCREW DW130 TYPE 2 (447735-02) 781 RON
73 1 1 LEAD (146976-00) 26730 RON
73 1 1 LEAD (146976-00) 26730 RON
73 1 1 LEAD (146976-00) 26730 RON
75 1 1 LEAD DW130 TYPE 2 (146956-00) 893 RON
75 1 1 LEAD DW130 TYPE 2 (146956-00) 893 RON
75 1 1 LEAD DW130 TYPE 2 (146956-00) 893 RON
76 1 1 LEAD DW130 TYPE 2 (390449-00) 1117 RON
76 1 1 LEAD DW130 TYPE 2 (390449-00) 1117 RON
77 1 1 LEAD DW130 TYPE 2 (390449-01) 1117 RON
77 1 1 LEAD DW130 TYPE 2 (390449-01) 1117 RON
78 1 1 WASHER (98197-03) 558 RON
78 1 1 WASHER (98197-03) 558 RON
78 1 1 WASHER (98197-03) 558 RON
79 1 1 clamp dw744 (71025-00) 558 RON
79 1 1 clamp dw744 (71025-00) 558 RON
79 1 1 clamp dw744 (71025-00) 558 RON
800 1 1 GREASE (429698-00) 62298 RON
