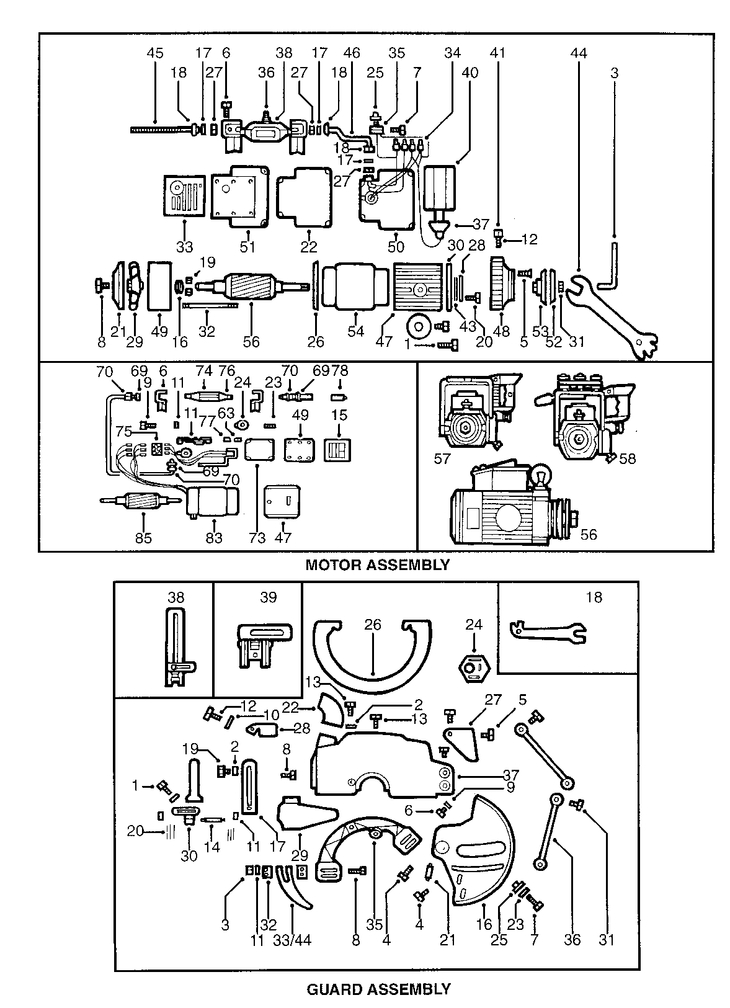

DW125-----C RADIAL ARM SAW Type 1
[DW125-----C Type 1]
DW125-----C RADIAL ARM SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SOCKET HEAD SCREW (760219-00) 558 RON
1 1 1 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
2 1 1 SCREW SET M.5X10 UNI 5929 (860088-25) 558 RON
2 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
3 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
3 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
4 1 1 SCREW M5X10 (249412-20) 558 RON
4 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
5 1 1 SCREW FLAT HD M.4X25 UNI 6109 (860538-00) 558 RON
5 1 3 SCREW FILL.HD M.5X8 UNI6107 (760273-00) 558 RON
6 1 2 SCREW M5X10 (760998-00) 558 RON
6 1 1 000000-00 - Indisponibil
7 1 1 SCREW FIL.HD M.4X10 UNI6107 Z (860089-25) 558 RON
7 1 1 SCREW FLAT FILL.HD.M6X20 UNI61 (941518-00) 558 RON
8 1 1 SCREW M5X10 (760998-00) 558 RON
8 1 1 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
9 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
9 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
10 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
11 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
11 1 5 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
12 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
12 1 1 KNOB (861842-01) 1229 RON
13 1 1 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
14 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
15 1 1 SPACER / DUST PROTECTOR EUROGU (863703-00) 1452 RON
15 1 1 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
16 1 1 OUTER PROTECTION EUROG.DW1250 (862417-00) 4137 RON
16 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
17 1 1 000000-00 - Indisponibil
17 1 1 KICK-UP SUPPORT FOR EUROGUARD (863709-00) 2795 RON
18 1 1 JAM NUT FOR CABLE INLET 3/8 (949747-07) 781 RON
19 1 1 KNOB (946469-00) 781 RON
19 1 1 BEARING 6202 (868768-07) 4137 RON
20 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
20 1 8 KICK-UP FINGERS DW125-111-137 (864013-00) 558 RON
21 1 1 MOTOR GUARD 8001/3 (860687-03) 4137 RON
21 1 2 SLIDING ROLLER EUROG.D.250-300 (864054-00) 1229 RON
22 1 1 DUST SPOUT EUROG.D.250-300-350 (864095-00) 3466 RON
22 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
23 1 3 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
23 1 1 GASKET EARTH SCREW (944653-00) 190 RON
24 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
24 1 1 000000-00 - Indisponibil
25 1 1 FRONT PROTECT.GUIDE BUSHING (863705-00) 1117 RON
25 1 1 GASKET FOR OVERLOAD THRM (860133-00) 1788 RON
26 1 1 REAR PROTECTION (863706-01) 7940 RON
26 1 1 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
27 1 1 GUIDE SQUARE (863707-01) 3466 RON
27 1 1 RUBBER PIECE FOR SUPPLY LINE C (863877-00) 781 RON
28 1 1 ROTATING SQUARE (863708-00) 1788 RON
28 1 1 GASKET FOR INTERNAL MOTOR FLAN (863878-00) 893 RON
29 1 1 FAN MOTOR D84-D15 DW125-1150 (860688-00) 5591 RON
29 1 1 GUIDE SQUARE (863775-01) 3466 RON
30 1 1 KICK BACK SPRING-GUARD D.300 (945632-90) 3466 RON
30 1 1 SUPPORT SCREW DW125-111-1370 (864058-00) 4137 RON
31 1 4 WASHER FOR LEVER EUROG.250-300 (864053-00) 2124 RON
31 1 1 NUT ARBOR M.16X1.5 LH (860126-01) 5591 RON
32 1 1 30/10 RIVING KNIFE PLATE (864086-00) 105 RON
32 1 1 000000-00 - Indisponibil
33 1 1 000000-00 - Indisponibil
33 1 1 000000-00 - Indisponibil
34 1 1 000000-00 - Indisponibil
34 1 1 000000-00 - Indisponibil
35 1 1 000000-00 - Indisponibil
35 1 1 KNIFE HOLDER EUR. D.250 (862083-00) 14315 RON
36 1 1 LEVER (862084-01) 3018 RON
36 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
37 1 1 GUARD (862235-04) 26730 RON
38 1 1 000000-00 - Indisponibil
38 1 1 SWITCH BREMAS 2 POLES A422 N3 (860706-00) 39145 RON
39 1 1 COMPLETE KICK-UP ASSEMBLY EURO (864814-01) 20467 RON
39 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
40 1 1 GUARD SA (869322-00) 153454 RON
40 1 1 000000-00 - Indisponibil
41 1 1 NUT END HANDLE M.8X22 (860143-00) 1788 RON
42 1 1 000000-00 - Indisponibil
43 1 1 INNER MOTOR FLANGE (123302-01) 2795 RON
44 1 1 000000-00 - Indisponibil
45 1 1 000000-00 - Indisponibil
46 1 1 000000-00 - Indisponibil
47 1 1 000000-00 - Indisponibil
48 1 1 ARBOR END BELL DW1251-3 (862162-00) 12861 RON
49 1 1 BELL REAR END MTR DW125 CAST (860701-00) 12861 RON
50 1 1 000000-00 - Indisponibil
51 1 1 000000-00 - Indisponibil
52 1 1 000000-00 - Indisponibil
53 1 1 000000-00 - Indisponibil
54 1 1 000000-00 - Indisponibil
56 1 1 000000-00 - Indisponibil
57 1 1 000000-00 - Indisponibil
58 1 1 000000-00 - Indisponibil
59 1 1 000000-00 - Indisponibil
60 1 1 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
61 1 1 SCREW FIL.HD M.4X10 UNI6107 Z (860089-25) 558 RON
62 1 1 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
64 1 1 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
65 1 1 WASHER SPRING CON.D4.2X10X0.6 (860074-00) 558 RON
66 1 1 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
67 1 1 000000-00 - Indisponibil
68 1 1 "CLAMP CABLE(NUT)G.3/8 HOLE 12""" (944654-00) 1229 RON
69 1 1 000000-00 - Indisponibil
70 1 1 BUSHING CABLE D.10XD.14X5 (944590-00) 781 RON
71 1 1 GASKET EARTH SCREW (944653-00) 190 RON
72 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
73 1 1 GASKET MOTOR BOX DW 125 (860708-00) 2124 RON
74 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
75 1 1 CONNECTION PLATE FOR POWER-SHO (946085-00) 4137 RON
76 1 1 SWITCH 3PH. DW125-111-1370-DW3 (949780-07) 9282 RON
77 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
78 1 1 000000-00 - Indisponibil
79 1 1 000000-00 - Indisponibil
80 1 1 000000-00 - Indisponibil
81 1 1 000000-00 - Indisponibil
82 1 1 000000-00 - Indisponibil
83 1 1 000000-00 - Indisponibil
84 1 1 000000-00 - Indisponibil
85 1 1 000000-00 - Indisponibil
