Top » Piese de schimb » PIESE DEWALT » DW1201----C Type 1

DW1201----C RADIAL ARM SAW Type 1
[DW1201----C Type 1]
DW1201----C RADIAL ARM SAW Type 1

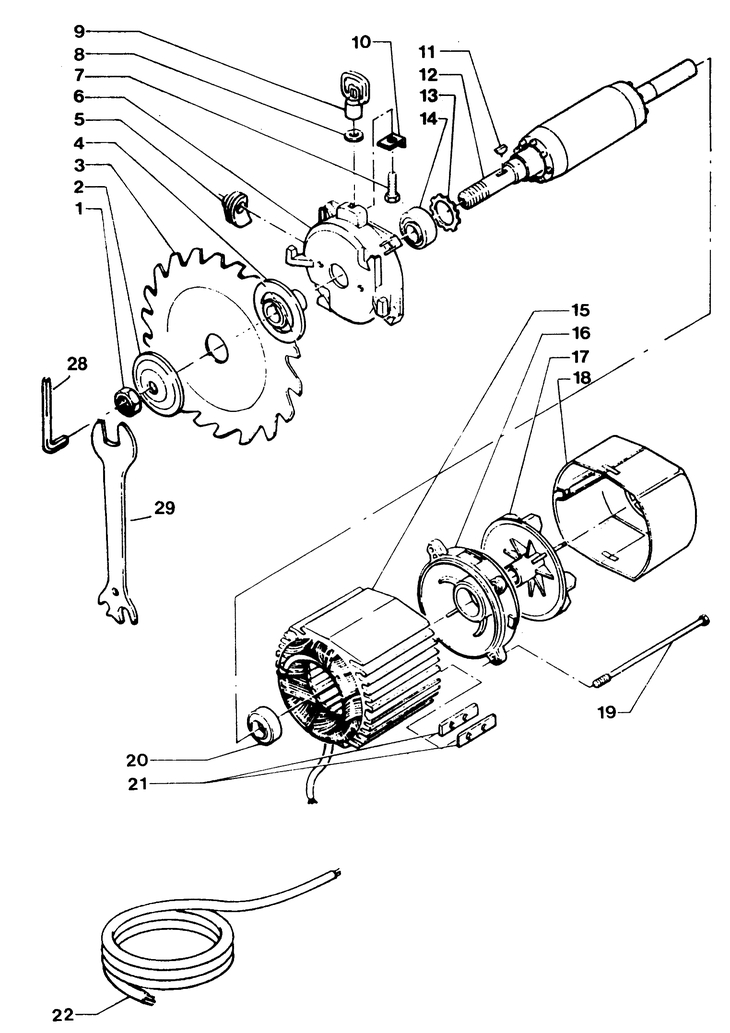

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NUT ARBOR M.16X1.5 LH (860126-01) 5591 RON
2 1 1 FLANGE DW320 (861241-00) 190 RON
4 1 1 INNER FLANGE DW320 (863266-00) 9282 RON
5 1 1 BUSHING CABLE MOTOR DW 320 (860447-00) 4137 RON
6 1 1 BELL FRONT END MTR DW320 CAST (860808-00) 1891 RON
7 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
8 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
9 1 1 NUT END HANDLE M.8X22 (860143-00) 1788 RON
10 1 1 PLATE RETAINING SCREWS M8 (860807-00) 893 RON
11 1 1 KEY WOODRUFF 4X5 UNI 6606 (860318-01) 781 RON
12 1 1 000000-00 - Indisponibil
13 1 1 RING SPRING S.LOCK HOLE ZJ-40 (860806-00) 893 RON
14 1 1 BEARING (930566) 3466 RON
15 1 1 000000-00 - Indisponibil
16 1 1 BELL REAR END MOTOR DW 250 (860443-00) 4472 RON
17 1 1 FAN MOTOR D.106XD.15 DW 250 (860444-00) 2347 RON
18 1 1 COVER FAN MOTOR DW 250 (860445-00) 3466 RON
19 1 4 MOTOR TIE ROD-DW320 (863015-00) 781 RON
20 1 1 BEARING 6202 (868768-07) 4137 RON
21 1 2 MOTOR FIXING PLATE-DW320 (863010-00) 190 RON
22 1 1 000000-00 - Indisponibil
23 1 1 000000-00 - Indisponibil
24 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
26 1 1 CONNETTORE CORNER OK 67904 (860540-00) 781 RON
27 1 2 SCREW PAN.PHAB 4.2X9.5UNI6954 (860084-03) 558 RON
28 1 1 WRENCH HEX 8 UNI 6753 (860098-05) 190 RON
29 1 1 000000-00 - Indisponibil
