DW1161 PLANER THICKNESSER Type 2
[DW1161 Type 2]
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
Imagini suplimentare
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
DW1161 PLANER THICKNESSER Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara

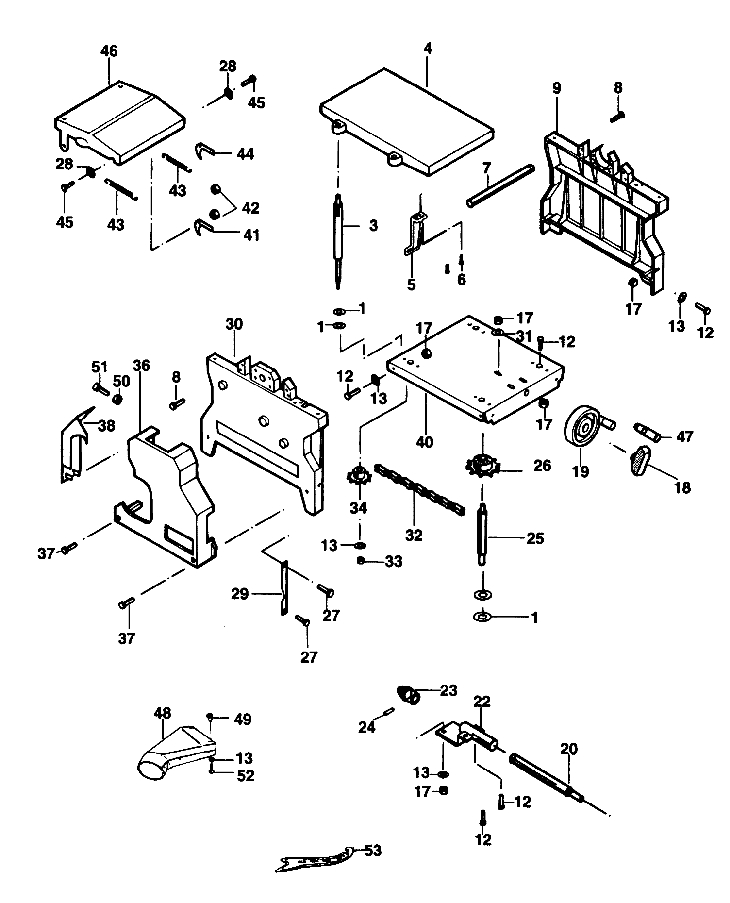

1 1 10 WASHER SHIM 10X29X0 2 (860226-03) 781 RON
5 1 99 POINTER THICK.DW1160 (123293-03) 2124 RON
6 1 2 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
7 1 1 ROD AKB THICKNESSINNG DW 1150 (123211-00) 3466 RON
8 1 2 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
12 1 14 SCREW HEX M.8X16 UNI 5739 (860085-04) 558 RON
17 1 16 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
19 1 1 HANDLE SA (946474-00) 4472 RON
20 1 1 ELEV.SHAFT+PINION (866089-01) 1891 RON
22 1 1 S.A.SUPPORT HANDWHEEL DW1150 (123283-01) 15993 RON
23 1 1 ELEV.SHAFT+PINION (866089-01) 1891 RON
24 1 1 PIN SPIRAL 3X14 UNI 6875 (760233-00) 558 RON
25 1 1 000000-00 - Indisponibil
26 1 1 GEAR BEVEL+SPROCKET DW 1150 (860585-00) 1788 RON
27 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
28 1 2 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
29 1 1 GRAD.SCALE FOR THICKNISSING D (863662-00) 105 RON
31 1 3 PLAIN WASHER D.27XD.9X2 5 (949876-05) 558 RON
32 1 1 000000-00 - Indisponibil
33 1 4 NUT ELAST.STOP M.8 UNI 7473 (860092-01) 558 RON
34 1 4 000000-00 - Indisponibil
36 1 1 SHROUD FIXED DW 1150 (123215-00) 6821 RON
37 1 2 SCREW M5X10 (760998-00) 558 RON
38 1 1 SHROUD MOBILE DW 1150 (123216-00) 3466 RON
41 1 1 000000-00 - Indisponibil
42 1 2 NUT HEX THICK M.4 UNI 5587 (860083-01) 558 RON
43 1 2 SPRING EXT.THICKN.GUARDDW1150 (123203-00) 2347 RON
44 1 1 HOOK LEFT-PROTECTION DW1150 (123263-01) 1229 RON
45 1 2 SCREW FIL.HD M.4X10 UNI6107 Z (860089-25) 558 RON
46 1 1 GUARD THICKNESS DW1150-BLACK (123269-02) 23598 RON
47 1 1 HANDLE ROTATING BLACK EPT1900 (860263-00) 1117 RON

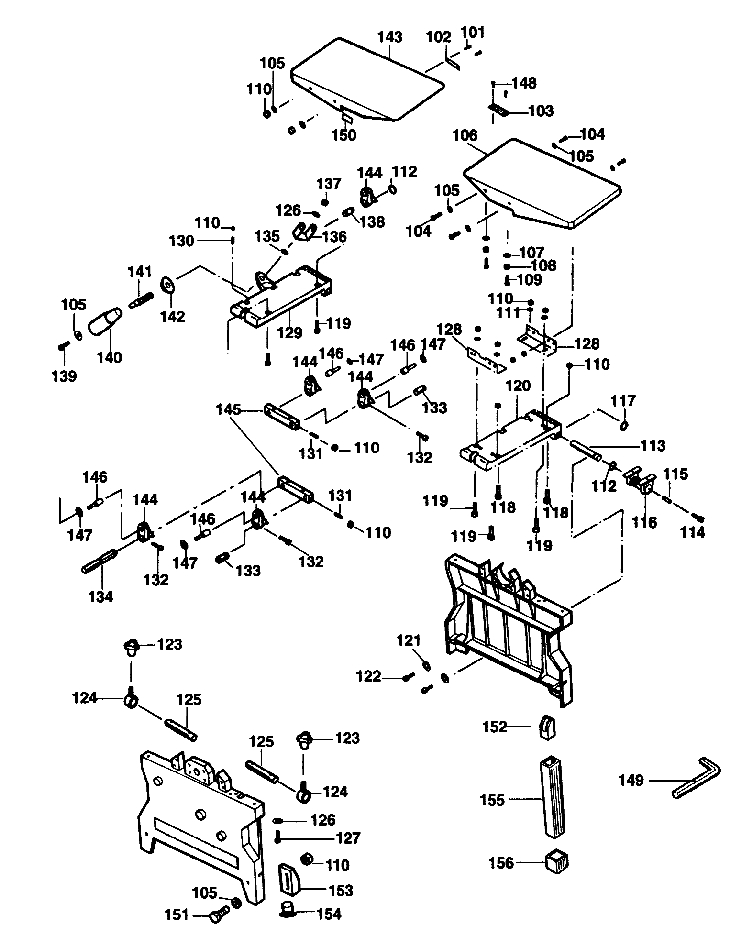

101 1 2 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
102 1 1 000000-00 - Indisponibil
103 1 1 GRADUATED SCALE (32357) 14315 RON
104 1 4 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
105 1 13 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
107 1 4 NUT HEX THIN M.5 UNI 5589 (860083-18) 558 RON
108 1 4 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
109 1 4 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
110 1 26 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
111 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
112 1 4 RING SPRING SHAFT D14 UNI7435 (860079-04) 558 RON
113 1 2 PIN HINGE DW1150 (863647-00) 7940 RON
114 1 2 SCREW SOCKET M.6X30 UNI 5931 (860093-11) 558 RON
115 1 2 SPRING PUSHER D9XD1X22 (123255-00) 558 RON
116 1 2 TABLE LOCKING DEVICE DW1150 (863414-00) 1788 RON
117 1 3 BEARING SPACER - INDUSTR.4HP-6 (863971-00) 781 RON
118 1 2 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
119 1 8 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
121 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
122 1 4 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
123 1 2 KNOB (865405-01) 2795 RON
124 1 2 SCREW WITH EYE TABLE DW 1150 (123291-00) 1788 RON
125 1 2 PIN DW1150 (123290-01) 4137 RON
126 1 5 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
127 1 4 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
128 1 2 CLAMP SQUARE (123296-01) 2347 RON
130 1 4 000000-00 - Indisponibil
131 1 4 SOCKET SCREW TYPE-E (949853-07) 105 RON
132 1 5 SOCKET HEAD SCREW (949886-11) 558 RON
133 1 2 PIN D.14X30 DW1150 (863289-00) 781 RON
134 1 1 CONNECTING ROD BAR (123275-01) 4137 RON
135 1 1 SPRING WASHER D.8 (942049-00) 558 RON
136 1 1 TABLE ADJUSTING YOKE (863656-00) 5591 RON
137 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
138 1 1 PIVOT FOR TABLE ADJUST.DW1150 (123295-00) 1452 RON
139 1 1 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
141 1 1 PIN FOR TABLE ADJ.HANDLE DW50- (863660-00) 5591 RON
142 1 1 KNOB PLANING ADJ.LOCK DW 1150 (123227-00) 3018 RON
144 1 5 ECCENTRIC CONNECTION DW50-55 (863653-00) 2124 RON
145 1 2 BAR SUPPORT FOR CONNECTING ROD (123274-01) 10512 RON
146 1 4 PIN D.14X15-M8X21 DW1150 (863218-00) 190 RON
147 1 4 BEARING PLATE DW50 (863702-00) 781 RON
148 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
149 1 1 WRENCH HEX 6 UNI 6753 (860098-04) 781 RON
151 1 4 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
152 1 2 BRACKET LH (860393-03) 2124 RON
153 1 2 000000-00 - Indisponibil
154 1 4 BUMPER D.16X10 BLACK (860429-00) 893 RON
155 1 4 LEG 30X30X477 BLACK EPT1900DW (860387-00) 5591 RON
156 1 4 FOOT 30X30 STAND BLACK EPT-DW (860392-00) 1117 RON

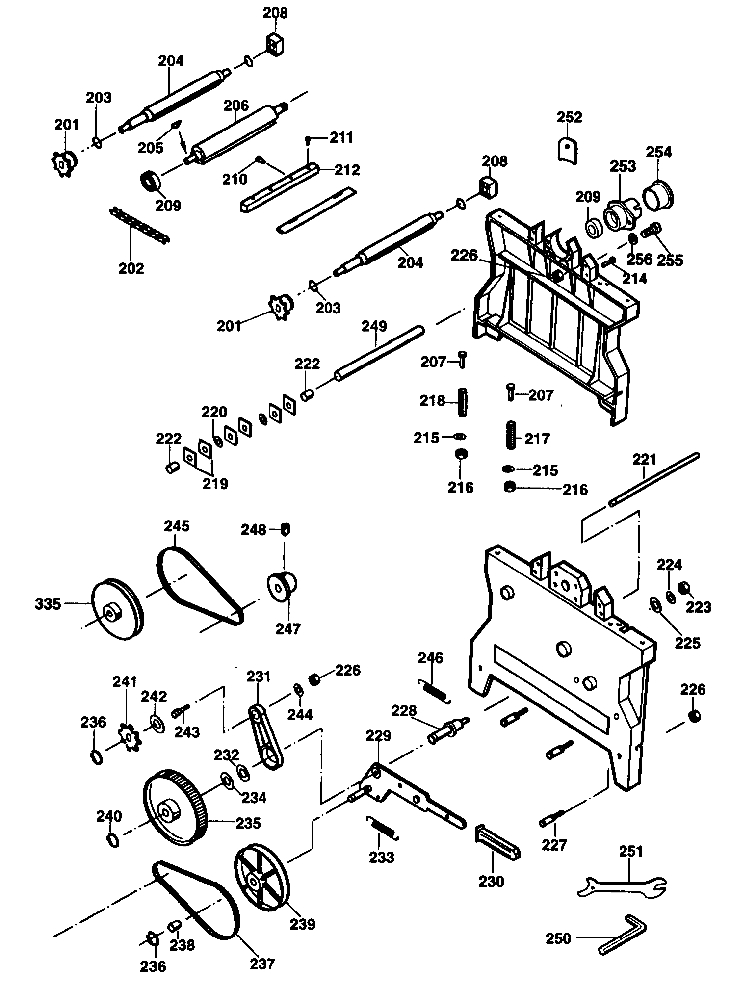

201 1 2 WHEEL SPROCKET DRAGGINGDW1150 (123286-00) 1788 RON
202 1 1 000000-00 - Indisponibil
203 1 4 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
204 1 2 ROLLER (123281-02) 25164 RON
205 1 1 KEY WOODRUFF 5X6.5 UNI 6606 (860318-00) 893 RON
207 1 4 SCREW (942043-00) 781 RON
208 1 4 BLOCKS FOR DRAGGING ROLLER DW (863658-00) 1452 RON
209 1 2 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
210 1 4 KNIFE ADJ. SCREW DW50-55 (863644-00) 2347 RON
211 1 8 SCREW (949703-04) 558 RON
212 1 2 WEDGE CLAMP L.260 DW 1150 (123266-00) 23598 RON
214 1 4 SCREW SOCKET M.6X25 UNI 5931 (860093-06) 558 RON
215 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
216 1 4 CAP NUT M8DIN917 (941563-00) 893 RON
217 1 2 SPRING 1 DRAGGING ROLL.DW1150 (123232-00) 1117 RON
218 1 2 SPRING 2 DRAGGING ROLL.DW1150 (123233-00) 1117 RON
219 1 49 PAWL AKB THICKNESSING DW 1150 (123210-00) 781 RON
220 1 25 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
221 1 1 000000-00 - Indisponibil
222 1 2 SPACER GUARD COUPLING DW 1150 (123264-00) 893 RON
223 1 1 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
224 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
225 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
226 1 6 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
227 1 3 ROD SPRING COUPLING DW 1150 (123298-00) 893 RON
228 1 1 PIVOT FOR LEVER GEAR DW 1150 (123287-00) 5591 RON
229 1 1 SA LEVER FEED CONTROL DW 1150 (123318-00) 1891 RON
231 1 1 LEVER CHAIN STRETCHER DW 1150 (123228-00) 2347 RON
232 1 1 BEARING PLATE DW50 (863807-00) 781 RON
233 1 1 SPRING EXT.D.2XD.14X78 (860331-00) 781 RON
234 1 1 WASHER FLAT 15X28X2.5 UNI6592 (860073-10) 558 RON
235 1 1 GEAR + SPROCKET DW1150 (123218-00) 5591 RON
236 1 2 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
237 1 1 BELT V Y 6X4X500 I.L. (123246-00) 9282 RON
238 1 2 BUSHING SPROCKET DW 1150 (123219-00) 2795 RON
239 1 1 PULLEY FLAT+GEAR DW1150 MACH. (123316-00) 7940 RON
240 1 1 RING SPRING SHAFT D14 UNI7435 (860079-04) 558 RON
241 1 1 WHEEL CHAIN STRETCHER DW 1150 (123240-00) 105 RON
242 1 1 BEARING PLATE DW50 (863702-00) 781 RON
243 1 1 000000-00 - Indisponibil
244 1 1 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
246 1 1 SPRING EXT.CHAIN STRCH DW1150 (123234-00) 1117 RON
247 1 1 PULLEY GROOVED D... SECT. Z (123300-00) 7940 RON
248 1 1 SOCKET SCREW TYPE-E (941880-00) 558 RON
249 1 1 ROD AKB THICKNESSINNG DW 1150 (123211-00) 3466 RON
250 1 1 WRENCH HEX 2.5 UNI 6753 (943271-00) 558 RON
251 1 1 SPANNER 10/13 DW50-55 (949751-07) 190 RON
252 1 1 KNIFE SETTING GAUGE DW50-55 (863648-00) 1788 RON
254 1 1 000000-00 - Indisponibil
255 1 2 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
256 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON

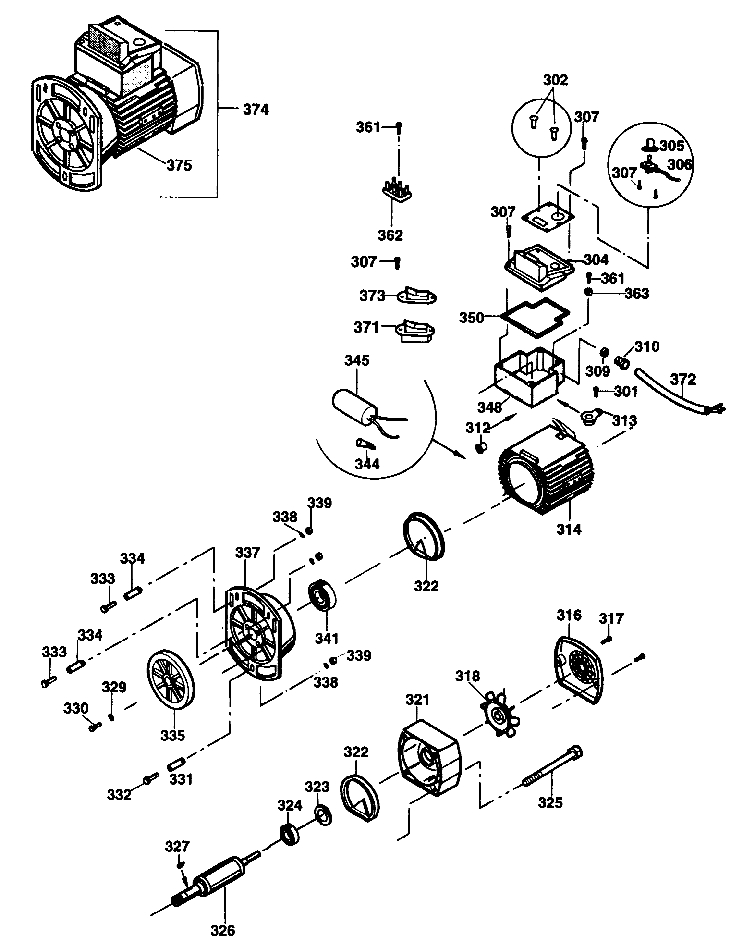

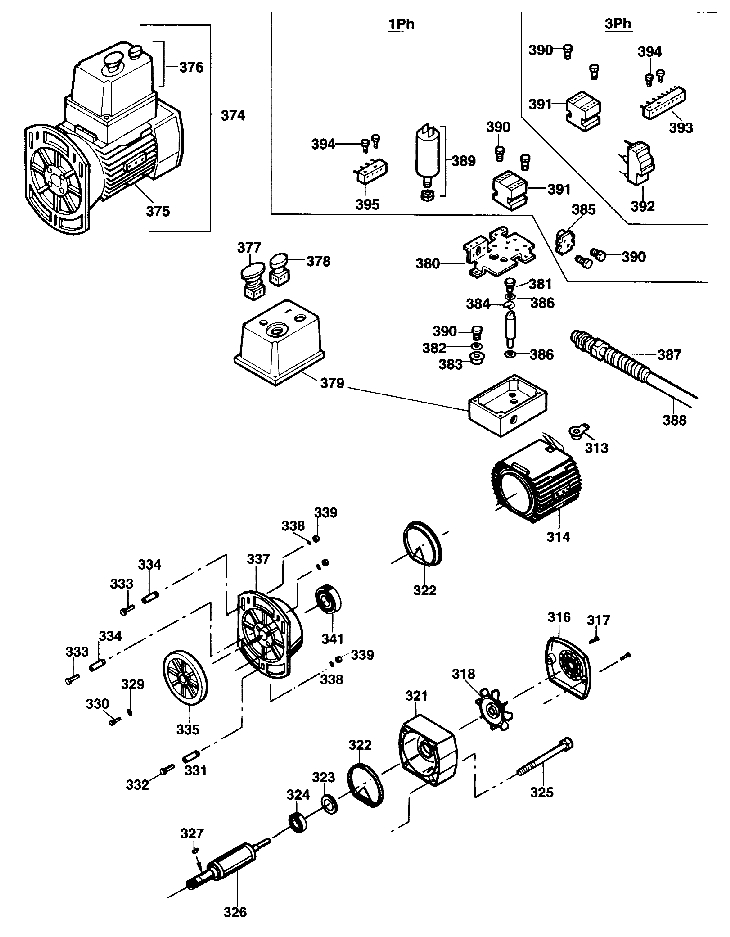

313 1 1 GASKET FOR CABLE DW 1150 (944652-00) 5591 RON
314 1 1 000000-00 - Indisponibil
322 1 2 GASKET FOR MOTOR BELL DW1150 (860718-00) 3018 RON
323 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
324 1 1 BEARING ISO 6202-2RSL (868768-08) 5591 RON
327 1 1 KEY FEATHER A-5X5X16 UNI 6604 (860539-01) 781 RON
329 1 1 WASHER FLAT 6.6X18X2 UNI6593 (860073-14) 558 RON
330 1 1 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
331 1 1 SPACER SHORT FOR MOTOR DW1150 (123294-00) 190 RON
332 1 1 SCREW (942043-00) 781 RON
333 1 2 HEXAGONAL HEAD SCREW (949702-19) 893 RON
334 1 2 SPACER LONG FOR MOTOR DW 1150 (123292-00) 2124 RON
335 1 1 MOTOR PULLEY DW1160 (867441-00) 7940 RON
337 1 1 FRONT CALOTTE DW1150 (860699-02) 12861 RON
338 1 3 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
339 1 3 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
341 1 1 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
374 1 1 000000-00 - Indisponibil
375 1 1 000000-00 - Indisponibil

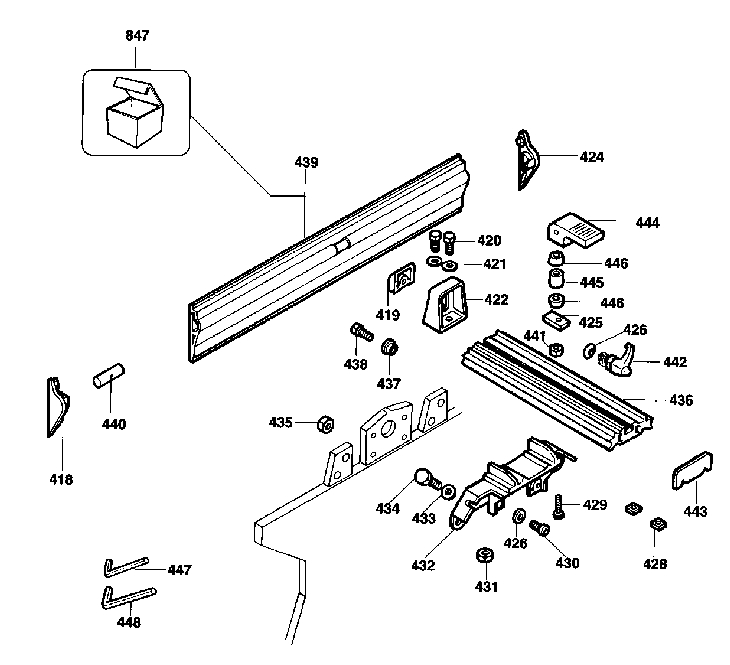

418 1 1 CAP FOR EXTRUDED 860313 RH (860311-00) 781 RON
419 1 1 SPACER FOR PLANING FENCE (860305-00) 2347 RON
420 1 2 SCREW (860085-07) 558 RON
421 1 2 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
422 1 1 BRACKET FOR PLANING FENCE (860306-00) 3466 RON
424 1 1 CAP FOR EXTRUDED 860313 LH (860311-01) 781 RON
425 1 2 GIB 18X55X3 DW1150-EPT1900 (860373-00) 893 RON
426 1 5 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
428 1 2 NUT SQUARE MEAN M.6 UNI 5597 (860310-00) 105 RON
429 1 2 SOCKET HD SCREWM6X45 (943209-00) 781 RON
430 1 4 SCREW SOCKET M.8X30 UNI 5931 (860093-00) 558 RON
431 1 2 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
432 1 1 000000-00 - Indisponibil
433 1 2 WASHER FLAT 5.3X10 UNI 6592 (860073-01) 558 RON
434 1 2 SCREW FIL.HD M.5X16 UNI6107 Z (860089-18) 558 RON
435 1 4 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
436 1 1 FENCE SLIDE DW1150 (862484-00) 9282 RON
436 1 1 FENCE SLIDE DW1150 (862484-00) 9282 RON
437 1 1 INSERT PSM N42 B M.5 (860309-00) 893 RON
438 1 1 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
439 1 1 TABLE FENCE DW 733S (862482-02) 29862 RON
440 1 1 LOCATING PIN (860308-00) 2795 RON
441 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
442 1 1 LEVER (861841-00) 3466 RON
443 1 1 CAP FOR EXTRUDED 860314 (860312-00) 2124 RON
444 1 2 SA LEVER ECCENTRIC 24X85+PIN (860674-00) 5031 RON
445 1 2 SPRING PUR 90SHORE D6XD.16X12 (860394-00) 4137 RON
446 1 4 CAP FOR SPRING D.16XD.6.2 (860365-00) 1452 RON
447 1 1 WRENCH HEX 5 UNI 6753 (930574-00) 781 RON
448 1 1 WRENCH HEX 3 UNI 6753 (938539-00) 781 RON

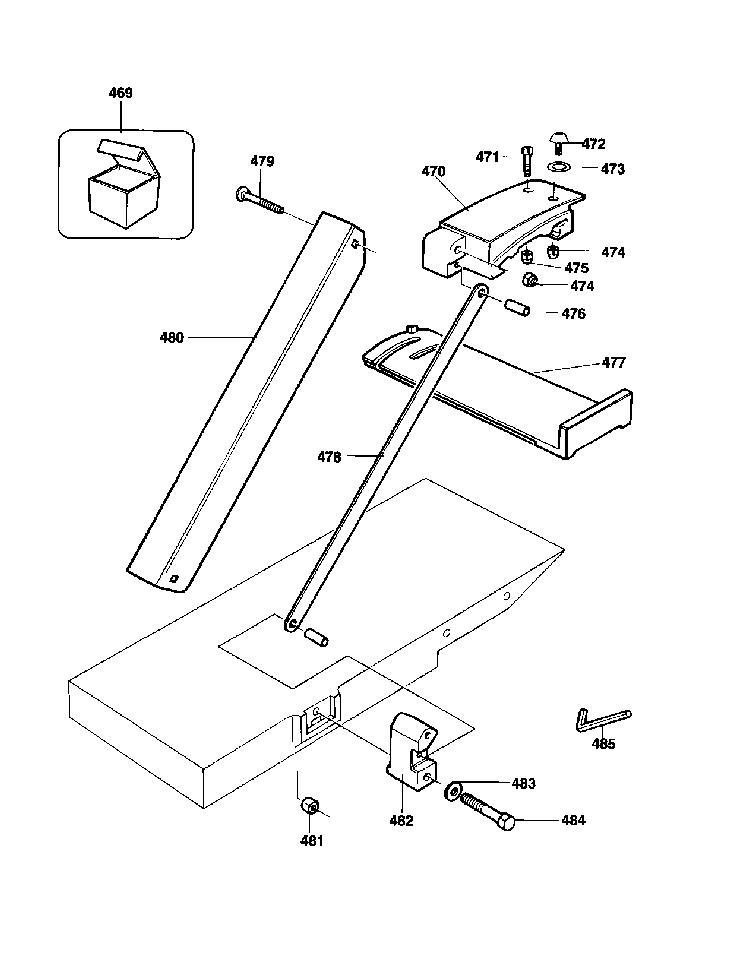

469 1 1 000000-00 - Indisponibil
470 1 1 PROTECT.SUPP.DW1160 (865910-00) 4137 RON
471 1 1 SCREW SOCKET M.5X25 UNI 5931 (860093-08) 558 RON
472 1 1 WING KNOB+SCREW M6X50 (863310-00) 1117 RON
473 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
474 1 3 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
475 1 1 NUT M5 (860092-03) 558 RON
476 1 2 SPRING PIN 5X16 (949867-10) 558 RON
477 1 1 PROTECTION DW1160 (865909-00) 5591 RON
478 1 1 PIVOT (944881-00) 3466 RON
479 1 2 SCREW 6X55 UNI5732 (860301-14) 558 RON
480 1 1 CONNECTION (944880-00) 4472 RON
481 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
482 1 1 EPT BLOCK CE (944877-01) 10512 RON
483 1 1 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
484 1 1 SCREW HEX M.8X60 UNI 5737 (860086-06) 781 RON
485 1 1 WRENCH (949882-01) 781 RON
