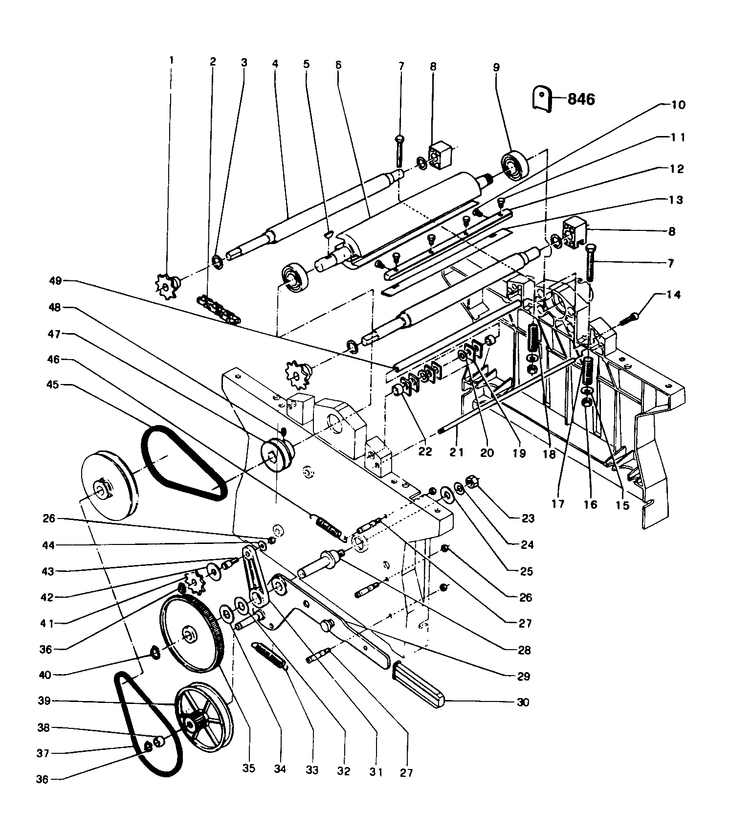

DW1153----K PLANER THICKNESSER Type 1
[DW1153----K Type 1]
DW1153----K PLANER THICKNESSER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 WHEEL SPROCKET DRAGGINGDW1150 (123286-00) 1788 RON
2 1 1 000000-00 - Indisponibil
3 1 1 WASHER-SHIM 16X23.5X1 (860226-02) 558 RON
4 1 2 ROLLER (123281-02) 25164 RON
5 1 1 KEY WOODRUFF 5X6.5 UNI 6606 (860318-00) 893 RON
6 1 1 CUTTER BLOCK ASS.-DW1150 (865513-00) 244723 RON
7 1 2 SCREW (942043-00) 781 RON
8 1 4 BLOCKS FOR DRAGGING ROLLER DW (863658-00) 1452 RON
9 1 2 BEARING BALL ISO 6204-2RSL (868768-10) 6821 RON
10 1 4 KNIFE ADJ. SCREW DW50-55 (863644-00) 2347 RON
11 1 8 SCREW (949703-04) 558 RON
12 1 2 WEDGE CLAMP L.260 DW 1150 (123266-00) 23598 RON
14 1 2 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
15 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
16 1 4 CAP NUT M8DIN917 (941563-00) 893 RON
17 1 2 SPRING 1 DRAGGING ROLL.DW1150 (123232-00) 1117 RON
18 1 2 SPRING 2 DRAGGING ROLL.DW1150 (123233-00) 1117 RON
19 1 6 PAWL AKB THICKNESSING DW 1150 (123210-00) 781 RON
20 1 2 WASHER FLAT 10.5X21 UNI6592 Z (860073-04) 558 RON
21 1 1 ROD AKB STOP DW 1150 (123212-00) 2795 RON
22 1 2 SPACER GUARD COUPLING DW 1150 (123264-00) 893 RON
23 1 1 NUT HEX THICK M.10 UNI 5587 (860083-05) 558 RON
24 1 1 WASHER SPRING CON.10.2X22X1.2 (860074-04) 558 RON
25 1 1 WASHER SPRING CON.12.2X28X1.5 (860074-05) 781 RON
26 1 2 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
27 1 2 ROD SPRING COUPLING DW 1150 (123298-00) 893 RON
28 1 1 PIVOT FOR LEVER GEAR DW 1150 (123287-00) 5591 RON
29 1 1 SA LEVER FEED CONTROL DW 1150 (123318-00) 1891 RON
30 1 1 HANDLE(SLOT 3.5X26)BLACK (860367-00) 893 RON
31 1 1 LEVER CHAIN STRETCHER DW 1150 (123228-00) 2347 RON
32 1 1 BEARING PLATE DW50 (863807-00) 781 RON
33 1 1 SPRING EXT.D.2XD.14X78 (860331-00) 781 RON
34 1 1 WASHER FLAT 15X28X2.5 UNI6592 (860073-10) 558 RON
35 1 1 GEAR + SPROCKET DW1150 (123218-00) 5591 RON
36 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
37 1 1 BELT V Y 6X4X500 I.L. (123246-00) 9282 RON
38 1 1 BUSHING SPROCKET DW 1150 (123219-00) 2795 RON
39 1 1 PULLEY FLAT+GEAR DW1150 MACH. (123316-00) 7940 RON
40 1 1 RING SPRING SHAFT D14 UNI7435 (860079-04) 558 RON
41 1 1 WHEEL CHAIN STRETCHER DW 1150 (123240-00) 105 RON
42 1 1 BEARING PLATE DW50 (863702-00) 781 RON
43 1 1 000000-00 - Indisponibil
44 1 1 WASHER FLAT SPEC. 6.4X16X1.5 (860075-00) 558 RON
45 1 1 000000-00 - Indisponibil
46 1 1 SPRING EXT.CHAIN STRCH DW1150 (123234-00) 1117 RON
47 1 1 PULLEY GROOVED D... SECT. Z (123300-00) 7940 RON
48 1 1 SOCKET SCREW TYPE-E (941880-00) 558 RON
49 1 1 ROD AKB THICKNESSINNG DW 1150 (123211-00) 3466 RON
846 1 1 KNIFE SETTING GAUGE DW50-55 (863648-00) 1788 RON
