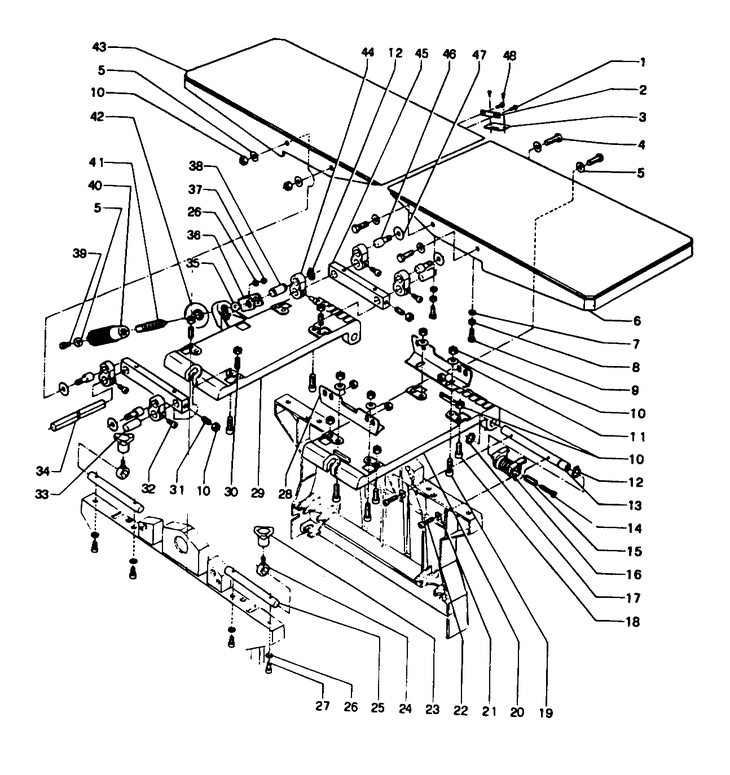

DW1153----B PLANER THICKNESSER Type 1
[DW1153----B Type 1]
DW1153----B PLANER THICKNESSER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW PAN PH A M4X8 DIN 7516 (860238-04) 781 RON
2 1 1 000000-00 - Indisponibil
3 1 1 GRADUATED SCALE (32357) 14315 RON
4 1 4 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
5 1 4 WASHER FLAT 8.4X17 UNI6592 ZN (860073-03) 558 RON
6 1 1 PLANER TABLE DW1161 (867461-00) 74937 RON
7 1 4 NUT HEX THIN M.5 UNI 5589 (860083-18) 558 RON
8 1 4 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
9 1 4 SCREW HEX M.5X16 UNI 5739 (860085-06) 558 RON
10 1 6 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
11 1 4 WASHER SPRING CON.D8.2X18X1 (860074-03) 558 RON
12 1 1 RING SPRING SHAFT D14 UNI7435 (860079-04) 558 RON
13 1 1 PIN HINGE DW1150 (863647-00) 7940 RON
14 1 1 SCREW SOCKET M.6X30 UNI 5931 (860093-11) 558 RON
15 1 1 SPRING PUSHER D9XD1X22 (123255-00) 558 RON
16 1 1 TABLE LOCKING DEVICE DW1150 (863414-00) 1788 RON
17 1 1 BEARING SPACER - INDUSTR.4HP-6 (863971-00) 781 RON
18 1 6 SCREW SOCKET M.8X20 UNI 5931 (860093-07) 558 RON
19 1 4 SCREW SOCKET M.8X25 UNI 5931 (860093-02) 558 RON
21 1 4 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
22 1 2 SCREW HEX M.6X25 UNI 5739 (860085-10) 558 RON
23 1 1 KNOB (865405-01) 2795 RON
24 1 1 SCREW WITH EYE TABLE DW 1150 (123291-00) 1788 RON
25 1 1 PIN DW1150 (123290-01) 4137 RON
26 1 4 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
27 1 4 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
28 1 1 CLAMP SQUARE (123296-01) 2347 RON
29 1 1 TABLE SUPPORT (123312-03) 32770 RON
30 1 4 000000-00 - Indisponibil
31 1 2 SOCKET SCREW TYPE-E (949853-07) 105 RON
32 1 4 SCREW M6X10 (935875-00) 558 RON
33 1 2 PIN D.14X30 DW1150 (863289-00) 781 RON
34 1 1 CONNECTING ROD BAR (123275-01) 4137 RON
35 1 1 SPRING WASHER D.8 (942049-00) 558 RON
36 1 1 TABLE ADJUSTING YOKE (863656-00) 5591 RON
37 1 1 NUT ELAST.STOP M.6 UNI 7474 (860092-00) 558 RON
38 1 1 PIVOT FOR TABLE ADJUST.DW1150 (123295-00) 1452 RON
39 1 1 SOCKET HD.SCREW M8X16 (949886-16) 558 RON
40 1 1 HANDLE TABLE ADJUSTMENT-BLACK (866688-01) 2347 RON
41 1 1 PIN FOR TABLE ADJ.HANDLE DW50- (863660-00) 5591 RON
42 1 1 KNOB PLANING ADJ.LOCK DW 1150 (123227-00) 3018 RON
43 1 1 000000-00 - Indisponibil
44 1 1 ECCENTRIC CONNECTION DW50-55 (863653-00) 2124 RON
45 1 1 BAR SUPPORT FOR CONNECTING ROD (123274-01) 10512 RON
46 1 4 PIN D.14X15-M8X21 DW1150 (863218-00) 190 RON
47 1 4 BEARING PLATE DW50 (863702-00) 781 RON
48 1 2 RIVET THREAD.2.5X5 UNI 7346 (860060-01) 558 RON
