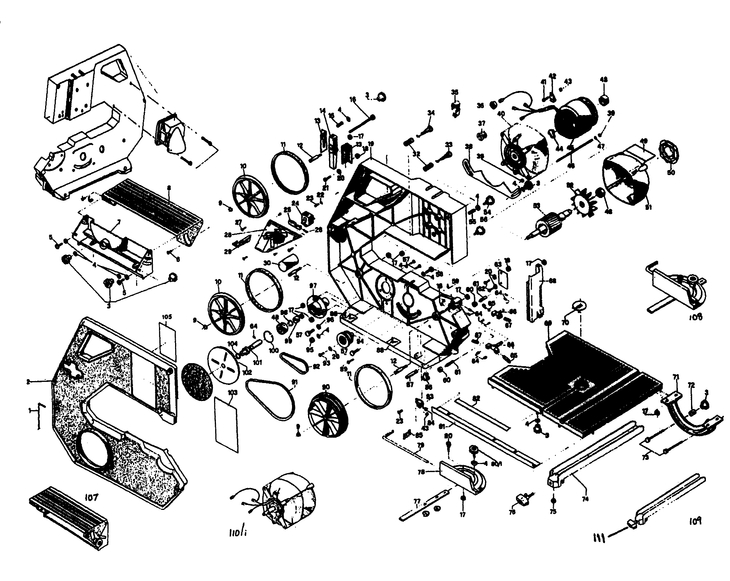

DW100 BANDSAW Type 1
[DW100 Type 1]
DW100 BANDSAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 WRENCH HEX 2.5 UNI 6753 (943271-00) 558 RON
2 1 1 000000-00 - Indisponibil
3 1 1 KNOB (946469-00) 781 RON
4 1 1 WASHER FLAT 6.4X12.5 UNI 6592 (720959-00) 558 RON
5 1 1 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
6 1 1 000000-00 - Indisponibil
9 1 1 RING SPRING SHAFT D10 UNI7435 (860079-02) 558 RON
10 1 1 PULLEY (32940) 10512 RON
11 1 1 000000-00 - Indisponibil
12 1 1 000000-00 - Indisponibil
13 1 1 BRACKET (32942) 1117 RON
14 1 1 000000-00 - Indisponibil
15 1 1 SPRING (32970) 781 RON
16 1 1 000000-00 - Indisponibil
17 1 1 NUT HEX THICK M.6 UNI 5587 (860083-03) 558 RON
18 1 1 NUT HEX THICK M.5 UNI 5587 (860083-02) 558 RON
19 1 1 000000-00 - Indisponibil
20 1 1 WASHER SPRING CON.D5.2X12X0.8 (860074-01) 558 RON
21 1 1 SCREW M5X10 (760998-00) 558 RON
22 1 1 CLAMP WIRE ZINC PLATED (944650-00) 558 RON
23 1 1 SCREW PAN PH/TT M.4X8 UNI8112 (860094-02) 558 RON
24 1 1 000000-00 - Indisponibil
25 1 1 000000-00 - Indisponibil
26 1 1 SPRING PUSHER D.6XD.0.5X14 (860112-06) 1788 RON
27 1 1 SCREW PAN PH/TT M.4X10UNI8112 (860094-03) 558 RON
28 1 1 000000-00 - Indisponibil
29 1 1 COMMUTATOR (32419) 893 RON
30 1 1 CAPACITOR (44430) 6821 RON
32 1 1 000000-00 - Indisponibil
33 1 1 RETAINER (34536) 893 RON
34 1 1 FASTENER (34537) 781 RON
35 1 1 000000-00 - Indisponibil
36 1 1 000000-00 - Indisponibil
37 1 1 000000-00 - Indisponibil
39 1 1 NUT HEX THICK M.4 UNI 5587 (860083-01) 558 RON
40 1 1 000000-00 - Indisponibil
41 1 1 SCREW PAN HD M.4X12 UNI 7687 (860090-02) 558 RON
42 1 1 STRAP CABLE 1/4 H NYLON (123106-00) 105 RON
43 1 1 NUT HEX MEAN M.4 UNI5588 ZINC (860083-10) 558 RON
44 1 1 RING AXIAL LOAD 34.5X28X0.5 (860080-02) 781 RON
45 1 1 000000-00 - Indisponibil
46 1 1 000000-00 - Indisponibil
47 1 1 WASHER FLAT 4.3X9 UNI 6592 (860073-00) 558 RON
48 1 1 BEARING BALL ISO 6202-2Z (930563-00) 5031 RON
50 1 1 000000-00 - Indisponibil
51 1 1 000000-00 - Indisponibil
52 1 1 000000-00 - Indisponibil
53 1 1 000000-00 - Indisponibil
54 1 1 KNOB (34532) 105 RON
55 1 1 SPRING (949722-18) 558 RON
56 1 1 000000-00 - Indisponibil
57 1 1 SCREW (860085-07) 558 RON
58 1 1 SCREW HEX M.6X12 UNI5739 BLCK (860085-13) 558 RON
59 1 1 INDEX (32959) 781 RON
60 1 1 BEARING 625-2Z (949719-04) 190 RON
61 1 1 PIN (32955) 1452 RON
62 1 1 SCREW FIL.HD M.5X20 UNI6107 Z (860089-17) 558 RON
63 1 1 000000-00 - Indisponibil
64 1 1 SOCKET SCREW TYPE-A (949853-02) 558 RON
65 1 2 FENCE (32953) 558 RON
66 1 1 GUIDE BLOCK (76354) 4137 RON
67 1 1 FENCE (32952) 558 RON
68 1 1 000000-00 - Indisponibil
69 1 1 000000-00 - Indisponibil
70 1 1 000000-00 - Indisponibil
71 1 1 PROTRACTOR (76355) 5591 RON
72 1 1 000000-00 - Indisponibil
73 1 1 SCREW HEX M.6X35 UNI5739 ZINC (860085-17) 558 RON
74 1 1 000000-00 - Indisponibil
75 1 1 NUT HEX THICK M.8 UNI 5587 (860083-04) 558 RON
76 1 1 KNOB D.40X16-M8X23-BLACK (862427-00) 781 RON
77 1 1 000000-00 - Indisponibil
78 1 1 000000-00 - Indisponibil
79 1 1 GAUGE (863844-00) 1229 RON
80 1 1 000000-00 - Indisponibil
81 1 1 000000-00 - Indisponibil
83 1 1 000000-00 - Indisponibil
84 1 1 SCREW FIL.HD M.4X10 UNI6107 Z (860089-25) 558 RON
85 1 1 BRUSH (863801-00) 2124 RON
86 1 1 FOOT (863852-01) 781 RON
86 1 1 FOOT (863852-01) 781 RON
87 1 1 000000-00 - Indisponibil
88 1 1 SCREW CUP SQUARE M6X20UNI5732 (860301-00) 558 RON
89 1 1 SCREW SOCKET M.6X14 UNI 5931 (860093-15) 558 RON
90 1 1 000000-00 - Indisponibil
91 1 1 BELT V Y 6X4X500 I.L. (123246-00) 9282 RON
92 1 1 000000-00 - Indisponibil
93 1 1 SCREW SOCKET M.5X12 UNI 5931 (860093-17) 558 RON
94 1 1 000000-00 - Indisponibil
95 1 1 NUT M6 (860083-12) 558 RON
96 1 1 WASHER SPRING CON.D6.2X14X0.9 (860074-02) 558 RON
97 1 1 000000-00 - Indisponibil
98 1 1 RING SPRING SHAFT D15 UNI7435 (930098-00) 558 RON
99 1 1 000000-00 - Indisponibil
100 1 1 RETAINING RING D.35 (949729-03) 558 RON
102 1 1 000000-00 - Indisponibil
103 1 1 000000-00 - Indisponibil
107 1 1 000000-00 - Indisponibil
108 1 1 000000-00 - Indisponibil
109 1 1 000000-00 - Indisponibil
110 1 1 000000-00 - Indisponibil
111 1 1 BLACK KNOB+SCREW (862438-00) 781 RON
