Top » Piese de schimb » PIESE DEWALT » DW073 Type 1

DW073 LASER Type 1
[DW073 Type 1]
DW073 LASER Type 1

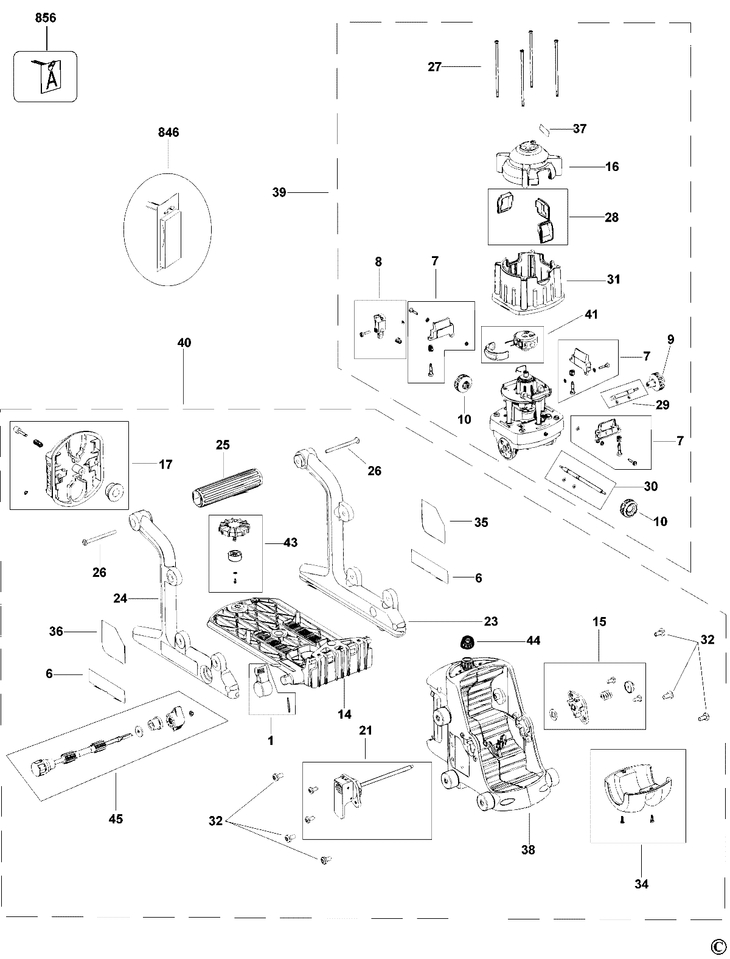

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LOCK KNOB (429980-01) 17335 RON
6 1 2 LABEL (429980-06) 558 RON
7 1 3 LEVEL (595499-00) 6821 RON
8 1 1 LEVEL (595612-00) 4472 RON
9 1 1 ADJUSTER (429980-09) 1229 RON
10 1 2 ADJUSTER (429980-10) 17335 RON
14 1 1 BASEPLATE SA (429980-14) 20467 RON
15 1 1 PIVOT SA RH (429980-15) 17335 RON
16 1 1 CAP SA (429980-16) 17335 RON
17 1 1 BATTERY COVER (429980-17) 17335 RON
21 1 1 PIVOT SHAFT (429980-21) 17335 RON
23 1 1 SIDE RH (429980-23) 15993 RON
24 1 1 SIDE LH (429980-24) 15993 RON
25 1 1 HANDLE (429980-25) 15993 RON
26 1 2 SCREW (429980-26) 558 RON
27 1 4 SCREW (429980-37) 15993 RON
28 1 3 WINDOW (429980-28) 15993 RON
29 1 1 000000-00 - Indisponibil
30 1 1 000000-00 - Indisponibil
31 1 1 HOUSING (429980-31) 15993 RON
32 1 6 SCREW (429980-32) 558 RON
34 1 1 COVER (429980-41) 15993 RON
35 1 1 RATING PLATE (569035-35) 1788 RON
36 1 1 WARNING LABEL (569035-36) 1788 RON
37 1 1 WARNING LABEL (569035-37) 558 RON
38 1 1 HOUSING SA (569035-38) 57488 RON
39 1 1 000000-00 - Indisponibil
40 1 1 CONTROL MODULE SA (569035-40) 112630 RON
41 1 1 LASER HEAD SA (569035-41) 102451 RON
43 1 1 SWIVEL SUPPORT (429980-55) 15993 RON
44 1 1 KNOB (593150-00) 781 RON
45 1 1 PINION SA (429980-36) 14315 RON
846 1 1 GLASSES LASER ENHANCEMENT (603367-00) 7940 RON
856 1 1 CLAMP CEILING LASER SERVICE (585108-00) 80865 RON
