DW017 MITRE SAW Type 1
[DW017 Type 1]

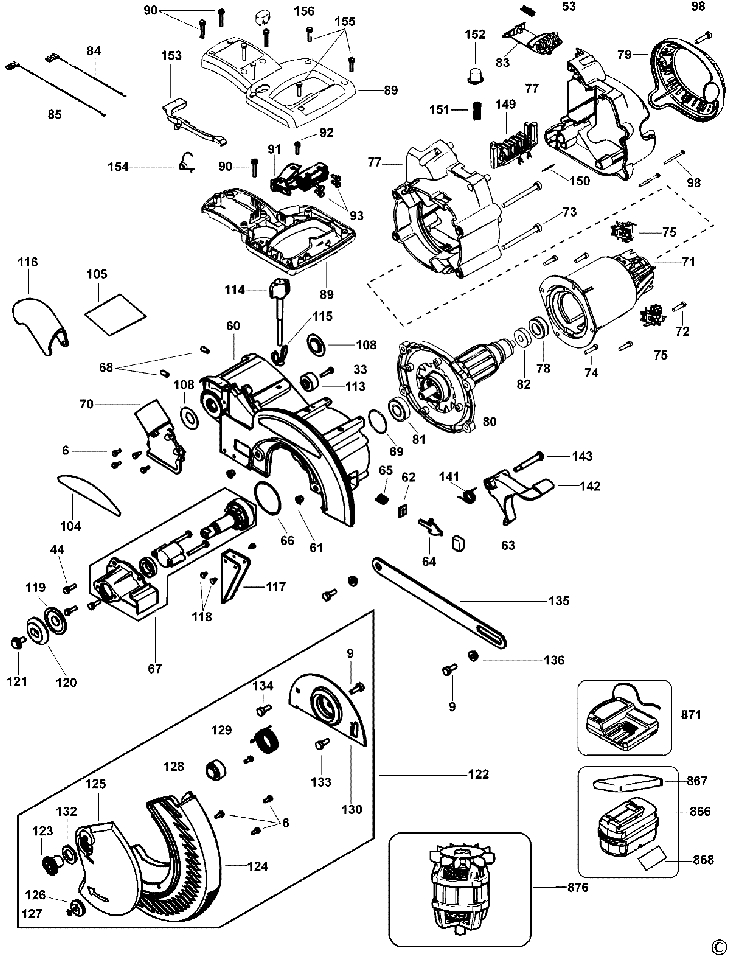

DW017 MITRE SAW Type 1
Click pentru a mari
Imagini suplimentare
DW017 MITRE SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 S/A BASE & LABEL DW 712 (397038-00) 62298 RON
2 1 5 RUBBER FEET (153612-00) 781 RON
3 1 1 SCALE DW712 (397041-00) 12861 RON
4 1 4 SHOULDER SCREW (604987-00) 781 RON
5 1 3 ANTIATTRITION SECTOR (397045-00) 2124 RON
6 1 25 SCREW (98093-76) 558 RON
7 1 2 WARNING LABEL (610707-00) 781 RON
8 1 1 STABILIZER BAR (397042-00) 3466 RON
9 1 7 SCREW (330045-23) 781 RON
10 1 1 S/A ROTATING TABLE (397087-00) 80865 RON
11 1 1 STUD (397085-00) 2347 RON
12 1 1 LOCK PLATE (397062-00) 1452 RON
13 1 4 SCREW (330045-55) 558 RON
14 1 1 BLOCK SPRING (397070-00) 2795 RON
15 1 1 LEVER (397073-00) 781 RON
16 1 1 LEVER LOCK PLATE (397075-00) 558 RON
17 1 1 LOCK LEVER (397065-00) 190 RON
19 1 1 KIT MITER LOCK DW712 (629395-00) 5591 RON
20 1 1 COMPRESSION SPRING (761054-00) 558 RON
21 1 1 DRIVE PIN (397063-00) 1117 RON
22 1 3 SCREW M8X30 (153576-03) 105 RON
23 1 1 MITER POINTER (397048-00) 105 RON
24 1 1 BEVEL INDEX (397090-00) 105 RON
25 1 1 LABEL (605153-00) 893 RON
26 1 2 WASHER (249233-00) 558 RON
27 1 1 SCREW HEX M.8X25 UNI 5739 (860085-19) 558 RON
28 1 1 NUT SELF LOCKING M.8 (860092-05) 558 RON
29 1 2 LAP WASHER (153781-00) 781 RON
30 1 2 WASHER (613270-00) 781 RON
31 1 2 INSERT (397046-00) 2347 RON
32 1 1 FIXED FENCE DW 712 (397077-00) 29862 RON
33 1 4 SCREW TRIL (330045-33) 781 RON
34 1 1 DUST SHIELD (603758-00) 1117 RON
35 1 1 SA SLIDE BEVEL MECH. (605699-00) 244723 RON
36 1 1 BEVEL SCALE (397084-00) 1788 RON
37 1 4 WEAR GUIDE (397118-00) 1452 RON
38 1 2 RUBBER WASHER (153586-00) 781 RON
39 1 2 VITE TRIL.TCB M5X12 D6 1 (616001-00) 558 RON
40 1 1 SCREW M8X10 (153576-04) 190 RON
41 1 2 BEVEL STOP SPRING (397088-00) 558 RON
42 1 1 PIN (397083-00) 5031 RON
43 1 1 BEVEL STOP KNOB (397086-00) 1788 RON
44 1 5 SCREW (330045-14) 558 RON
45 1 1 COMPRESSION SPRING (606014-00) 558 RON
46 1 2 KNOB (147107-06) 2124 RON
47 1 1 BEVEL STOP LABEL (397081-00) 105 RON
48 1 1 STOP PAWL (153603-01) 1117 RON
49 1 1 WAVY WASHER (153655-00) 558 RON
50 1 1 SHOULDER SCREW (153639-00) 781 RON
51 1 1 HOLDER (391358-01) 1117 RON
53 1 1 COMPRESSION SPRING (397173-00) 558 RON
54 1 1 BEVEL NUT (397089-00) 2124 RON
55 1 1 LOCK LEVER (397080-00) 1452 RON
56 1 1 WRENCH (608563-01) 3018 RON
57 1 1 PIN LOCKING (387130-00) 2347 RON
58 1 1 GASKET (34158-00) 558 RON
60 1 1 DW017 HOUSING (397209-01) 59725 RON
61 1 2 INSERT (148608-00) 558 RON
62 1 1 FELT (387732-00) 781 RON
63 1 1 BUTTON (145350-00) 558 RON
64 1 1 UNLOCK LEVER (397135-00) 1229 RON
65 1 1 SPRING (941586-00) 558 RON
66 1 1 O RING 47 35X1 78 (616979-00) 558 RON
66 1 1 GASKET (397139-00) 2124 RON
67 1 1 S/A GEARCASE (397210-01) 51337 RON
68 1 2 SCREW (150075-00) 781 RON
69 1 1 O-RING FOR FA AND BEARING (696519-00) 558 RON
70 1 1 DUST CHUTE [LM-318-G001] (603726-00) 781 RON
71 1 1 000000-00 - Indisponibil
72 1 2 SCREW (176951-00) 558 RON
73 1 4 SCREW (98094-35) 558 RON
74 1 4 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
75 1 2 000000-00 - Indisponibil
77 1 1 HOUSING & COVER (397169-00) 10512 RON
78 1 1 BOOT (605151-00) 2795 RON
79 1 1 BRUSH COVER (397174-00) 2795 RON
80 1 1 000000-00 - Indisponibil
81 1 1 BEARING BALL (330003-64) 4137 RON
82 1 1 BEARING BALL (330003-60) 190 RON
83 1 1 BATTERY LATCH (397172-00) 1452 RON
84 1 1 BROWN LEAD (397191-00) 3018 RON
85 1 1 PURPLE LEAD (397192-00) 3018 RON
89 1 1 000000-00 - Indisponibil
90 1 3 SCREW METAL THD FRM M4X25 T20 (330045-08) 558 RON
91 1 1 SWITCH MARQUARDT (397182-00) 10512 RON
92 1 1 SCREW M4 55X16 (330013-22) 558 RON
93 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
98 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
104 1 1 DEWALT LABEL (397134-00) 1452 RON
105 1 1 WARNING LABEL (610719-00) 1788 RON
106 1 1 DW 017 LABEL (610728-00) 893 RON
108 1 2 PLASTIC WASHER (148296-00) 781 RON
109 1 1 TORSION SPRING (397130-00) 4472 RON
110 1 2 PLASTIC BASE (397129-00) 781 RON
111 1 1 JOINT AXLE (397128-00) 2795 RON
113 1 1 DAMPER (146753-00) 558 RON
114 1 1 STOP KNOB (147107-05) 1117 RON
115 1 1 NUT FIN (613365-00) 781 RON
116 1 1 DEFLECTOR (148520-00) 105 RON
117 1 1 DUST CONVEYOR (612788-00) 1117 RON
118 1 4 PUSH RIVET (607491-00) 558 RON
119 1 1 BLADE INNER DW712 (397138-00) 2347 RON
120 1 1 OUTER FLANGE DW 712 (397136-00) 1452 RON
121 1 1 LOCKING SCREW BLADE (145344-01) 781 RON
122 1 1 S/A PROTECTION (N164918) 29862 RON
123 1 1 RETAINING PLATE SPRING (399182-00) 2347 RON
124 1 1 BLADE PROTECTION (N164683) 9282 RON
125 1 1 PROTECTION PLATE (613460-00) 7940 RON
126 1 1 ROLLER (146774-00) 1117 RON
127 1 1 SEAL RING (604728-00) 558 RON
128 1 1 GUIDE SLEEVE (603440-00) 558 RON
129 1 1 TORSION SPRING (603439-00) 893 RON
130 1 1 SWINGING ROTATION PLATE (399181-00) 2347 RON
132 1 1 PLASTIC WASHER (612923-00) 558 RON
133 1 1 SCREW 6X10 (153778-04) 558 RON
134 1 1 SCREW (394589-01) 781 RON
135 1 1 ACTION LEVER (397159-00) 2347 RON
136 1 2 SYNT. BUSHING (146740-02) 558 RON
137 1 1 SA FENCE+LABEL (397208-01) 14315 RON
138 1 1 WARNING LABEL (610710-00) 1117 RON
140 1 1 LABEL RAIL ADJ. (603856-01) 105 RON
141 1 1 TORSION SPRING (398472-00) 558 RON
142 1 1 UNLOCK LEVER (397150-00) 781 RON
143 1 1 UNLOCKING LEVER SCREW (152852-00) 893 RON
144 1 1 SCREW (612008-00) 781 RON
145 1 1 PIN RUBBER (612004-00) 781 RON
146 1 1 FRICTION DISC (613497-00) 558 RON
149 1 1 CORDLESS CONNECTION PLATE (397186-00) 9282 RON
150 1 1 ROLL PIN (330036-17) 558 RON
151 1 1 COMPRESSION SPRING (397176-00) 558 RON
152 1 1 EJECTION BATTERY BOTTOM (397175-00) 781 RON
153 1 1 CORDLESS UNLOCK LEVER (397188-00) 105 RON
154 1 1 TORSION SPRING (397189-00) 781 RON
155 1 4 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
156 1 1 LOCK OFF BOTTOM (397187-00) 781 RON
174 1 1 WRENCH TORX T30 (385567-01) 2347 RON
800 1 1 GREASE (610817-00) 62298 RON
800 1 1 GREASE (790206-00) 34336 RON
800 1 1 GREASE DW704 TYPE 3 (93488-00) 7940 RON
861 1 1 KIT BOX DW 017 (612974-00) 28296 RON
866 1 1 24v 3AH JETSTREAM BATTERY PACK (578671-01) 145513 RON
866 1 1 2.4Ah 24V BATTERY PACK (SERVICE) (487134-03) 118669 RON
867 1 1 CAP (608262-00) 558 RON
868 1 1 LABEL IDENTITY ( DE0241 NIMH ) (394925-02) 1452 RON
871 1 1 SA CHARGER PACKED ( SERVICE ) (487135-00) 117887 RON
876 1 1 000000-00 - Indisponibil
