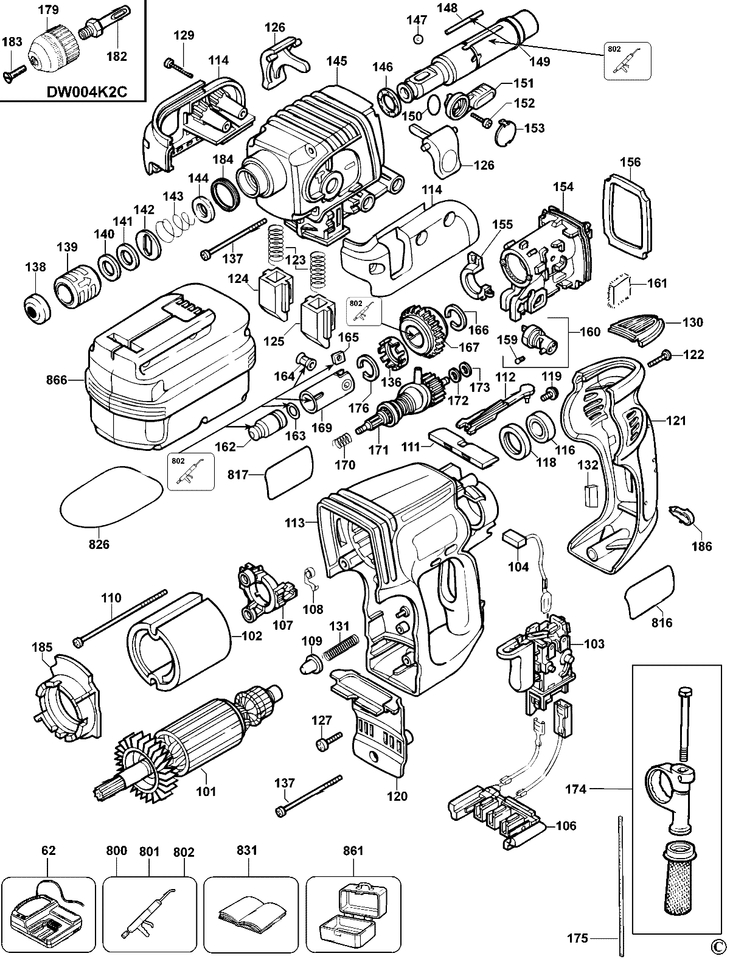

DW004K ROTARY HAMMER Type 1
[DW004K Type 1]
DW004K ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
62 1 1 SA CHARGER PACKED ( SERVICE ) (487135-00) 117887 RON
101 1 1 SA ARMATURE PACKED (SERVICE) (487132-00) 39145 RON
102 1 1 SA MAGNET RING PACKED ( SERVICE ) (487133-00) 7940 RON
103 1 1 SWITCH 24V PACKED ( SERVICE ) (487136-00) 49771 RON
104 1 2 BRUSH SA (487114-00) 4472 RON
106 1 1 SA TERMINAL BLOCK (387530-02) 23598 RON
107 1 1 SA BRUSH RING (487154-00) 3466 RON
108 1 2 SPRING BRUSH (445860-00) 558 RON
109 1 1 KNOB (487086-00) 781 RON
110 1 2 000000-00 - Indisponibil
111 1 1 SLIDER FWD-REV (329956-01) 105 RON
112 1 1 LEVER VA (329957-01) 781 RON
113 1 1 HOUSING MOTOR DW (329861-01) 6821 RON
114 1 1 COVER RAIL SET (487100-00) 2795 RON
116 1 1 BEARING BALL (330003-60) 190 RON
118 1 1 BEARING COVER (935030) 781 RON
119 1 1 SCREW COLLER 8MM (329794-00) 558 RON
120 1 1 COVER MOTOR HOUSING (329955-00) 190 RON
121 1 1 480GRIP SOFT DEWALT (329860-01) 6821 RON
122 1 1 SCREW (330065-08) 558 RON
123 1 2 SPRING (329876-00) 558 RON
124 1 1 LATCH BLOCK R/H (329948-01) 893 RON
125 1 1 LATCH BLOCK L/H (329948-00) 893 RON
126 1 2 RELEASE BUTTON (329950-00) 781 RON
127 1 1 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
129 1 3 SCREW PLASTIC 4.0 * 40 (330065-15) 558 RON
130 1 1 CAP (487088-00) 105 RON
131 1 1 SPRING PRESSURE (N035544) 781 RON
132 1 1 BUMPER SPONGE (930026-01) 781 RON
136 1 1 SLEEVE (327110-00) 558 RON
137 1 5 SCREW. PLASTIC 4 X 65 (324044-02) 558 RON
138 1 1 SEAL LIP (323489-00) 893 RON
139 1 1 SLIDING COLLAR (576756-00) 2795 RON
140 1 1 7150 WASHER (323480-00) 1452 RON
141 1 1 RING.SLIDE 22.1 (323492-00) 781 RON
142 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
143 1 1 SPRING BEVEL (871690) 558 RON
144 1 1 SEAL. DUST (324432-00) 1788 RON
145 1 1 SA GEARCASE (329941-01) 14315 RON
146 1 1 WASHER SUPPORT (329907-00) 3018 RON
147 1 1 BALL D-7.5 DIN 5401 (487033-00) 558 RON
148 1 1 PIN (325880-03) 893 RON
148 1 1 PIN CYL 3 * 23.8 (325880-05) 781 RON
149 1 1 SA SPINDLE SERVICE KIT (578473-01) 42277 RON
150 1 1 GASKET (916323) 558 RON
151 1 1 S.A. SWITCH. LEVER (327119-00) 781 RON
152 1 1 "SCREW PLASTIC 5*12""" (323924-08) 558 RON
153 1 1 COVER (328809-00) 558 RON
154 1 1 SA HOUSING BEARING (329935-00) 1891 RON
155 1 1 SPLASHGUIDE (328507-00) 558 RON
156 1 1 SEAL PROFILE (323572-00) 1117 RON
159 1 1 DETENT (326467-00) 558 RON
160 1 1 TRIP CAM (327094-01) 2795 RON
161 1 1 FELT (327093-00) 558 RON
162 1 1 RAM SA (N032136) 7940 RON
163 1 1 RING O DYNAMIC 13X3 (577168-00) 781 RON
164 1 1 BOLT BEARING (487143-00) 3466 RON
165 1 1 SPRING CONNECTING (327072-00) 781 RON
166 1 1 RING SNAP 28RD (323762-02) 558 RON
167 1 1 SA SLIDER SET 2 MODE (487401-00) 9282 RON
169 1 1 PISTON HOLLOW 19MM (487067-00) 14315 RON
170 1 1 SPRING PRESSURE (323395-33) 781 RON
171 1 1 SA INTERSHAFT ( SERVICE ) (586535-00) 3592 RON
172 1 1 BEARING. AXIAL (324430-03) 5031 RON
173 1 1 BEARING. AXIAL (324431-03) 1788 RON
174 1 1 HANDLE SIDE (939794-02) 5591 RON
175 1 1 DEPTH STOP (580787-00) 893 RON
176 1 1 RING SNAP 28/1.5 (323762-08) 558 RON
179 1 1 CHUCK & SCREW SERVICE KIT (583096-02) 3592 RON
182 1 1 ADAPTOR. SDS (352065) 190 RON
183 1 1 CHUCK SCREW (945013-00) 558 RON
184 1 1 V - SEAL 30/4/7.5 (581092-00) 190 RON
185 1 1 BAFFLE FAN (329862-00) 1452 RON
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
801 1 1 GREASE THERMOPLEX 0.05KG TUBE (328771-07) 3466 RON
802 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
816 1 1 LABEL BRAND DW (578759-00) 781 RON
817 1 1 000000-00 - Indisponibil
826 1 1 LABEL IDENTITY ( DE0241 NIMH ) (394925-02) 1452 RON
826 1 1 ID LABEL 24V (579697-00) 781 RON
866 1 1 24v 3AH JETSTREAM BATTERY PACK (578671-01) 145513 RON
866 1 1 SA 24V BATTERY PACK (SERVICE) (487134-02) 107373 RON
