DULAP CU SERTARE DEWALT DWST1-80123 Type 1
[DWST1-80123 Type 1]

Imagini suplimentare

Click pentru a mari

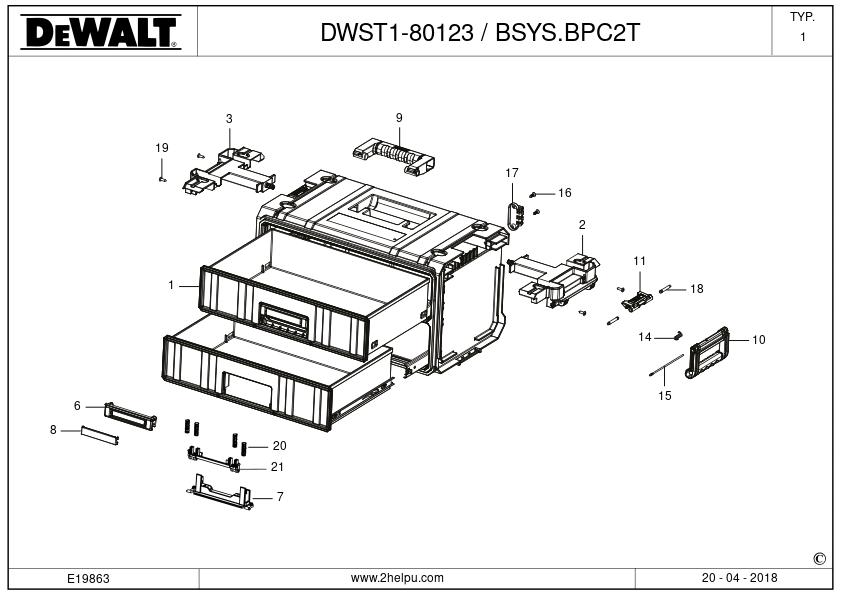

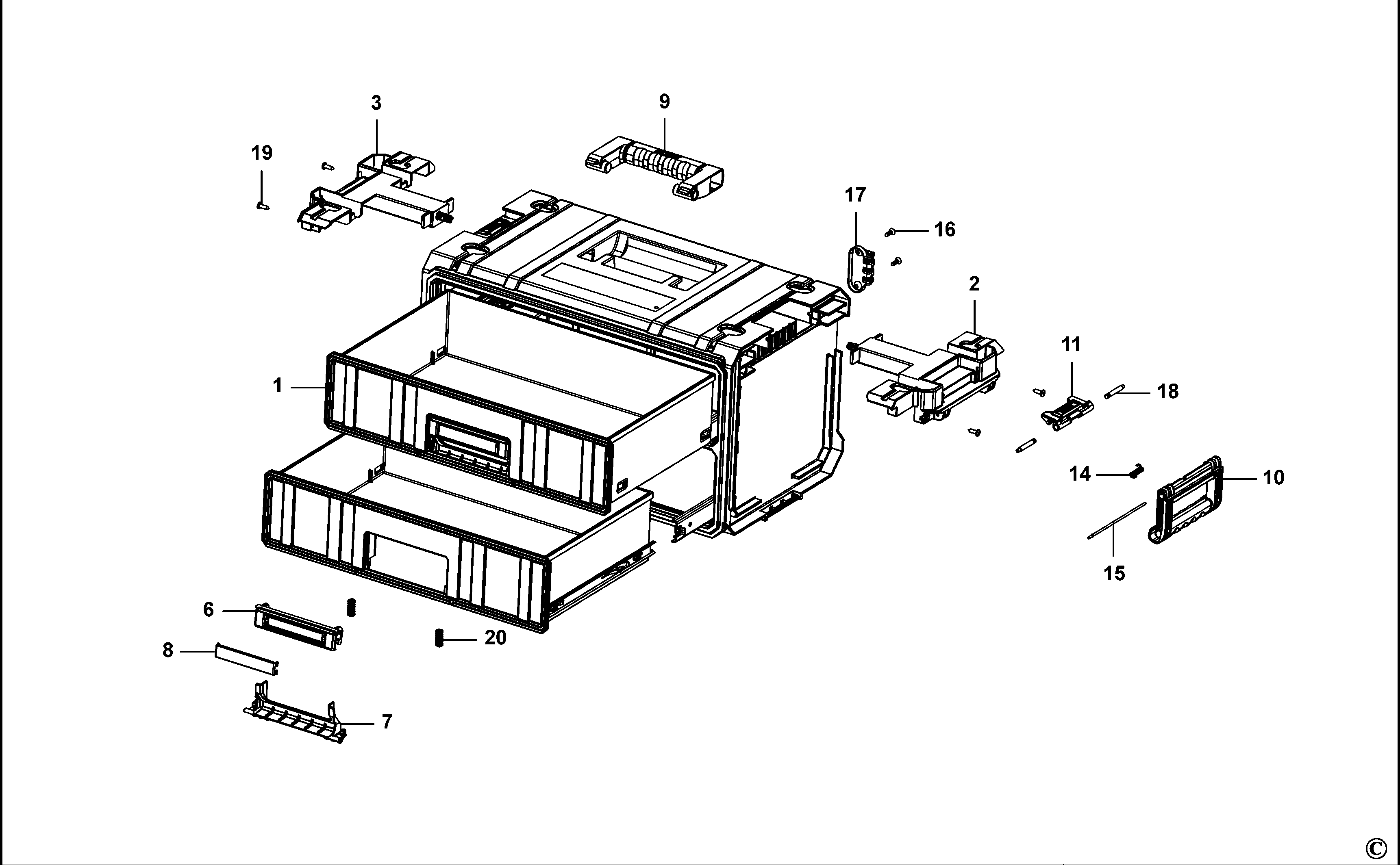

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)	Cumpara
1	1	1	000000-05	-	Indisponibil
2	1	1	SIDE RH (H2500137008)	53⁷⁰ RON
3	1	1	H2500138008	-	Indisponibil
6	1	2	H1400094520	-	Indisponibil
7	1	2	H1500034008	-	Indisponibil
7	1	1	LOCK (H2300088008)	21⁸² RON
8	1	2	COVERPLATE (H2500104001)	6⁶⁸ RON
9	1	1	HANDLE (H1400198008)	23⁴⁷ RON
9	1	1	H1400196008	-	Indisponibil
10	1	2	SIDE HANDLE (H1400195008)	21²⁴ RON
11	1	2	LATCH (H1500033008)	9⁴⁴ RON
11	1	2	H1300033008	-	Indisponibil
11	1	2	H1500030002	-	Indisponibil
14	1	2	SPRING (P910515)	7⁸¹ RON
15	1	2	HINGE (P910773)	5⁸⁸ RON
16	1	2	SCREW (P910516)	5⁵⁸ RON
17	1	1	HOOK (P910697)	25⁵⁶ RON
17	1	1	HOOK (P910512)	30¹⁸ RON
18	1	4	PIN (P910758)	5⁸⁸ RON
19	1	4	SCREW (P910372)	5⁸⁸ RON
20	1	8	SPRING (P006457)	5⁵⁸ RON
20	1	4	P910806	-	Indisponibil
21	1	1	LOCKING KNOB (H2300089008)	5⁸⁸ RON
