Top » Piese de schimb » PIESE DEWALT » DCW682P2 Type 1

DISPOZITIV DE CANELAT DEWALT DCW682P2 Type 1
[DCW682P2 Type 1]
DISPOZITIV DE CANELAT DEWALT DCW682P2 Type 1
Click pentru a mari
Imagini suplimentare
DISPOZITIV DE CANELAT DEWALT DCW682P2 Type 1
Click pentru a mari
DISPOZITIV DE CANELAT DEWALT DCW682P2 Type 1
Click pentru a mari

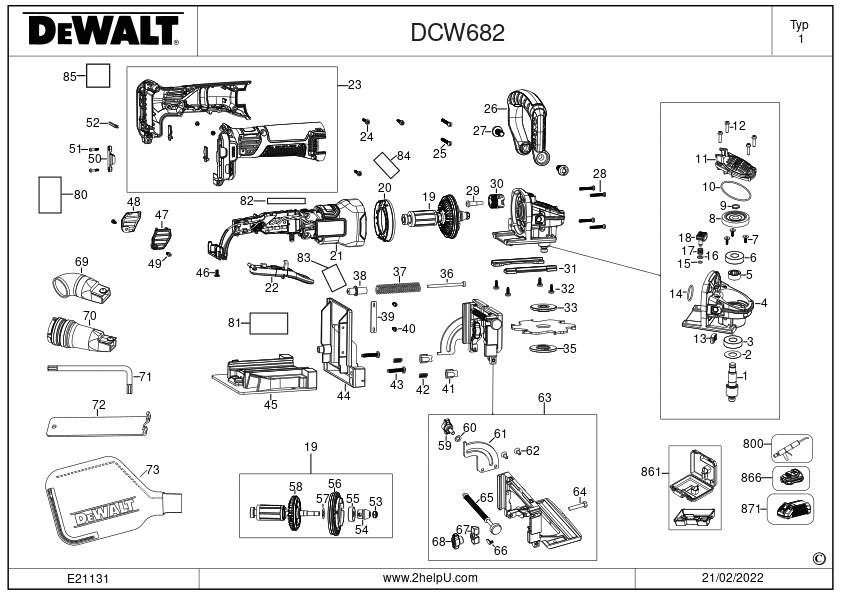

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SPINDLE (N863872) 4355 RON
2 1 1 Slinger (638229-00) 558 RON
3 1 1 BEARING (N150961) 190 RON
4 1 1 GEARCASE (N863859) 16689 RON
5 1 1 SLEEVE (N095815) 781 RON
6 1 1 BEARING (N150961) 190 RON
7 1 3 SCREW (N118088) 558 RON
8 1 1 GEAR (N153126) 3466 RON
9 1 1 RETAINING RING (444793-00) 558 RON
10 1 1 O RING (N094024) 558 RON
11 1 1 GEARCASE COVER (N116180) 781 RON
12 1 4 SCREW (N122904) 558 RON
13 1 1 PLUG (N489769) 588 RON
14 1 1 O RING (N119639) 558 RON
15 1 1 O RING (N094012) 558 RON
16 1 1 WASHER BEARING BLOCK (N447838) 588 RON
17 1 1 SPRING (N092954) 558 RON
18 1 1 SPINDLE LOCK (N181767) 781 RON
19 1 1 ROTOR SA (N769802) 42426 RON
20 1 1 BAFFLE ARES (N478435) 668 RON
21 1 1 MOTOR SA (NA146296) 161583 RON
22 1 1 LEVER LOCK-OFF (N534716) 4355 RON
22 1 1 N471601 - Indisponibil
23 1 1 HANDLE SA (NA152438) 51127 RON
24 1 3 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
25 1 2 SCREW M4X34 T15 (330065-33) 588 RON
26 1 1 HANDLE (N863904) 3268 RON
27 1 2 SCREW (330045-32) 781 RON
28 1 4 SCREW (330065-31) 558 RON
29 1 1 SCREW (147791-00) 558 RON
30 1 1 DEPTH STOP (NA033471) 3268 RON
31 1 2 PAD (147736-01) 1117 RON
32 1 4 SCREW.TEMP (330045-05) 558 RON
33 1 1 WASHER (147725-00) 2124 RON
35 1 1 NUT (151001-00) 2347 RON
36 1 1 SHAFT (147759-00) 893 RON
37 1 1 SPRING (147758-00) 893 RON
38 1 1 GUIDE (147785-00) 893 RON
39 1 1 SCALE (147797-01) 1229 RON
40 1 2 Screw Taptite (330045-43) 558 RON
41 1 2 PIN (147753-00) 893 RON
42 1 2 SPRING (147809-00) 558 RON
43 1 2 Screw Metal (330045-16) 558 RON
44 1 1 SUPPORT (147741-00) 14315 RON
45 1 1 BASE SA (NA134292) 28836 RON
46 1 1 TERMINAL BLOCK (NA105798) 1933 RON
47 1 1 SA VENT COVER RIGHT (N493572) 1772 RON
48 1 1 SA VENT COVER LEFT (N493573) 1772 RON
49 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
50 1 1 BLANK COVER AUDIT CHIP (N787996) 588 RON
51 1 2 SCREW (N831593) 588 RON
52 1 1 STRIKE PLATE (N467560) 588 RON
53 1 1 NUT (604484-00) 558 RON
54 1 1 PINION (N153125) 2347 RON
55 1 1 BEARING (N214432) 105 RON
56 1 1 Fan, rotor (N478436) 944 RON
57 1 1 WASHER (N213812) 558 RON
58 1 1 ROTOR SA (N885205) 42426 RON
59 1 1 KNOB (NA034028) 944 RON
60 1 1 WASHER (330016-07) 558 RON
61 1 1 QUADRANT (147795-00) 3018 RON
62 1 1 SCREX TEMP (098102-10) 558 RON
63 1 1 FENCE SA (NA169873) 40734 RON
64 1 1 SCREW (098022-25) 558 RON
65 1 1 PINION (147745-00SV) 7940 RON
66 1 1 POINTER (147737-00) 588 RON
67 1 1 CLAMP (147749-00) 893 RON
68 1 1 KNOB (NA034029) 944 RON
69 1 1 DUST ATTACHMENT (151002-00) 2795 RON
70 1 1 DUST PORT (NA039653) 114 RON
71 1 1 KEY (152693-00) 2124 RON
72 1 1 SPANNER (445871-00) 190 RON
73 1 1 DUST BAG (N126162) 5370 RON
80 1 1 LABEL (NA134475) 1772 RON
81 1 1 RATING PLATE (NA134480) 1318 RON
82 1 1 IDENTITY LABEL (NA134471) 114 RON
83 1 1 LABEL (NA134482) 1630 RON
84 1 1 LABEL (NA134484) 668 RON
85 1 1 LABEL (NA134485) 668 RON
800 1 1 GREASE (286436-00) 70239 RON
861 1 1 KITBOX (N475700) 18568 RON
861 1 1 KITBOX (NA086054) 30769 RON
866 1 2 BATTERY 18V -5.0AH -90WH (N394624) 104961 RON
871 1 1 N450536 - Indisponibil
871 1 1 CHARGER-DCB1104-QW - (4A) (NA132878) 44688 RON
871 1 1 CHARGER 10.8V - 18V (NA010209) 51127 RON
