Top » Piese de schimb » PIESE DEWALT » DCS391 Type 1

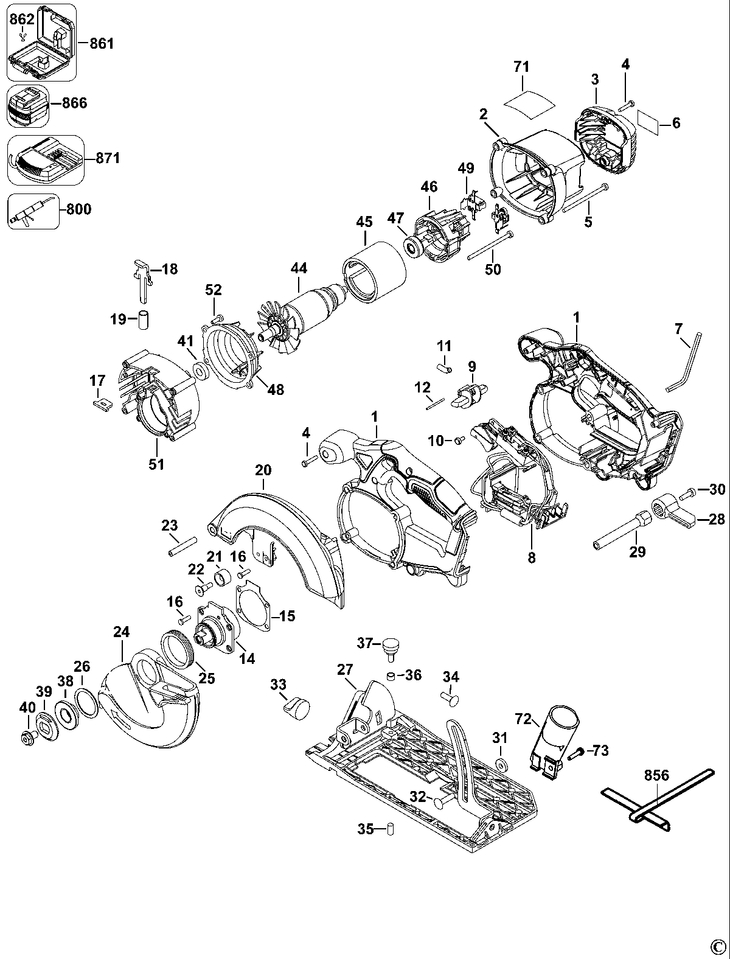

DCS391 CORDLESS CIRCULAR SAW Type 1
[DCS391 Type 1]
DCS391 CORDLESS CIRCULAR SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N064324) 12861 RON
2 1 1 MOTOR COVER (N054423) 4137 RON
3 1 1 END CAP (629547-00) 2347 RON
4 1 8 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
5 1 4 SCREW (398987-00) 558 RON
6 1 1 BRAND LABEL (N094673) 781 RON
7 1 1 HEX KEY 5MM ocd vechi 98000-11 (098000-11) 781 RON
8 1 1 SWITCH SA (N189271) 59725 RON
8 1 1 SWITCH SA (N189271) 59725 RON
9 1 1 BUTTON LOCK-OFF (605107-00) 105 RON
10 1 1 SCREW DW007K (330019-40) 558 RON
11 1 1 SPRING DW007K (389120-00) 2124 RON
12 1 1 PIN DW007K (388531-00) 781 RON
14 1 1 SPINDLE SA cod vechi 659417-00 (659417-00SV) 15993 RON
15 1 1 GASKET (605081-01) 781 RON
16 1 8 SCREW (613783-00) 558 RON
17 1 1 WIPER (605094-00) 558 RON
18 1 1 SPINDLE LOCK (629444-00) 105 RON
19 1 1 SPRING (58698-00) 558 RON
20 1 1 GUARD UPPER (N086228) 12861 RON
21 1 1 BUMPER (389132-00) 558 RON
22 1 1 SCREW (610134-00) 558 RON
23 1 1 SPIROL PIN (614048-00) 781 RON
24 1 1 GUARD LOWER (611925-00) 7940 RON
25 1 1 SPRING (N035365) 781 RON
26 1 1 RETAINER (150383-00) 781 RON
27 1 1 SHOE SA (N107843SV) 28296 RON
28 1 1 LEVER (605105-00) 1117 RON
29 1 1 SHAFT (618901-00) 2795 RON
30 1 1 SCREW (330045-14) 558 RON
31 1 1 WASHER (N112241) 558 RON
32 1 1 CARRIAGE BOLT (098128-85) 558 RON
33 1 1 SA KNOB (395889-00) 781 RON
34 1 1 CARRIAGE BOLT (N022876) 558 RON
35 1 1 SCREW DW007K (381069-00) 558 RON
36 1 1 SPRING (58287-00) 558 RON
37 1 1 KNOB (396992-02) 781 RON
38 1 1 WASHER INNER CLAMP (610046-00) 1788 RON
39 1 1 WASHER OUTER CLAMP (610048-00) 105 RON
40 1 1 BLADE BOLT LH M8X1.25 BLADE BOLT (648697-00) 781 RON
41 1 1 BEARING BALL (330003-64) 4137 RON
44 1 1 ARMATURE SA (N083093SV) 26730 RON
45 1 1 MAGNET (611202-00SV) 9282 RON
46 1 1 SUPPORT BEARING (N171820) 2124 RON
47 1 1 SA BEARING AND BOOT (391032-00) 2795 RON
48 1 1 BAFFLE (610124-01) 2124 RON
49 1 2 BRUSH SA (610126-00) 2795 RON
50 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
51 1 1 GEARCASE SA (N068175SV) 17335 RON
52 1 4 SCREW TAPTITE M4x12 SLT/T20 (330045-45) 558 RON
71 1 1 RATING PLATE (N107523) 781 RON
72 1 1 DUST PORT (N104672) 2347 RON
73 1 1 SCREW (N106370) 105 RON
800 1 1 GREASE (761995-01) 23598 RON
856 1 1 FENCE DW936 (381091-01) 2124 RON
861 1 1 kitbox for DCS390KN-EC and DCS373KN-EC (N153976) 29862 RON
862 1 1 spring clip from DC390KN-EC (605265-00) 558 RON
866 1 1 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
866 1 1 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
