DCS310 CORDLESS RECIPROCATING SAW Type 1
[DCS310 Type 1]
DCS310 CORDLESS RECIPROCATING SAW Type 1

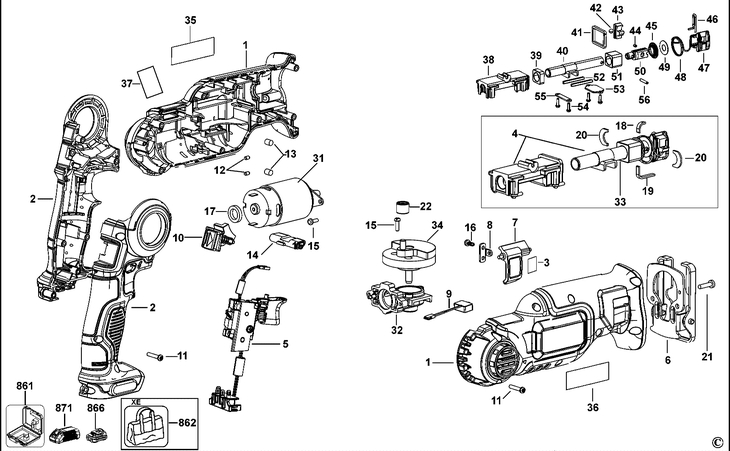

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N103454) 7940 RON
2 1 1 CLAMSHELL SET (N103094) 10512 RON
3 1 1 LABEL (N143838) 558 RON
4 1 1 SHAFT SA (N131523) 25164 RON
5 1 1 SWITCH SA (N175742) 22144 RON
6 1 1 SHOE SA (N096581) 4472 RON
7 1 1 LEVER SA (N098006) 1229 RON
8 1 1 BRACKET (N101648) 558 RON
9 1 1 LED LIGHT (N114801) 4137 RON
10 1 1 ACTUATOR (N131526) 1452 RON
11 1 14 SCREW PLASTITE (682211-00) 781 RON
12 1 2 RUBBER (N031603) 558 RON
13 1 2 PLUG (N015397) 558 RON
14 1 1 LOCK BUTTON (N098461) 781 RON
15 1 5 Screw Taptite (330045-43) 558 RON
16 1 2 SCREW (N086775) 558 RON
17 1 1 RING (N108470) 558 RON
18 1 1 SEAL (N116071) 558 RON
19 1 1 SEAL (N116072) 558 RON
20 1 2 SEAL (N116073) 558 RON
21 1 2 SCREW (330065-31) 558 RON
22 1 1 BEARING (N131521) 2124 RON
31 1 1 MOTOR & PINION (N131518) 14315 RON
32 1 1 GEAR CASE SA (N131520) 5591 RON
33 1 1 BLADE CLAMP (N131522) 20467 RON
34 1 1 GEAR SA (N131519) 12861 RON
35 1 1 BRAND LABEL (N150552) 558 RON
36 1 1 RATING PLATE (N150514) 558 RON
37 1 1 LABEL (N150553) 558 RON
38 1 1 SUPPORT BEARING (N096418) 3018 RON
39 1 1 BUSH (N096424) 893 RON
40 1 1 DRIVE SHAFT (N096409) 6821 RON
41 1 1 FELT SEAL (N096425) 781 RON
42 1 1 000903-00 - Indisponibil
43 1 1 SLIDER (N133647) 105 RON
44 1 1 PIN (386786-00) 558 RON
45 1 1 O RING (N115522) 1117 RON
46 1 1 LOCK PIN (620663-00) 781 RON
47 1 1 BLADE CLAMP (604731-00) 5031 RON
48 1 1 SPRING BLADE CLAMP (623343-00) 781 RON
49 1 1 WASHER (N120463) 558 RON
50 1 1 SHAFT (N098176) 5591 RON
51 1 1 BUSH (N096420) 1229 RON
52 1 2 PLATE (N096419) 781 RON
53 1 1 BEARING PLATE (N096422) 558 RON
54 1 4 SCREW (330045-01) 558 RON
55 1 1 BEARING PLATE (N096423) 558 RON
56 1 1 SPIROL PIN (N096408) 558 RON
861 1 1 KITBOX (N130920) 15993 RON
866 1 1 BATTERY 10.8 - 1.5AH (N140056) 36797 RON
871 1 1 CHARGER 10.8V (N233361) 40599 RON
