DCN691 CORDLESS NAILER Type 1
[DCN691 Type 1]
DCN691 CORDLESS NAILER Type 1
Click pentru a mari

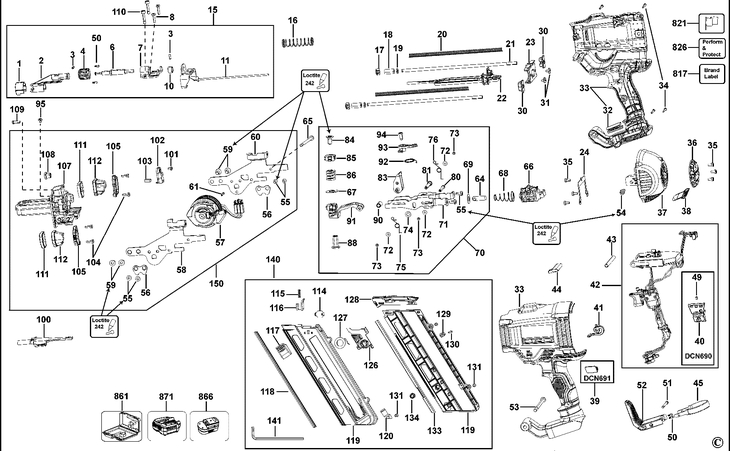

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 NOMAR COVER CDFN (N116163) 1452 RON
2 1 1 LOWER TRIP (N093795) 17335 RON
3 1 2 PIN COILED (N153045) 558 RON
4 1 1 DEPTH KNOB (MOULD X) (N037233) 1117 RON
6 1 1 DEPTH ADJUST PIN (N034174) 4137 RON
7 1 1 TRIP SUPPORT AND STOP (N034374) 2124 RON
8 1 2 SCREW MACH M4X17 T20 (N093602) 558 RON
10 1 1 RETAINING SLEEVE (N044294) 1117 RON
11 1 1 SA TRIP ROD AND UPPER (SERVICE) (N380152) 10512 RON
15 1 1 SA CONTACT TRIP DEPTH ADJUST (SERVICE) (N233942) 40599 RON
16 1 1 SPRING TRIP (N061508) 781 RON
17 1 2 SPRING RAIL CLIP (N192671) 558 RON
18 1 2 SPRING BUMPER (N088831) 1788 RON
19 1 2 WASHER HARDENED (N088833) 558 RON
20 1 1 SA PACKED RETURN SPRING (SERVICE) (N233943) 22144 RON
21 1 2 RAIL (N036350) 7940 RON
22 1 1 SA PACKED PROFILE COATED (SERVICE) (N522743) 34336 RON
23 1 1 RAIL END CAP (N036349) 1229 RON
24 1 1 ENDCAP RETAINER PLATE (N121870) 781 RON
26 1 1 000000-00 - Indisponibil
30 1 1 PACKED UPPER BUMPERS (SERVICE) (N243999) 781 RON
31 1 2 SCREW M3.5X6 PAN (N088832) 2124 RON
32 1 1 N324799 - Indisponibil
33 1 1 SA PACKED HOUSINGS (SERVICE) (N233946) 17335 RON
34 1 8 SCREW PLSTC THD FORM M3*19 T10 (330019-24) 558 RON
35 1 6 SCREW FORM M4X8 (N123731) 781 RON
36 1 1 HOUSING END CAP COVER (MOULD) (N061544) 2347 RON
37 1 1 HOUSING END CAP (N028372) 9282 RON
38 1 1 LED WINDOW (MOULD X) (N130853) 893 RON
39 1 1 BUMP LOCKOUT (MOULD) (N150581) 781 RON
41 1 1 ACTUATOR SPRING (N055786) 1229 RON
42 1 1 000000-00 - Indisponibil
43 1 1 FRAME STANDOFF (N037216) 105 RON
44 1 1 TRIGGER LOCK OFF (UP26) (N039287) 781 RON
45 1 1 BAND RAFTER HOOK (N080411) 2124 RON
50 1 4 DETENT (326467-00) 558 RON
51 1 1 M4x35 T15 (N093728) 781 RON
52 1 1 RAFTER HOOK (MOULD) (N080410) 2795 RON
53 1 1 SCREW MACH M6X80 (N123751) 105 RON
54 1 2 SCREW SHOULDER M5 (N093611) 105 RON
55 1 6 SCREW FLAT HD M5X8 (N093608) 558 RON
56 1 2 MOTOR LOCATOR (N035847) 781 RON
57 1 1 SA PACKED MOTOR BRUSHLESS (SERVICE) (N233948) 80865 RON
58 1 1 LEFT FRAME (N034749) 4137 RON
59 1 1 SCREW FLAT HD M6X12 (N093604) 558 RON
60 1 1 RIGHT FRAME (N034750) 4137 RON
61 1 1 SCREW M4X10 JIGSAW SOLE PLATE (N056875) 558 RON
64 1 1 SOLENOID PLUNGER (N083640) 190 RON
65 1 1 SCREW MACH M5X75 (N093607) 893 RON
66 1 1 SA PACKED SOLENOID (SERVICE) (N233949) 12861 RON
67 1 1 SOLENOID WASHER (N114861) 558 RON
68 1 1 SOLENOID SPRING CDFN (N219872) 558 RON
69 1 1 SOLENOID WASHER (N114861) 558 RON
70 1 1 SA CARRIAGE PART (SERVICE) (N380147) 62298 RON
71 1 1 RIDGED CARRIAGE (N321159) 11519 RON
72 1 3 WASHER PLAIN 8.25X4.25X0.607 (330016-25) 558 RON
73 1 3 GROMMET (391814-00) 781 RON
74 1 1 SOLENOID WASHER 1 (N114961) 558 RON
75 1 1 TORSION SPRING SHOT PEENED (SUBC) cod vechi N231397 (N613043) 190 RON
76 1 1 TORSION SPRING SHOT PEENED (SUBC) (N231398) 190 RON
80 1 1 N083553R - Indisponibil
81 1 1 CARRIER PIN (N034920) 2795 RON
83 1 1 SA PACKED PINCH ROLLER CARRIER (SERVICE) (N233950) 22144 RON
84 1 1 SCREW FLAT HD M6X12 (N093604) 558 RON
85 1 1 SPRING CAP (N029585) 4137 RON
86 1 1 PINCH ROLLER SPRING (N309239) 4472 RON
88 1 1 SPRING KEEPER (N035104) 3466 RON
90 1 1 SLEEVE SERVICE (N259819) 781 RON
91 1 1 SA PINCH ROLLER SPRING ARM (SERVICE) (N234259) 17335 RON
92 1 1 TORSION SPRING (N086806) 893 RON
93 1 1 LEVER STALL RELEASE (MOULD X) (N086157) 893 RON
94 1 1 SCREW STALL RELEASE (N113536) 781 RON
95 1 1 SCREW MACH M4X4.75 T20 (N123971) 558 RON
100 1 1 SA PACKED NOSE INSERT ROUND (SERVICE) (N233939) 20467 RON
101 1 1 FILLISTER HEAD SCREW (949894-06) 558 RON
102 1 1 HOLDER HOME MAGNET (MOULD) (N194170) 781 RON
103 1 1 MAGNET LIFTER (N089554) 4137 RON
104 1 4 SCREW TAPTITE M4 (324006-16) 2124 RON
105 1 2 BUMPER RETAINER (MOULD X) (N082940) 558 RON
107 1 1 BACKBONE MACHINED (N089737) 1891 RON
108 1 1 BUSHING TRIP (N061668) 2124 RON
109 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
110 1 2 BOLT MAGAZINE (N061605) 893 RON
111 1 2 BUMPER DAMPER (N133209) 781 RON
112 1 1 SA PACKED LWR RH + LH BUMPERS (SERVICE) (N233940) 2795 RON
114 1 1 DRY-FIRE LOCK RETAINER (N034726) 558 RON
115 1 1 DRY-FIRE LOCK SPRING (N061545) 558 RON
116 1 1 DRYFIRE LOCK 24 DEG (N307220) 1229 RON
117 1 1 CAP LATCH (SUBC) (N061505) 1117 RON
118 1 1 RETAINING GUARD (N034716) 2124 RON
119 1 1 SA MAGAZINE PARTS (SERVICE) (N380178) 12861 RON
120 1 1 LATCH LOCK (N114100) 781 RON
126 1 1 SA PUSHER (MOULD) (N054935) 2347 RON
127 1 1 SA SPRING AND HUB (N128653) 3018 RON
128 1 1 N397144 - Indisponibil
129 1 1 PIN LATCH (MOULD) (N061506) 781 RON
130 1 1 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
131 1 3 SCREW PLSTC THD FROM M4X12 T20 (330065-06) 558 RON
133 1 1 NAIL LINER (N034743) 2347 RON
134 1 1 NUT (397893-00) 558 RON
140 1 1 SA PACKED SA MAGAZINE (SERVICE) (N260859) 59725 RON
141 1 1 WRENCH HEX (N061664) 781 RON
150 1 1 N413911 - Indisponibil
817 1 2 LOGO LABEL (N136307) 1788 RON
817 1 1 LOGO LABEL EURO (N132863) 781 RON
826 1 1 PERFORM AND PROTECT LOGO LABEL (N207832) 1788 RON
836 1 1 000000-00 - Indisponibil
861 1 1 SA KITBOX NAILER (MOULD) (N137841) 25164 RON
