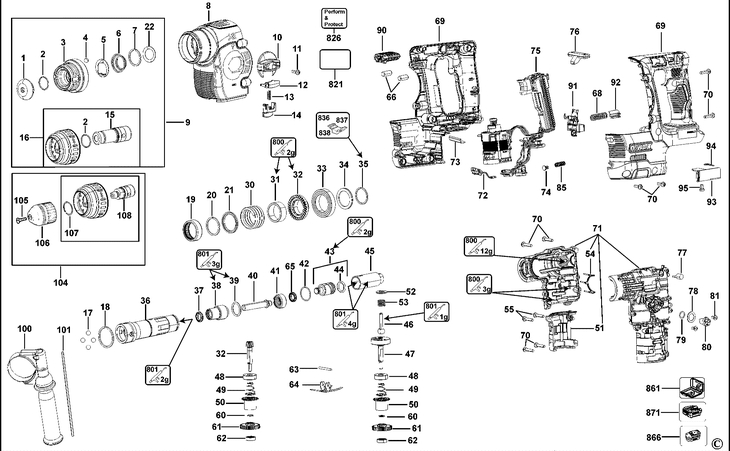

DCH274 ROTARY HAMMER Type 1
[DCH274 Type 1]
DCH274 ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 SLIDING TUBE (493965-00) 3466 RON
4 1 1 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (871690) 558 RON
7 1 1 N091710 - Indisponibil
8 1 1 N339199 - Indisponibil
9 1 1 SA TOOLHOLDER (SERVICE) (N093555) 3592 RON
10 1 1 GEAR SWITCH (MOULD) (N190510) 1452 RON
11 1 1 SCREW TAPTITE M4 (324006-16) 2124 RON
12 1 1 CAP-1 (N034134) 105 RON
13 1 1 MODE SELECTOR SPRING (N074923) 558 RON
14 1 1 RELEASE BUTTON (MOULD) (N190511) 781 RON
15 1 1 N403109 - Indisponibil
16 1 1 N421935 - Indisponibil
17 1 4 BALL 7.0 (583890-00) 781 RON
18 1 1 RING SNAP 32 (577795-00) 781 RON
19 1 1 NEEDLE BEARING HK2812RS (N149956) 3466 RON
20 1 1 CIRCLIP SW28 (488105-00) 781 RON
21 1 1 WASHER CLUTCH (N043423) 190 RON
22 1 1 CUP SPRING SPINDLE (N016357) 558 RON
30 1 1 SPRING CLUTCH (589346-00) 2795 RON
31 1 1 N410822 - Indisponibil
32 1 1 N421936 - Indisponibil
33 1 1 BEARING BALL 6906 (479478-00) 4472 RON
34 1 1 WASHER SPINDLE (N043424) 190 RON
35 1 1 CIRCLIP SW26 1.5MM (488390-00) 558 RON
36 1 1 N421938 - Indisponibil
37 1 1 SEAL (577139-00) 1117 RON
38 1 1 BEARING BEATPIECE QCC (SERVICE) (493676-00) 7940 RON
39 1 1 O-RING 17.5 X 2.5 (590299-00) 893 RON
40 1 1 BEATPIECE QCC (SERVICE) (493675-00) 6821 RON
41 1 1 BUSH DAMPING (SERVICE (493677-00) 7940 RON
42 1 1 RING SNAP 22.5 (323762-07) 558 RON
43 1 1 SERVICE KIT RAM (SERVICE) (N178363) 4472 RON
44 1 1 RING O DYNAMIC 13X3 (N114827) 781 RON
45 1 1 HOLLOW PISTON DCH (SERVICE) (492822-00) 11519 RON
46 1 1 PIN-BALL DCH (SERVICE) (492823-00) 4472 RON
47 1 1 SA CRANK SHAFT (SERVICE) (N288223) 17335 RON
48 1 2 BEARING BALL cod vechi 477133-00 (N168103) 1788 RON
49 1 1 SPRING TRANSMISSION cod vechi 575021-00 (N466046 ) 558 RON
50 1 2 COLLAR TRANSMISSION D-SHAPE (N150085) 1788 RON
51 1 1 N382169 - Indisponibil
52 1 1 WASHER (N108992) 558 RON
53 1 1 SPRING RIVET (490286-00) 558 RON
54 1 1 N323159 - Indisponibil
55 1 2 SCREW PLSTC THD FORM M4.06X30 (330019-81) 558 RON
60 1 2 RING. SNAP 8 (323763-10) 781 RON
61 1 2 GEAR 3M MACHINE ALPHA20 (SERVICE) (492828-00) 10512 RON
62 1 2 BEARING (330003-40) 3018 RON
63 1 1 PIN (590312-00) 781 RON
64 1 1 PLATE TRANSMISSION COD VECHI 575022-00 (NA210726) 190 RON
65 1 1 RING RAMCATCHER (580990-00) 1117 RON
66 1 2 PIN CYLINDER 8*18 AVS (575032-00) 893 RON
68 1 1 SPRING BOTTOM AVS (479313-00) 558 RON
69 1 1 N421939 - Indisponibil
70 1 24 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
71 1 1 N421951 - Indisponibil
72 1 1 SA LED DCH ZODIAC (N051450) 3466 RON
73 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
74 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
75 1 1 N421952 - Indisponibil
76 1 1 F-R BAR DCH ZODIAC (N072124) 781 RON
77 1 1 FELT (582865-00) 558 RON
78 1 1 WASHER 12X18X1.2 (1006725-00) 781 RON
79 1 1 323711-34 - Indisponibil
80 1 1 MODE SELECTOR LEVER (575025-00) 3466 RON
81 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
85 1 1 SPRING (N119679) 558 RON
90 1 1 N376306 - Indisponibil
91 1 1 N389213 - Indisponibil
92 1 1 N400088 - Indisponibil
93 1 1 N324360 - Indisponibil
94 1 1 N400082 - Indisponibil
95 1 1 N400130 - Indisponibil
100 1 1 SIDEHANDLE (N112156) 12861 RON
101 1 1 DEPTH STOP (N290613) 893 RON
104 1 1 SA CHUCK & SPINDLE SERVICE (584559-00) 3124 RON
105 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
106 1 1 "CHUCK KEYLESS 1/2"" UNF 2 SLEEVE" (582512-02) 17335 RON
107 1 1 RING SNAP 21 (579212-00) 781 RON
108 1 1 SPINDLE CHUCK PACKED FOR SERVICE (584676-00) 11519 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
821 1 1 N402814 - Indisponibil
826 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
836 1 1 596005-99 - Indisponibil
837 1 1 596006-99 - Indisponibil
838 1 1 596007-99 - Indisponibil
861 1 1 KITBOX DCH ZODIAC (MOULD) (576657-05) 15993 RON
866 1 1 N394624 - Indisponibil
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
