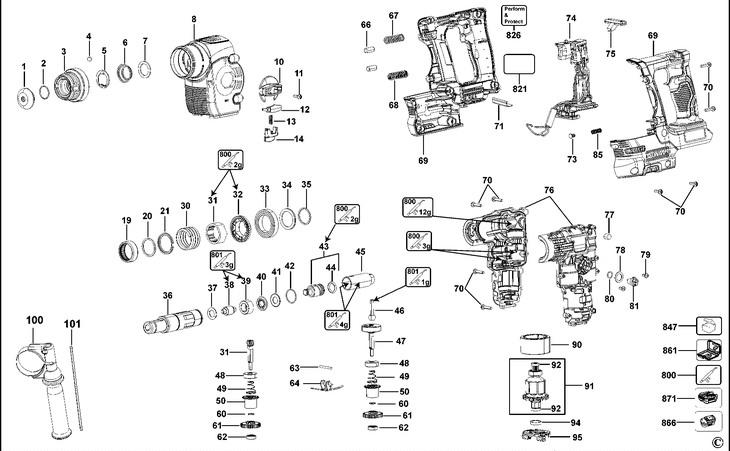

DCH243 ROTARY HAMMER Type 1
[DCH243 Type 1]
DCH243 ROTARY HAMMER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL LIP (323489-00) 893 RON
2 1 1 RING SNAP 21 (579212-00) 781 RON
3 1 1 SLIDING TUBE (493965-00) 3466 RON
4 1 1 BALL 7.0 (583890-00) 781 RON
5 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
6 1 1 SPRING BEVEL (871690) 558 RON
7 1 1 FELT SPINDLE (590306-00) 558 RON
8 1 1 SA COVER GEARBOX (MOULD) (N137915) 9282 RON
10 1 1 GEAR SWITCH (MOULD) (N190510) 1452 RON
11 1 1 SCREW TAPTITE M4 (324006-16) 2124 RON
12 1 1 CAP-1 (N034134) 105 RON
13 1 1 MODE SELECTOR SPRING (N074923) 558 RON
14 1 1 RELEASE BUTTON (MOULD) (N190511) 781 RON
19 1 1 NEEDLE BEARING HK2812RS (N149956) 3466 RON
20 1 1 CIRCLIP SW28 (488105-00) 781 RON
21 1 1 WASHER CLUTCH (N043423) 190 RON
30 1 1 CLUTCH SPRING (N060009) 3466 RON
31 1 1 BUSH CONNECT-CLUTCH/GEAR (N072203) 3466 RON
32 1 1 SA BEVEL GEAR/SHAFT/BALL BRG (SERVICE) (N290001) 26730 RON
33 1 1 BEARING BALL 6906 (479478-00) 4472 RON
34 1 1 WASHER SPINDLE (N043424) 190 RON
35 1 1 CIRCLIP SW26 1.5MM (488390-00) 558 RON
36 1 1 SA SPINDLE NQCC (SERVICE) (N288224) 22144 RON
37 1 1 RING O 12 X 4 (323711-02) 558 RON
38 1 1 NQCC PIECE BEAT DCH (SERVICE) (492808-00) 3466 RON
39 1 1 GUIDE BEAT PIECE (1005804-00) 1229 RON
40 1 1 RING. CATCH cod vechi 870890 (N451068) 1117 RON
41 1 1 WASHER CATCH (327087-00) 1788 RON
42 1 1 RING SNAP 22.5 (323762-07) 558 RON
43 1 1 SERVICE KIT RAM (SERVICE) (N178363) 4472 RON
44 1 1 RING O DYNAMIC 13X3 (N114827) 781 RON
45 1 1 HOLLOW PISTON DCH (SERVICE) (492822-00) 11519 RON
46 1 1 PIN-BALL DCH (SERVICE) (492823-00) 4472 RON
47 1 1 SA CRANK SHAFT (SERVICE) (N288223) 17335 RON
48 1 2 BEARING BALL cod vechi 477133-00 (N168103) 1788 RON
49 1 2 SPRING TRANSMISSION cod vechi 575021-00 (N466046 ) 558 RON
50 1 1 COLLAR TRANSMISSION D-SHAPE (N150085) 1788 RON
60 1 2 RING. SNAP 8 (323763-10) 781 RON
61 1 2 GEAR 3M MACHINE ALPHA20 (SERVICE) (492828-00) 10512 RON
62 1 2 BEARING (330003-40) 3018 RON
63 1 1 PIN (590312-00) 781 RON
64 1 1 PLATE TRANSMISSION COD VECHI 575022-00 (NA210726) 190 RON
66 1 2 PIN CYLINDER 8*18 AVS (575032-00) 893 RON
67 1 1 SPRING TOP AVS (575030-00) 558 RON
68 1 1 SPRING BOTTOM AVS (479313-00) 558 RON
69 1 1 CLAMSHELL PAIR 18V 1P (SERVICE) (N288220) 14315 RON
70 1 27 SCREW PLSTIC THD FORM M4.06X18 (330019-80) 558 RON
71 1 1 STEEL-LATCH DCH ZODIAC (N094649) 105 RON
73 1 1 MOUNT TERM BLOCK SPRING (MOULD) (N122099) 558 RON
74 1 1 SA SWITCH+MODULE 18V 1P EU KIT (SERVICE) (N288210) 70239 RON
75 1 1 F-R BAR DCH ZODIAC (N072124) 781 RON
76 1 1 SA HOUSING PAIR 3MODE (SERVICE) (N288219) 9282 RON
77 1 1 FELT (582865-00) 558 RON
78 1 1 WASHER 12X18X1.2 (1006725-00) 781 RON
79 1 2 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
80 1 1 323711-34 - Indisponibil
81 1 1 MODE SELECTOR LEVER (575025-00) 3466 RON
85 1 1 SPRING (N119679) 558 RON
90 1 1 MAGNET cod vechi 648124-00 (N230576) 15993 RON
91 1 1 ARMATURE DCH 18V DCH (SERVICE) (N392987) 25164 RON
92 1 2 BALL BEARING 695 (N217452) 3018 RON
94 1 1 BEARING COVER FL (N076342) 781 RON
95 1 1 SA BRUSH RING 1 PIECE DCH (SERVICE) (N384037) 5591 RON
100 1 1 SIDEHANDLE (N112156) 12861 RON
101 1 1 DEPTH STOP (580787-00) 893 RON
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
821 1 1 RATING PLATE DCH243 EU TYPE01 (N231517) 1452 RON
826 1 1 LABEL PERFORM PROTECT 42MMX14MM (N196274) 781 RON
861 1 1 KITBOX DCH ZODIAC (MOULD) (576657-05) 15993 RON
866 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
