Top » Piese de schimb » PIESE DEWALT » DCD980 Type 10

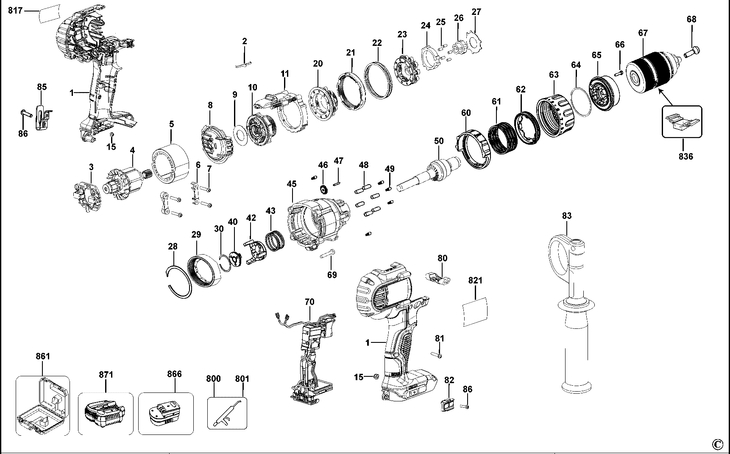

DCD980 CORDLESS DRILL Type 10
[DCD980 Type 10]
DCD980 CORDLESS DRILL Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA CLAMSHELL 18V WELD (SERVICE) (N377757) 10512 RON
2 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
3 1 1 SA BRUSH CARD (SERVICE) (N012060) 5031 RON
4 1 1 SA MOTOR 18V (SERVICE) (N268001) 15993 RON
5 1 1 SA MAGNET RING (SERVICE) (N012055) 1891 RON
6 1 2 BEARING CAP (mould) (N007948) 558 RON
7 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
8 1 1 BAFFLE (MOULD) (N142938) 1452 RON
9 1 1 PLATE BAFFLE (654925-00) 781 RON
10 1 1 SA 1ST REDUCTION (SERVICE) (N016359) 10512 RON
11 1 1 SA SHIFTING BUTTON (SERVICE) (N016366) 7940 RON
15 1 2 NUT STOP ELASTIC M3 X 0.5 (330021-11) 558 RON
20 1 1 SA 2ND REDUCTION (SERVICE) (N016360) 7940 RON
21 1 1 SA 2ND REDUCTION RING GEAR (SERVICE) (N016367) 3466 RON
22 1 1 WAVE FORM SPRING (N038862) 1788 RON
23 1 1 SA 3RD REDUCTION (SERVICE) (N016361) 6821 RON
24 1 1 SA RING LOCK (SERVICE) (N016370) 3466 RON
25 1 5 PIN 3MM SPINDLE LOCK (654110-00) 558 RON
26 1 1 SA ANVIL DOUBLE D (SERVICE) (N016365) 1788 RON
27 1 1 PLATE RETAINING (652378-00) 558 RON
28 1 1 SNAP RING (650474-00) 781 RON
29 1 1 SA 3RD REDUCTION RING GEAR (SERVICE) (N016362) 3018 RON
30 1 1 SNAP RING (650475-00) 558 RON
40 1 1 SA CAM PLATE (SERVICE) (N016368) 3466 RON
42 1 1 DRILL LOCK HEAT TREATED (N080691) 2795 RON
43 1 1 SPRING DRILL LOCK (650455-00) 558 RON
45 1 1 SA GEARCASE DRIL DRIVER ZRP (SERVICE) (N107987) 1891 RON
46 1 1 PINION. MODE (N111054) 558 RON
47 1 1 PIN ROLLER (629085-00) 558 RON
48 1 6 PIN ROUND (650471-00) 781 RON
49 1 5 DETENT (326467-00) 558 RON
50 1 1 SA SPINDLE DD (SERVICE) (N012066) 10512 RON
60 1 1 MODE SELECTOR DRL/DRVR (MOULD) (650415-00) 190 RON
61 1 1 SPRING CLUTCH (655532-00) 1452 RON
62 1 1 NUT CLUTCH ADJUSTING (652380-00) 1229 RON
63 1 1 CLUTCH COLLAR (650459-00SV) 3466 RON
64 1 1 COLLAR WASHER (N015955) 558 RON
65 1 1 ENDCAP (650491-00) 2347 RON
66 1 3 SCREW MAGFORM (650418-00) 558 RON
67 1 1 CHUCK KEYLESS (N242399) 23598 RON
68 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
69 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
70 1 1 N359039 - Indisponibil
70 1 1 SA ZRP 18V SWITCH + CLAMSHELL EMI (SERV) (N384405) 51337 RON
80 1 1 FWD/REV BUTTON FOR XRP/ZRP (MOULD) (N091392) 781 RON
81 1 13 SCREW PLASTITE (682211-00) 781 RON
82 1 1 MAGNET HOLDER (N095778) 3466 RON
83 1 1 SIDE HANDLE (650421-00) 6821 RON
85 1 1 BELT HOOK (N086039) 1788 RON
86 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
800 1 1 GREASE (N017298) 4825 RON
801 1 1 GREASE (429698-00) 62298 RON
817 1 1 LABEL EU 18V (N096996) 558 RON
821 1 1 LABEL RATING DCD980 -EURO (N091009) 558 RON
836 1 1 559661-99 - Indisponibil
836 1 1 596004-99 - Indisponibil
861 1 1 SA KITBOX ZODIAC USTI (MOULD) (N096816) 17335 RON
866 1 2 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
866 1 2 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
