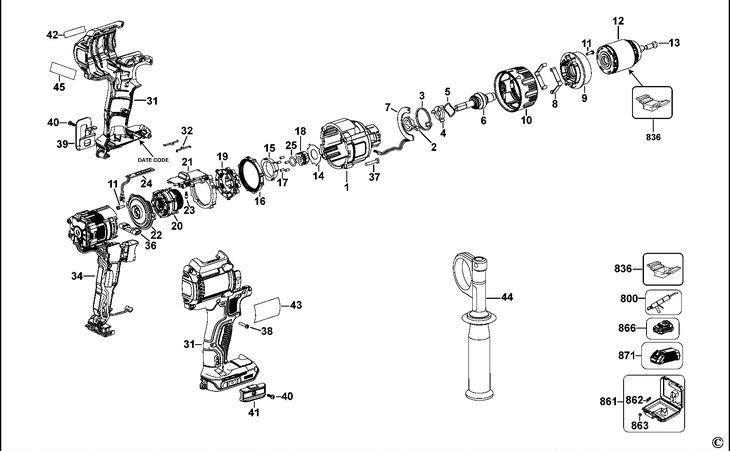

DCD937 CORDLESS DRILL Type 1
[DCD937 Type 1]
DCD937 CORDLESS DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 GEARCASE SA (N376087) 11519 RON
2 1 1 RAMP RATCHET (N146719) 893 RON
3 1 1 TORSION SPRING (N316079) 558 RON
4 1 1 FIXED RATCHET (N149367) 105 RON
5 1 1 NESTED WAVY WASHER (N269741) 558 RON
6 1 1 SPINDLE SA (N336167) 7940 RON
7 1 1 SENSOR (N376088) 7940 RON
8 1 2 DETENT SPRING (N165352) 781 RON
9 1 1 END CAP (N161216) 3466 RON
10 1 1 SA CLUTCH COLLAR HD (N172594) 3018 RON
11 1 5 M3 SCREW THREAD FORMING (N281559) 558 RON
12 1 1 CHUCK KEYLESS (N242399) 23598 RON
13 1 1 CHUCK SCREW.SPECIAL (N243859) 558 RON
14 1 1 PLATE RETAINING (652378-00) 558 RON
15 1 1 LOCKING RING (N375852) 2347 RON
16 1 1 GEAR (N375864) 190 RON
17 1 5 PIN 3MM SPINDLE LOCK (654110-00) 558 RON
18 1 1 ANVIL (N375869) 2124 RON
19 1 1 GEAR SA (N375865) 4137 RON
20 1 1 GEAR SA (N375866) 12861 RON
21 1 1 SLIDER SA (N375867) 4137 RON
22 1 1 BAFFLE SA (N375868) 893 RON
23 1 1 DETENT (326467-00) 558 RON
24 1 1 SENSOR (N376089) 4472 RON
25 1 1 O RING VITON (N309119) 781 RON
31 1 1 CLAMSHELL SET (N228821) 9282 RON
32 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
34 1 1 MOTOR SA (N389443) 80865 RON
36 1 1 ZRP2 FWD REV BAR (N167664) 558 RON
37 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
38 1 8 SCREW PLASTITE (682211-00) 781 RON
39 1 1 BELT HOOK (N086039) 1788 RON
40 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
41 1 1 MAGNET HOLDER (N095778) 3466 RON
42 1 1 LABEL (N249161) 558 RON
43 1 1 RATING PLATE (N257800) 558 RON
44 1 1 PLASTIC SIDE HANDLE SA (N221312) 4137 RON
45 1 1 LABEL (N317859) 558 RON
800 1 1 GREASE (N017298) 4825 RON
836 1 1 SERVICE TOOL (N354959) 11519 RON
836 1 1 596004-99 - Indisponibil
836 1 1 559661-99 - Indisponibil
861 1 1 KITBOX (N200697) 15993 RON
861 1 1 N312359 - Indisponibil
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 SA ZODIAC BATTERY 14.4V 4AH (SERVICE) (N195932) 67443 RON
866 1 1 N394622 - Indisponibil
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
