DCD935 COMBINATION UNIT Type 11
[DCD935 Type 11]

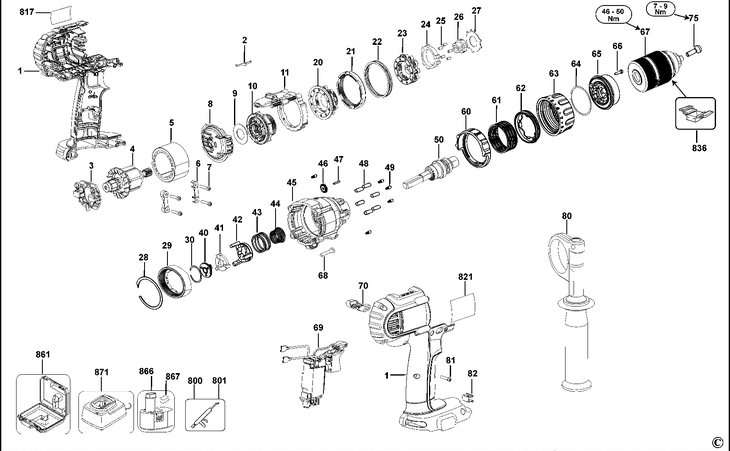

DCD935 COMBINATION UNIT Type 11
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA PACKED HOUSING 14.4V (SERVICE) (N266523) 10512 RON
2 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
3 1 1 SA BRUSH CARD (SERVICE) (N012060) 5031 RON
4 1 1 SA MOTOR 14V (SERVICE) (N268000) 17335 RON
5 1 1 SA MAGNET RING (SERVICE) (N012055) 1891 RON
6 1 2 BEARING CAP (mould) (N007948) 558 RON
7 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
8 1 1 BAFFLE (MOULD) (N142938) 1452 RON
9 1 1 PLATE BAFFLE (654925-00) 781 RON
10 1 1 SA 1ST REDUCTION (SERVICE) (N016359) 10512 RON
11 1 1 SA SHIFTING BUTTON (SERVICE) (N016366) 7940 RON
20 1 1 SA 2ND REDUCTION (SERVICE) (N016360) 7940 RON
21 1 1 SA 2ND REDUCTION RING GEAR (SERVICE) (N016367) 3466 RON
22 1 1 WAVE FORM SPRING (N038862) 1788 RON
23 1 1 SA 3RD REDUCTION (SERVICE) (N016361) 6821 RON
24 1 1 SA RING LOCK (SERVICE) (N016370) 3466 RON
25 1 5 PIN 3MM SPINDLE LOCK (654110-00) 558 RON
26 1 1 SA ANVIL DOUBLE D (SERVICE) (N016365) 1788 RON
27 1 1 PLATE RETAINING (652378-00) 558 RON
28 1 1 SNAP RING (650474-00) 781 RON
29 1 1 SA 3RD REDUCTION RING GEAR (SERVICE) (N016362) 3018 RON
30 1 1 SNAP RING (650475-00) 558 RON
40 1 1 SA CAM PLATE (SERVICE) (N016368) 3466 RON
41 1 1 SA RATCHET FIXED (SERVICE) (N016369) 1788 RON
42 1 1 DRILL LOCK HEAT TREATED (N080691) 2795 RON
43 1 1 SPRING DRILL LOCK (650455-00) 558 RON
44 1 1 SPRING HAMMER RETURN (650448-00) 558 RON
45 1 1 SA GEARCASE COMBI (SERVICE) (N016364) 17335 RON
46 1 1 PINION. MODE (N111054) 558 RON
47 1 1 PIN ROLLER (629085-00) 558 RON
48 1 6 PIN ROUND (650471-00) 781 RON
49 1 5 DETENT (326467-00) 558 RON
50 1 1 SA SPINDLE HD EURO ZRP (SERVICE) (N107985) 12861 RON
60 1 1 MODE SELECTOR (MOULD) (650460-00) 190 RON
61 1 1 SPRING CLUTCH (655532-00) 1452 RON
62 1 1 NUT CLUTCH ADJUSTING (652380-00) 1229 RON
63 1 1 CLUTCH COLLAR (650459-00SV) 3466 RON
64 1 1 COLLAR WASHER (N015955) 558 RON
65 1 1 ENDCAP (650491-00) 2347 RON
66 1 3 SCREW MAGFORM (650418-00) 558 RON
67 1 1 CHUCK KEYLESS (N242399) 23598 RON
68 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
69 1 1 SA SWITCH (SERVICE) (N012051) 28296 RON
69 1 1 SWITCH 2765w/EMI (SERVICE) (N171838) 29862 RON
70 1 1 FWD REV MID BUTTON FOR 2765 (MOULD) (650414-00) 781 RON
75 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
80 1 1 SIDE HANDLE (650421-00) 6821 RON
81 1 13 SCREW PLASTITE (682211-00) 781 RON
82 1 1 CLIP BIT HOLDER (148354-03) 558 RON
800 1 1 GREASE (N017298) 4825 RON
801 1 1 GREASE (429698-00) 62298 RON
817 1 1 LABEL ID (PRINT) (N028034) 558 RON
821 1 1 RATING LABEL DCD935 TY11 (PRINT) (N117941) 558 RON
836 1 1 559662-99 - Indisponibil
836 1 1 559661-99 - Indisponibil
836 1 1 596004-99 - Indisponibil
861 1 1 KITBOX 7 INJ MOULD CORDLESS 18V (652204-00) 20467 RON
866 1 2 BATTERY NIMH 18V 2.6AH (SERVICE) (1006628-00) 103346 RON
866 1 2 14.4V LI-ION DE9140 SLEEP MODE (SERVICE) (N058103) 134776 RON
867 1 1 CAP (645221-00) 558 RON
871 1 1 SA CHARGER 7.2-18V LI-ON GB (SERVICE) (N015877) 53015 RON
