Top » Piese de schimb » PIESE DEWALT » DCD920 Type 11

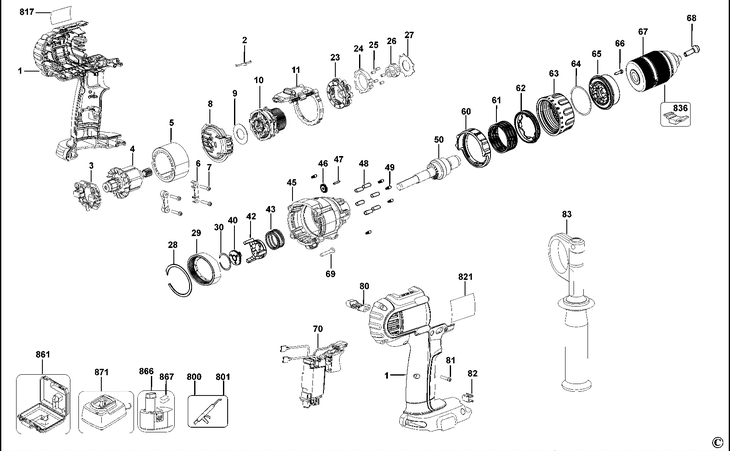

DCD920 C'LESS DRILLDRIVER Type 11
[DCD920 Type 11]
DCD920 C'LESS DRILLDRIVER Type 11
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA PACKED HOUSING 18V (SERVICE) (N266519) 10512 RON
2 1 2 SPEED SELECTOR DETENT SPRING (N014681) 558 RON
3 1 1 SA BRUSH CARD (SERVICE) (N012060) 5031 RON
4 1 1 SA MOTOR 18V (SERVICE) (N268001) 15993 RON
5 1 1 SA MAGNET RING (SERVICE) (N012055) 1891 RON
6 1 2 BEARING CAP (mould) (N007948) 558 RON
7 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
8 1 1 BAFFLE (MOULD) (N142938) 1452 RON
9 1 1 PLATE BAFFLE (654925-00) 781 RON
10 1 1 SA PACKED GEAR SA (SERVICE) (N266524) 34336 RON
11 1 1 SA PACKED SLIDER (SERVICE) (N266525) 17335 RON
23 1 1 SA PACKED GEAR SA (SERVICE) (N266526) 17335 RON
24 1 1 SA RING LOCK (SERVICE) (N016370) 3466 RON
25 1 5 PIN 3MM SPINDLE LOCK (654110-00) 558 RON
26 1 1 SA ANVIL DOUBLE D (SERVICE) (N016365) 1788 RON
27 1 1 PLATE RETAINING (652378-00) 558 RON
28 1 1 SNAP RING (650474-00) 781 RON
29 1 1 SA PACKED GEAR (SERVICE) (N266527) 3018 RON
30 1 1 SNAP RING (650475-00) 558 RON
40 1 1 SA CAM PLATE (SERVICE) (N016368) 3466 RON
42 1 1 DRILL LOCK HEAT TREATED (N080691) 2795 RON
43 1 1 SPRING DRILL LOCK (650455-00) 558 RON
45 1 1 SA GEARCASE DRL/DVR (SERVICE) (N016363) 17335 RON
46 1 1 PINION. MODE (N111054) 558 RON
47 1 1 PIN ROLLER (629085-00) 558 RON
48 1 6 CLUTCH PIN (N021544) 781 RON
49 1 5 DETENT (326467-00) 558 RON
50 1 1 SA SPINDLE DD (SERVICE) (N012066) 10512 RON
60 1 1 MODE SELECTOR DRL/DRVR (MOULD) (650415-00) 190 RON
61 1 1 SPRING CLUTCH (655532-00) 1452 RON
62 1 1 NUT CLUTCH ADJUSTING (652380-00) 1229 RON
63 1 1 CLUTCH COLLAR (650459-00SV) 3466 RON
64 1 1 COLLAR WASHER (N015955) 558 RON
65 1 1 ENDCAP (650491-00) 2347 RON
66 1 3 SCREW MAGFORM (650418-00) 558 RON
67 1 1 CHUCK KEYLESS (N242399) 23598 RON
68 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
69 1 4 SCREW PLSTC THD FORM M3.5X19 T15 (330019-52) 558 RON
70 1 1 SWITCH 2765w/EMI (SERVICE) (N171838) 29862 RON
80 1 1 FWD REV MID BUTTON FOR 2765 (MOULD) (650414-00) 781 RON
81 1 13 SCREW PLASTITE (682211-00) 781 RON
82 1 1 CLIP BIT HOLDER (148354-03) 558 RON
83 1 1 SIDE HANDLE (650421-00) 6821 RON
800 1 1 GREASE (N017298) 4825 RON
801 1 1 GREASE (429698-00) 62298 RON
817 1 1 LABEL ID (PRINT) (N028034) 558 RON
821 1 1 RATING LABEL DCD920 TY11 (PRINT) (N176169) 558 RON
836 1 1 559661-99 - Indisponibil
836 1 1 596004-99 - Indisponibil
861 1 1 SA KIT BOX (392088-01) 9282 RON
866 1 2 BATTERY NIMH 18V 2.6AH (SERVICE) (1006628-00) 103346 RON
866 1 2 N425667 - Indisponibil
867 1 1 CAP (645221-00) 558 RON
871 1 1 SA CHARGER 7.2-18V LI-ON GB (SERVICE) (N015877) 53015 RON
