Top » Piese de schimb » PIESE DEWALT » DCD790 Type 1

DCD790 CORDLESS DRILL Type 1
[DCD790 Type 1]
DCD790 CORDLESS DRILL Type 1
Click pentru a mari

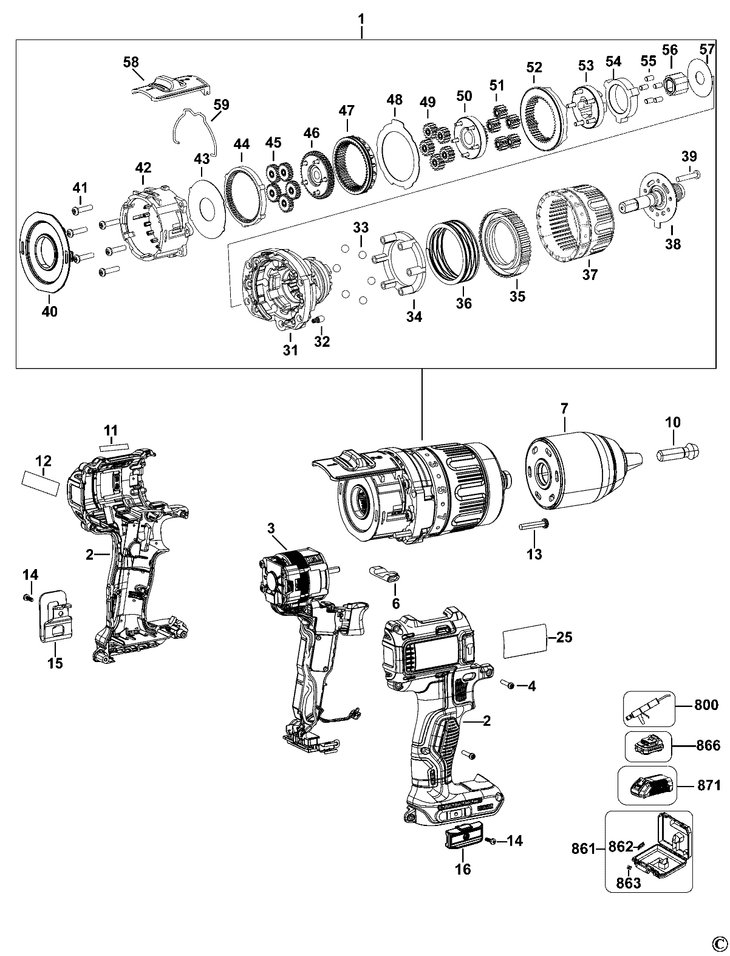

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N287496) 28296 RON
2 1 1 CLAMSHELL SET (N181495) 9282 RON
3 1 1 MOTOR and SWITCH SA cod vechi N257100 (N434176) 80865 RON
4 1 7 SCREW PLASTITE (682211-00) 781 RON
6 1 1 FORWARD/REVERSE BAR (N079835) 781 RON
7 1 1 CHUCK KEYLESS Jacobs 4000 Series - Non-C (N196034) 1891 RON
10 1 1 SCREW FOR CHUCK (N092854) 781 RON
11 1 1 LABEL (N237999) 558 RON
12 1 1 LABEL (N298039) 558 RON
13 1 4 SCREW M3.12X16 T10 (N377990) 558 RON
14 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
15 1 1 BELT HOOK (N086039) 1788 RON
16 1 1 MAGNET HOLDER (N095778) 3466 RON
25 1 1 RATING PLATE (N218572) 558 RON
31 1 1 GEARCASE SA (N299702) 3466 RON
32 1 1 DETENT (326467-00) 558 RON
33 1 6 BALL STEEL (386690-00) 558 RON
34 1 1 CLUTCH PLATE (N036370) 2124 RON
35 1 1 CLUTCH NUT (PURCH) (N036372) 105 RON
36 1 1 SPRING CLUTCH (N077956) 6821 RON
37 1 1 CLUTCH COLLAR BL DRILL DRIVER (N181496) 2124 RON
38 1 1 SPINDLE SA (N110038) 6821 RON
39 1 6 SCREW (N039795) 558 RON
40 1 1 TRANSMISSION PLATE (N148081) 781 RON
41 1 6 SCREW M3 12X13 (N075506) 558 RON
42 1 1 ZODIAC GEARCASE (PURCH) (N033869) 1117 RON
43 1 1 FLAT BACKING PLATE (N063567) 781 RON
44 1 1 1ST REDUCTION RING GEAR (N030988) 1117 RON
45 1 5 1ST REDUCTION PLANET (N030999) 781 RON
46 1 1 CARRIER SA (N124371) 190 RON
47 1 1 2ND REDUCTION RING GEAR (N031079) 2124 RON
48 1 1 CLUTCH WASHER (N032409) 781 RON
49 1 5 2ND REDUCTION PLANET (N031080) 558 RON
50 1 1 CARRIER SA (N122400) 1452 RON
51 1 5 3RD REDUCTION PLANET (N031083) 558 RON
52 1 1 3RD REDUCTION GEAR FLANGED (N078410) 2124 RON
53 1 1 CARRIER SA (N122401) 1788 RON
54 1 1 LOCKING RING (N022985) 2795 RON
55 1 5 ROLLER (N093416) 558 RON
56 1 1 ANVIL ASSEMBLY (N157720) 2124 RON
56 1 1 ANVIL ASSEMBLY (N157720) 2124 RON
57 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
58 1 1 SA SHIFTER (PURCH) (N035051) 1229 RON
59 1 1 SHIFTER WIREFORM (N035441) 558 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
861 1 1 N312361 - Indisponibil
861 1 1 N312360 - Indisponibil
861 1 1 KITBOX (N197072) 15993 RON
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 N394624 - Indisponibil
866 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
866 1 1 SA ZODIAC BATTERY 18V 4AH (SERVICE) (N195933) 78740 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
