Top » Piese de schimb » PIESE DEWALT » DCD776 Type 10

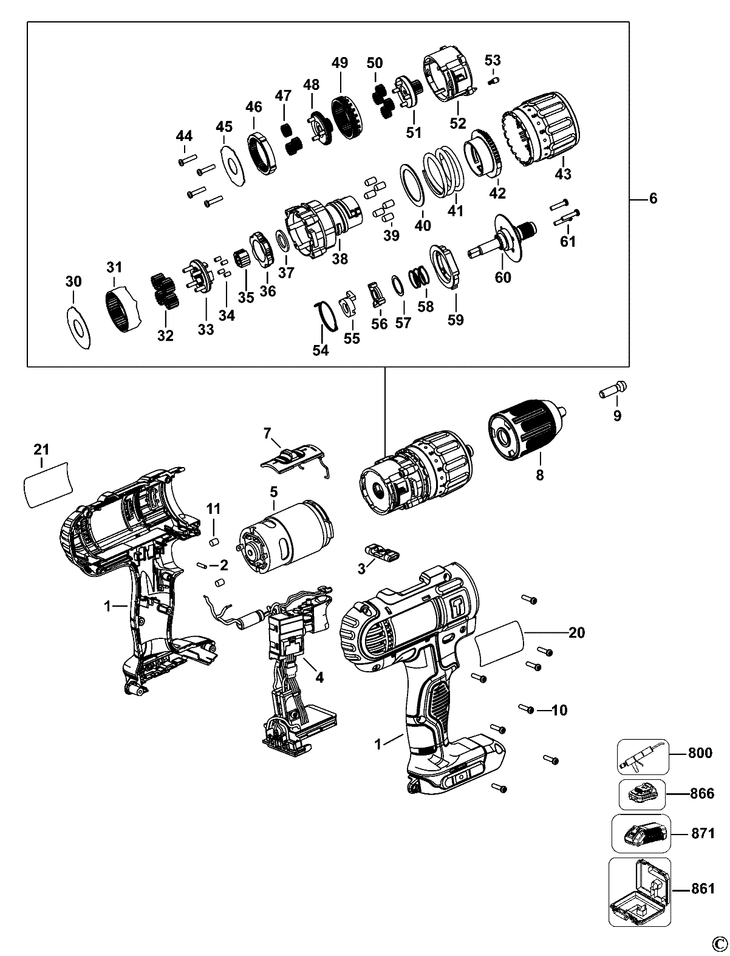

DCD776 CORDLESS DRILL Type 10
[DCD776 Type 10]
DCD776 CORDLESS DRILL Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 N428190 - Indisponibil
2 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
3 1 1 ACTUATOR FWD/REV (N151983) 781 RON
4 1 1 SWITCH SA (N366619) 34336 RON
5 1 1 MOTOR SA (N376649) 15993 RON
6 1 1 TRANSMISSION SA (N376646) 26730 RON
7 1 1 SELECTOR SA (N153906) 1117 RON
8 1 1 WEIDA SG13 CHUCK cod vechi N230360 (N472497) 14315 RON
9 1 1 SCREW FOR CHUCK (N092854) 781 RON
10 1 8 SCREW PLASTITE (682211-00) 781 RON
11 1 2 PLUG (N015397) 558 RON
20 1 1 LABEL RATING DCD776C2-QW/GB TY10 (N372780) 781 RON
21 1 1 BRAND LABEL (N309544) 558 RON
30 1 1 PLATE (N225459) 558 RON
31 1 1 GEAR (N215912) 1229 RON
32 1 4 GEAR (N215913) 558 RON
33 1 1 SA CARRIER 3RD RED (N362740) 190 RON
34 1 4 PIN (N236379) 558 RON
35 1 1 ANVIL (N218992) 781 RON
36 1 1 LOCKING RING (N209232) 1452 RON
37 1 1 WASHER (N223513) 558 RON
38 1 1 HOUSING SA (N376650) 2795 RON
39 1 12 CLUTCH PIN (N253280) 781 RON
40 1 1 WASHER (N256699) 781 RON
41 1 1 SPRING (N210954) 893 RON
42 1 1 NUT HAMMER (N260199) 105 RON
43 1 1 CLUTCH COLLAR (N237359) 2124 RON
44 1 4 SCREW PLASTITE PHILIPS HEAD (N317559) 558 RON
45 1 1 PLATE (N225458) 558 RON
46 1 1 GEAR (N215917) 1117 RON
47 1 3 GEAR (N215916) 558 RON
48 1 1 SA CARRIER 1ST RED (N362719) 1229 RON
49 1 1 GEAR (N256760) 190 RON
50 1 4 GEAR (N215916) 558 RON
51 1 1 SA CARRIER 2ND RED (N362739) 1229 RON
52 1 1 HOUSING (N218316) 781 RON
53 1 1 DETENT (326467-00) 558 RON
54 1 1 TORSION SPRING (N237139) 558 RON
55 1 1 RAMO RATCHET (N236540) 2124 RON
56 1 1 LOWER RATCHET (N236579) 1788 RON
57 1 1 BEARING WASHER (N276970) 558 RON
58 1 1 COMPRESSION SPRING (N237919) 558 RON
59 1 1 DETENT (N366639) 893 RON
60 1 1 SPINDLE SA (N376651) 5591 RON
61 1 3 SCREW (N036457) 558 RON
861 1 1 SA KITBOX XR13 1P (MOULD) (N364880) 10512 RON
866 1 1 SA DCB183-XJ SERVICE EURO (SERVICE) (N314783) 80865 RON
866 1 1 ZODIAC BATT 18V COMPACT BULK (SERVICE) (N123282) 45185 RON
866 1 1 BATTERY 18V - 1.3AH (N379111) 45297 RON
871 1 1 CHARGER GB cod vechi N385685 (N450537) 28296 RON
