DCD737 CORDLESS DRILL Type 10
[DCD737 Type 10]
DCD737 CORDLESS DRILL Type 10

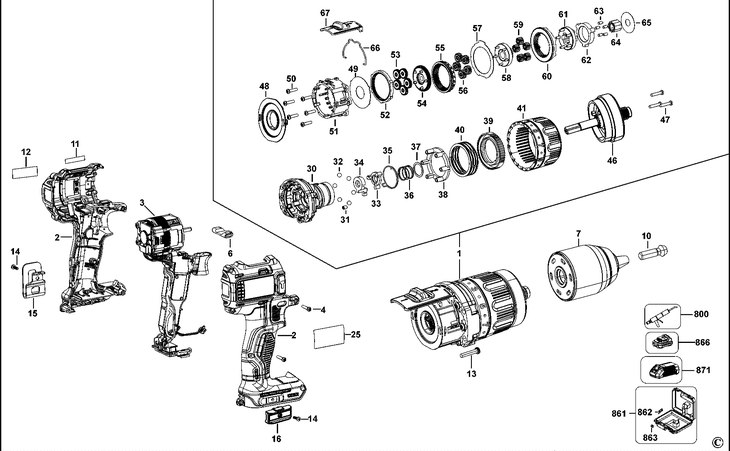

Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N287497) 3592 RON
2 1 1 SA HOUSINGS BRUSHLESS HAMMER DRILL 14V (N181498) 9282 RON
3 1 1 MOTOR & SWITCH SA (N265760) 74937 RON
4 1 7 SCREW PLASTITE (682211-00) 781 RON
6 1 1 FORWARD/REVERSE BAR (N079835) 781 RON
7 1 1 CHUCK KEYLESS Jacobs 4000 COD VECHI N442696 (N485661) 23598 RON
10 1 1 SCREW FOR CHUCK (N092854) 781 RON
11 1 1 LABEL (N249161) 558 RON
12 1 1 LABEL (N298039) 558 RON
13 1 4 SCREW M3.12X16 T10 (N377990) 558 RON
14 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
15 1 1 BELT HOOK (N086039) 1788 RON
16 1 1 MAGNET HOLDER (N095778) 3466 RON
25 1 1 N399941 - Indisponibil
30 1 1 GEARCASE SA (N299719) 4472 RON
31 1 1 DETENT (326467-00) 558 RON
32 1 6 BALL STEEL (386690-00) 558 RON
33 1 1 LOWER RATCHET (N047986) 190 RON
34 1 1 RAMP RATCHET (N047987) 2347 RON
35 1 1 SPRING TORSION (N047989) 558 RON
36 1 1 COMP.SPRING (N047988) 558 RON
37 1 1 BEARING WASHER (N047985) 558 RON
38 1 1 CLUTCH PLATE (N063688) 2124 RON
39 1 1 CLUTCH NUT (PURCH) (N036372) 105 RON
40 1 1 SPRING CLUTCH (N077956) 6821 RON
41 1 1 CLUTCH COLLAR BL HAMMERDRILL (N181497) 2795 RON
46 1 1 SPINDLE SA (N110039) 9282 RON
47 1 3 SCREW PLASTITE (682211-00) 781 RON
48 1 1 TRANSMISSION PLATE (N148081) 781 RON
49 1 1 FLAT BACKING PLATE (N063567) 781 RON
50 1 6 SCREW M3 12X13 (N075506) 558 RON
51 1 1 ZODIAC GEARCASE (PURCH) (N033869) 1117 RON
52 1 1 1ST REDUCTION RING GEAR (N030988) 1117 RON
53 1 5 1ST REDUCTION PLANET (N030999) 781 RON
54 1 1 CARRIER SA (N124371) 190 RON
55 1 1 2ND REDUCTION RING GEAR (N031079) 2124 RON
56 1 5 2ND REDUCTION PLANET (N031080) 558 RON
57 1 1 CLUTCH WASHER (N032409) 781 RON
58 1 1 CARRIER SA (N122400) 1452 RON
59 1 5 3RD REDUCTION PLANET (N031083) 558 RON
60 1 1 3RD REDUCTION GEAR FLANGED (N078410) 2124 RON
61 1 1 CARRIER SA (N122401) 1788 RON
62 1 1 LOCKING RING (N022985) 2795 RON
63 1 5 ROLLER (N093416) 558 RON
64 1 1 ANVIL ASSEMBLY (N157720) 2124 RON
64 1 1 ANVIL ASSEMBLY (N157720) 2124 RON
65 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
66 1 1 SHIFTER WIREFORM (N035441) 558 RON
67 1 1 SA SHIFTER (PURCH) (N035051) 1229 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
861 1 1 KITBOX (N197072) 15993 RON
861 1 1 N312360 - Indisponibil
861 1 1 N312361 - Indisponibil
862 1 2 LATCH (H1500082520) 1117 RON
863 1 2 LATCH (P910190) 3466 RON
866 1 1 SA ZODIAC BATTERY 14.4V 4AH (SERVICE) (N195932) 67443 RON
866 1 1 N394622 - Indisponibil
866 1 1 BATTERY 14.4V - 2.0AH (N342079) 59725 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
