DCD735L CORDLESS DRILL Type 1
[DCD735L Type 1]
DCD735L CORDLESS DRILL Type 1
Click pentru a mari

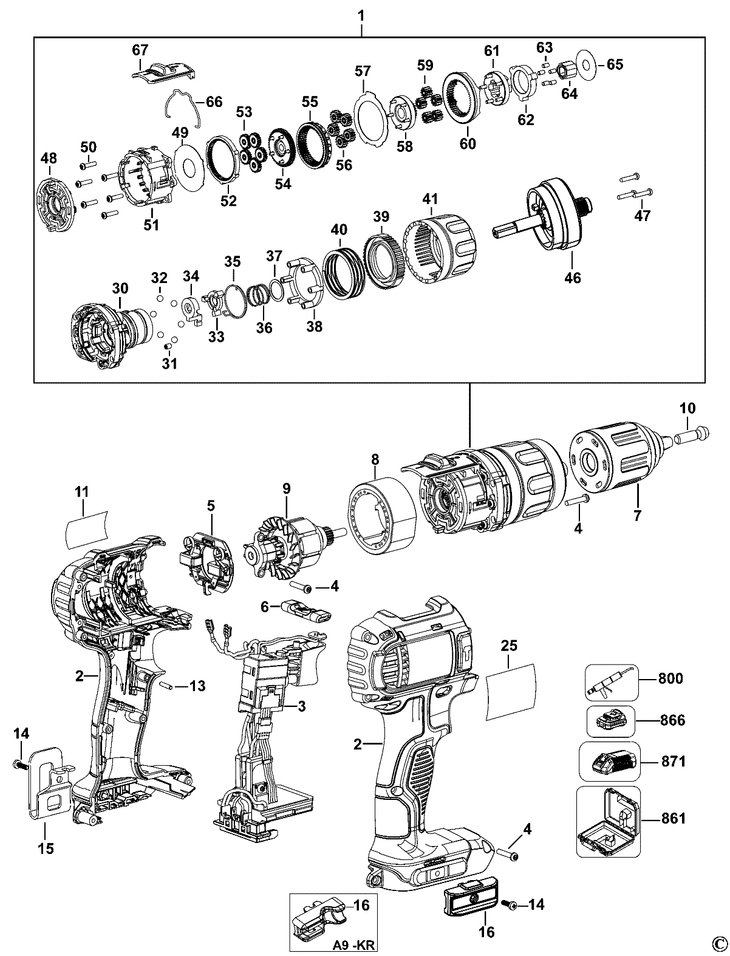

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 TRANSMISSION SA (N110035) 23598 RON
2 1 1 14.4V COMPACT SA HMR HOUSING (MOULD) (N075817) 9282 RON
2 1 1 SA HSG EMI DCD735 T10 WELD (SERVICE) (N377753) 9282 RON
3 1 1 SA ZCD 14V SWITCH + CLAMSHELL HDD (SERV) (N384403) 43731 RON
4 1 12 SCREW PLASTITE (682211-00) 781 RON
5 1 1 BRUSH PLATE SA (N109433) 5591 RON
6 1 1 FWD/REV BAR ( PURCH) (N039788) 781 RON
7 1 1 CHUCK KEYLESS (N092409) 14315 RON
8 1 1 MAGNET (N109712) 15993 RON
9 1 1 ARMATURE SA (N110037) 14315 RON
10 1 1 SCREW FOR CHUCK (N092854) 781 RON
11 1 1 BRAND LABEL (N093952) 558 RON
13 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
14 1 2 BELT HOOK SCREW M3 (N042665) 558 RON
15 1 1 BELT HOOK (N086039) 1788 RON
16 1 1 MAGNET HOLDER (N095778) 3466 RON
25 1 1 RATING PLATE (N091252) 558 RON
30 1 1 HOUSING (N124588) 3466 RON
31 1 1 DETENT (326467-00) 558 RON
32 1 6 BALL STEEL (386690-00) 558 RON
33 1 1 LOWER RATCHET (N047986) 190 RON
34 1 1 RAMP RATCHET (N047987) 2347 RON
35 1 1 SPRING TORSION (N047989) 558 RON
36 1 1 COMP.SPRING (N047988) 558 RON
37 1 1 BEARING WASHER (N047985) 558 RON
38 1 1 CLUTCH PLATE (N063688) 2124 RON
39 1 1 CLUTCH NUT (PURCH) (N036372) 105 RON
40 1 1 SPRING CLUTCH (N077956) 6821 RON
41 1 1 CLUTCH COLLAR (N047992) 2124 RON
46 1 1 SPINDLE SA (N110039) 9282 RON
47 1 3 SCREW PLASTITE (682211-00) 781 RON
48 1 1 MOTOR TRANMISSION ADAPTOR (N022994) 893 RON
49 1 1 FLAT BACKING PLATE (N063567) 781 RON
50 1 6 SCREW M3 12X13 (N075506) 558 RON
51 1 1 ZODIAC GEARCASE (PURCH) (N033869) 1117 RON
52 1 1 1ST REDUCTION RING GEAR (N030988) 1117 RON
53 1 5 1ST REDUCTION PLANET (N030999) 781 RON
54 1 1 CARRIER SA (N124371) 190 RON
55 1 1 2ND REDUCTION RING GEAR (N031079) 2124 RON
56 1 5 2ND REDUCTION PLANET (N031080) 558 RON
57 1 1 CLUTCH WASHER (N032409) 781 RON
58 1 1 CARRIER SA (N122400) 1452 RON
59 1 5 3RD REDUCTION PLANET (N031083) 558 RON
60 1 1 3RD REDUCTION GEAR FLANGED (N078410) 2124 RON
61 1 1 CARRIER SA (N122401) 1788 RON
62 1 1 LOCKING RING (N022985) 2795 RON
63 1 5 ROLLER (N093416) 558 RON
64 1 1 ANVIL ASSEMBLY (N157720) 2124 RON
65 1 1 SPINDLE LOCK WASHER (N090435) 558 RON
66 1 1 SHIFTER WIREFORM (N035441) 558 RON
67 1 1 SA SHIFTER (PURCH) (N035051) 1229 RON
800 1 1 GREASE MOLYCOTE G68 100 GRAM TUBE (808386-00) 46863 RON
861 1 1 KITBOX (N087499) 1891 RON
866 1 1 SA ZODIAC BATTERY 14.4V 4AH (SERVICE) (N195932) 67443 RON
871 1 1 SA ZODIAC ACC.CHARGER DCB105-GB01 (SERV) (N120341) 74937 RON
