Top » Piese de schimb » PIESE DEWALT » DCD731 Type 1

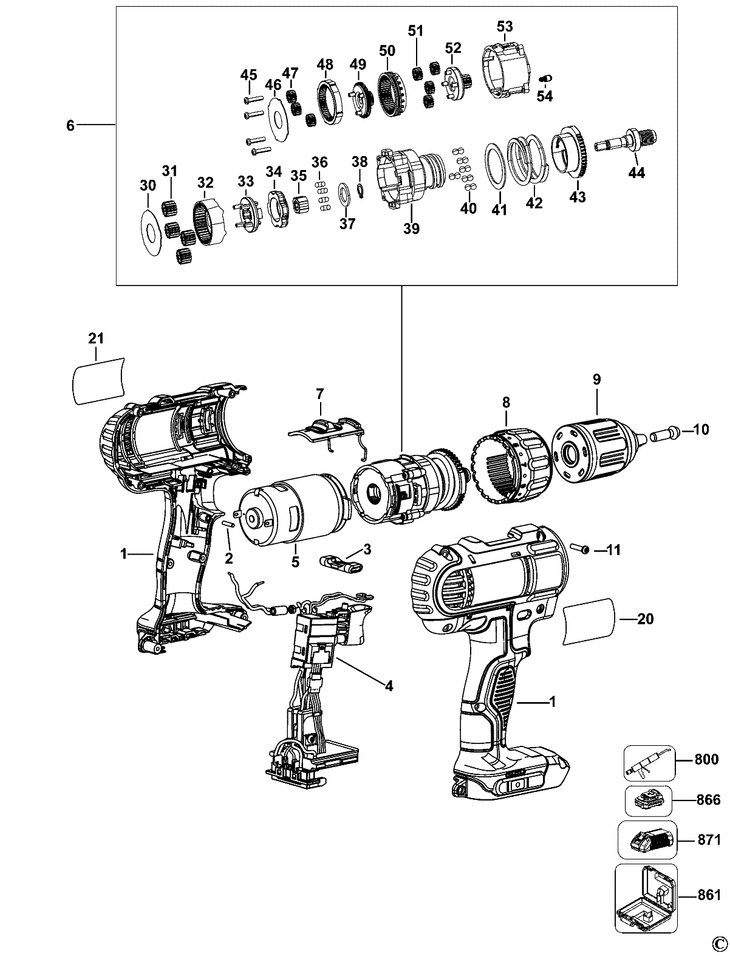

DCD731 CORDLESS DRILL Type 1
[DCD731 Type 1]
DCD731 CORDLESS DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (N371819) 7940 RON
2 1 1 ROLL PIN 2.5 X 10.9 (N071836) 558 RON
3 1 1 ACTUATOR FWD/REV (N151983) 781 RON
5 1 1 MOTOR SA (N382016) 14315 RON
6 1 1 TRANSMISSION SA (N279940) 17335 RON
7 1 1 SELECTOR SA (N153906) 1117 RON
8 1 1 COLLAR (N207252) 1788 RON
9 1 1 N311560 - Indisponibil
10 1 1 SCREW FOR CHUCK (N092854) 781 RON
11 1 8 SCREW PLASTITE (682211-00) 781 RON
21 1 1 BRAND LABEL (N309544) 558 RON
30 1 1 PLATE (N225459) 558 RON
31 1 4 GEAR (N215913) 558 RON
32 1 1 GEAR (N215912) 1229 RON
33 1 1 SA CARRIER 3RD RED (N362740) 190 RON
34 1 1 LOCKING RING (N209232) 1452 RON
35 1 1 ANVIL (N218992) 781 RON
36 1 4 PIN (N236379) 558 RON
37 1 1 WASHER (N223513) 558 RON
38 1 1 RETAINER (N034090) 558 RON
39 1 1 HOUSING SA (N376647) 190 RON
40 1 12 BALL STEEL (386690-00) 558 RON
41 1 1 WASHER (N256699) 781 RON
42 1 1 SPRING (N210954) 893 RON
43 1 1 NUT (N203616) 893 RON
44 1 1 SPINDLE SA (N376648) 5031 RON
45 1 4 SCREW PLASTITE PHILIPS HEAD (N317559) 558 RON
45 1 4 SCREW (N036457) 558 RON
46 1 1 PLATE (N225458) 558 RON
47 1 3 GEAR (N215916) 558 RON
48 1 1 GEAR (N215917) 1117 RON
49 1 1 SA CARRIER 1ST RED (N362719) 1229 RON
50 1 1 GEAR (N256760) 190 RON
51 1 4 GEAR (N215916) 558 RON
52 1 1 SA CARRIER 2ND RED (N362739) 1229 RON
53 1 1 HOUSING (N218316) 781 RON
54 1 1 DETENT (326467-00) 558 RON
861 1 1 KITBOX (N237399) 15993 RON
