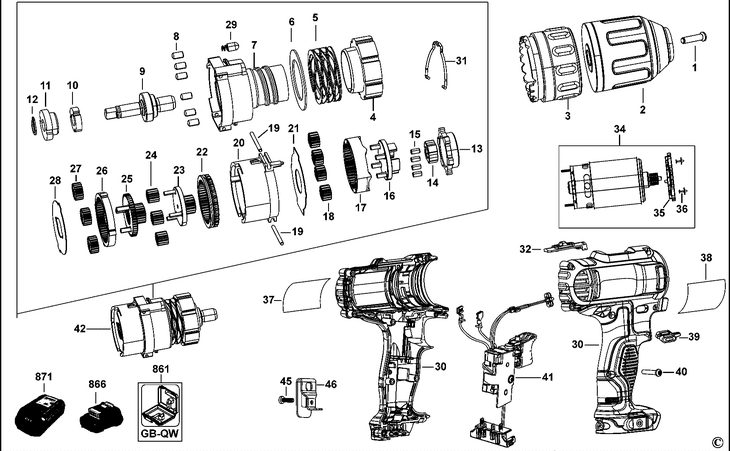

DCD710 CORDLESS DRILL Type 2
[DCD710 Type 2]
DCD710 CORDLESS DRILL Type 2
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW (N303381) 558 RON
2 1 1 CHUCK KEYLESS (N037542) 14315 RON
3 1 1 COLLAR (N034293) 1229 RON
4 1 1 ADJUSTER TORQUE (N032525) 893 RON
5 1 1 SPRING (N032418) 190 RON
6 1 1 WASHER (N032524) 781 RON
7 1 1 HOUSING (N032368) 105 RON
8 1 6 PIN.CONICAL (N032415) 558 RON
9 1 1 SPINDLE SA (N078596) 5031 RON
10 1 1 FELT SEAL (N043820) 558 RON
11 1 1 SLEEVE BEARING (N032761) 781 RON
12 1 1 RETAINER (N034090) 558 RON
13 1 1 LOCKING DEVICE (N032377) 2795 RON
14 1 1 ANVIL (N054706) 781 RON
15 1 4 ROLLER (N042040) 558 RON
16 1 1 CARRIER SA (N079008) 1117 RON
17 1 1 GEAR (N079009) 1788 RON
18 1 4 GEAR (N030759) 781 RON
19 1 2 PIN (N030767) 558 RON
20 1 1 HOUSING REAR (N030766) 893 RON
21 1 1 PLATE (N030761) 558 RON
22 1 1 GEAR (N079010) 190 RON
23 1 1 CARRIER SA (N079016) 1229 RON
24 1 3 GEAR (N030765) 558 RON
25 1 1 CARRIER SA (N079017) 1452 RON
26 1 1 GEAR (N079018) 1452 RON
27 1 3 GEAR (N017243) 558 RON
28 1 1 PLATE (N034093) 558 RON
29 1 1 DETENT (326467-00) 558 RON
30 1 1 CLAMSHELL SET (N031199) 5591 RON
31 1 1 WIRE STEEL (N037108) 558 RON
32 1 1 SELECTOR (N037111) 105 RON
34 1 1 N390475 - Indisponibil
35 1 1 PLATE (N034382) 558 RON
36 1 2 SCREW (330024-54) 558 RON
37 1 1 BRAND LABEL (N128489) 558 RON
39 1 1 ACTUATOR FWD/REV (N017247) 558 RON
40 1 9 SCREW PLASTITE (682211-00) 781 RON
41 1 1 N390480 - Indisponibil
42 1 1 TRANSMISSION SA (N075843) 20467 RON
45 1 1 BELT HOOK SCREW M3 (N042665) 558 RON
46 1 1 HOOK (N026657) 1788 RON
861 1 1 KITBOX (N075416) 12861 RON
866 1 1 BATTERY 10.8 - 1.5AH (N140056) 36797 RON
871 1 1 CHARGER 10.8V (N233361) 40599 RON
