DC945K CORDLESS DRILL Type 10
[DC945K Type 10]

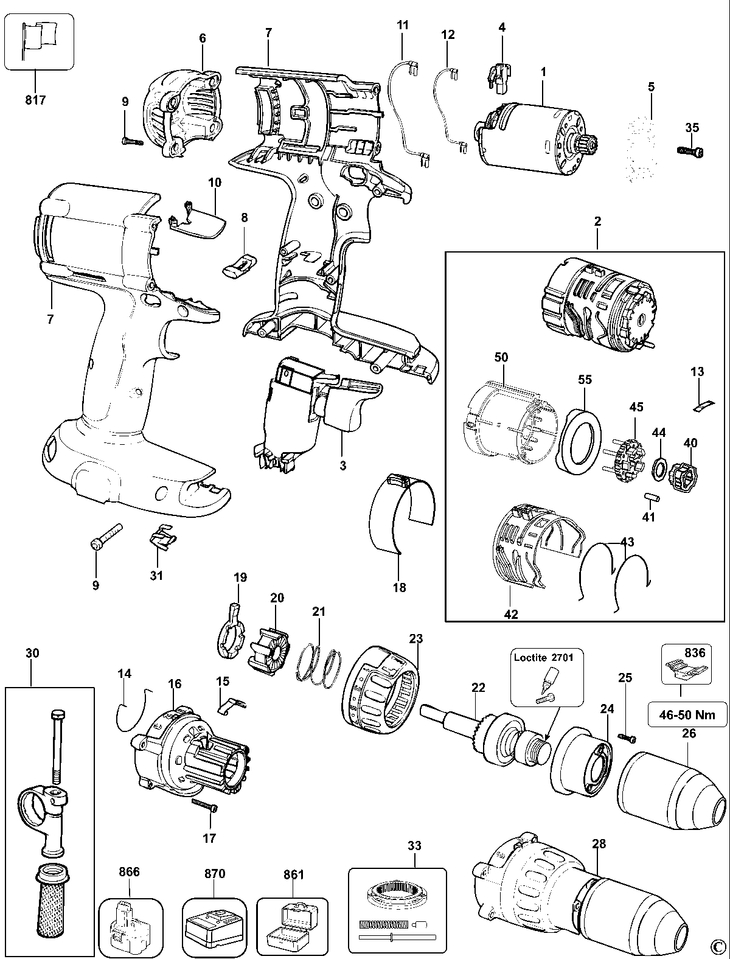

DC945K CORDLESS DRILL Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA MOTOR AND PINION 12V (SERVICE) (493508-00) 62298 RON
2 1 1 SA GEARBOX (SERVICE) (N021724) 39145 RON
3 1 1 SA 12V KIT SWITCH REWORKED (SERVICE) (N030556) 40599 RON
3 1 1 SA SWITCH 2715 (SERVICE) (N060484) 22144 RON
4 1 1 BRUSH PAIR SA (SUBA) (493511-00) 5031 RON
5 1 1 PLATE MOTOR ADAPTER (629172-00) 781 RON
6 1 1 CAP END (629823-00) 3018 RON
7 1 1 SA CLAMSHELL PAIR 12V (SERVICE) (493512-00) 14315 RON
8 1 1 FWD/REW BAR (633327-02) 781 RON
9 1 9 SCREW PLASTITE (682211-00) 781 RON
10 1 1 GUIDE MOTOR LEAD WIRE (636634-00) 781 RON
11 1 1 LEAD WIRE POS 14AWG (631282-01) 1229 RON
12 1 1 LEAD WIRE NEG 14AWG ANG TERM (631283-01) 1229 RON
13 1 1 DETENT SHIFTER (608060-00) 558 RON
14 1 1 SPRING CAM RETURN (399059-00) 558 RON
15 1 1 SPRING DETENT (395460-00) 558 RON
16 1 1 SA FRONT HOUSING COMBI (SERVICE) (493547-00) 9282 RON
17 1 4 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
18 1 1 SHROUD (629918-01) 781 RON
19 1 1 RING CAM (394545-00) 893 RON
20 1 1 RATCHET FIXED (394542-00) 2124 RON
21 1 1 SPRING COMPRESSION (394546-00) 558 RON
22 1 1 SA SPINDLE COMBI (SERVICE) (493573-00) 14315 RON
23 1 1 SA COLLAR COMBI ULTRASONIC (SERVICE) (1005638-00) 5031 RON
24 1 1 CAP METAL (ALUMINIUM) (609133-00) 1117 RON
25 1 4 SCREW PLASTIC THD FORM (330019-00) 558 RON
26 1 1 CHUCK (330075-90) 40599 RON
28 1 1 SA REPAIR KIT (SERVICE) (493575-00) 80865 RON
30 1 1 HANDLE SIDE (939794-02) 5591 RON
31 1 1 CLIP BIT HOLDER (148354-03) 558 RON
33 1 1 SA SERVICE KIT (SERVICE) (N021723) 7940 RON
35 1 2 SCREW TAPTITE (156179-01) 558 RON
40 1 1 ANVIL (394532-00) 1452 RON
41 1 5 PIN ROLLER (330041-43) 558 RON
42 1 1 SHIFTER CAM RING (629088-01) 893 RON
43 1 2 WIRE SHIFTER (629825-00) 558 RON
44 1 1 DAMPER (603689-00) 781 RON
45 1 1 SA CARRIER 3RD RED (PHANT) (629076-00) 2795 RON
50 1 1 000000-00 - Indisponibil
55 1 1 RETAINER SPINDLE LOCK (629078-00) 781 RON
817 1 1 LABEL BRAND (578037-00) 558 RON
836 1 1 559697-99 - Indisponibil
836 1 1 559661-99 - Indisponibil
836 1 1 559662-99 - Indisponibil
836 1 1 559665-99 - Indisponibil
861 1 1 KITBOX (640040-01) 1891 RON
866 1 1 BATTERY 12V - 2.6AH (1006626-00) 75943 RON
870 1 1 CHARGER NI-CAD-NIMH 7-18V -GB (SERVICE) (1006635-00) 70239 RON
