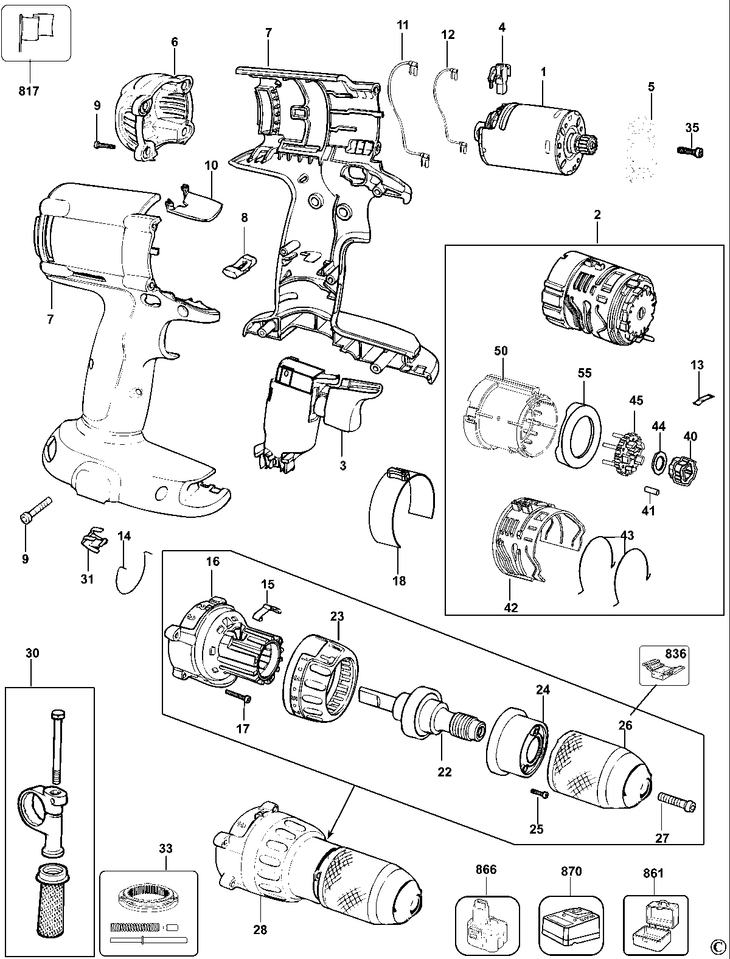

DC920K CORDLESS DRILL Type 10
[DC920K Type 10]
DC920K CORDLESS DRILL Type 10
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SA MOTOR AND PINION 18V (SERVICE) (493510-00) 51337 RON
2 1 1 SA GEARBOX (SERVICE) (N021724) 39145 RON
3 1 1 SA SWITCH 2715 REWORKED (SERVICE) (N030560) 26730 RON
4 1 1 BRUSH PAIR SA (SUBA) (493511-00) 5031 RON
5 1 1 PLATE MOTOR ADAPTER (629172-00) 781 RON
6 1 1 CAP END (629823-00) 3018 RON
7 1 1 SA CLAMSHELL PAIR 18V (SERVICE) (493514-00) 12861 RON
8 1 1 FWD/REW BAR (633327-02) 781 RON
8 1 1 FWD/REW BAR (633327-02) 781 RON
9 1 9 SCREW PLASTITE (682211-00) 781 RON
10 1 1 GUIDE MOTOR LEAD WIRE (636634-00) 781 RON
11 1 1 LEAD WIRE POS 14AWG (631282-01) 1229 RON
12 1 1 LEAD WIRE NEG 14AWG ANG TERM (631283-01) 1229 RON
13 1 1 DETENT SHIFTER (608060-00) 558 RON
14 1 1 SPRING CAM RETURN (399059-00) 558 RON
15 1 1 SPRING DETENT (395460-00) 558 RON
16 1 1 SA FRONT HOUSING D/D (SERVICE) (493548-00) 12861 RON
17 1 4 SCREW PLSTC THD FORM M3 12X25 (330019-62) 558 RON
18 1 1 SHROUD (629918-01) 781 RON
22 1 1 SA SPINDLE DRILL/DRIVER (SERVICE) (579727-00) 15993 RON
23 1 1 COLLAR ADJ. (629462-00) 4472 RON
24 1 1 CAP METAL (ALUMINIUM) (609133-00) 1117 RON
25 1 4 SCREW PLASTIC THD FORM (330019-00) 558 RON
26 1 1 CHUCK KEYLESS (N242399) 23598 RON
27 1 1 SCREW CHUCK (1/4-28 UNF-LH) (605256-02) 781 RON
28 1 1 SA REPAIR KIT D/D (SERVICE) (493576-00) 5484 RON
30 1 1 HANDLE SIDE (939794-02) 5591 RON
31 1 1 CLIP BIT HOLDER (148354-03) 558 RON
33 1 1 SA SERVICE KIT (SERVICE) (N021723) 7940 RON
35 1 2 SCREW TAPTITE (156179-01) 558 RON
40 1 1 ANVIL (394532-00) 1452 RON
41 1 5 PIN ROLLER (330041-43) 558 RON
42 1 1 SHIFTER CAM RING (629088-01) 893 RON
43 1 2 WIRE SHIFTER (629825-00) 558 RON
44 1 1 DAMPER (603689-00) 781 RON
45 1 1 SA CARRIER 3RD RED (PHANT) (629076-00) 2795 RON
50 1 1 000000-00 - Indisponibil
55 1 1 RETAINER SPINDLE LOCK (629078-00) 781 RON
817 1 1 LABEL BRAND (578037-00) 558 RON
836 1 1 559661-99 - Indisponibil
836 1 1 559697-99 - Indisponibil
861 1 1 KITBOX (640040-01) 1891 RON
866 1 1 BATTERY NIMH 18V 2.6AH (SERVICE) (1006628-00) 103346 RON
870 1 1 CHARGER NI-CAD-NIMH 7-18V -GB (SERVICE) (1006635-00) 70239 RON
