Top » Piese de schimb » PIESE DEWALT » DC616K Type 1

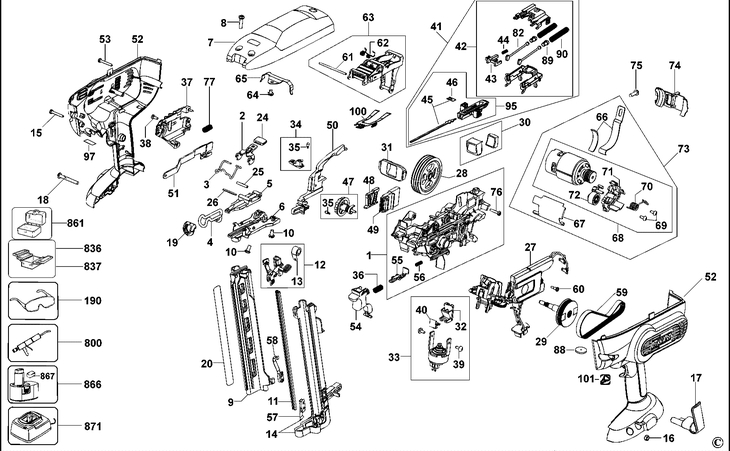

DC616K NAILER Type 1
[DC616K Type 1]
DC616K NAILER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (613852-00) 3592 RON
2 1 1 LATCH (395123-00) 2795 RON
3 1 1 WIRE STEEL (392216-00) 2795 RON
4 1 1 ACTUATOR (392198-00) 2124 RON
5 1 1 COVER (392210-00) 3466 RON
6 1 1 SE (392209-00) 25164 RON
7 1 1 COVER-TOP (633518-00SV) 17335 RON
8 1 3 SCREW (609932-02) 558 RON
9 1 1 MAGAZINE (392227-01) 15993 RON
10 1 4 SCREW M5X.8X10 MACHINE (609932-00) 558 RON
11 1 1 LINER (392193-01) 12861 RON
12 1 1 PUSH BLOCK (624748-01) 1891 RON
13 1 1 SPRING (392195-00) 781 RON
14 1 1 MAGAZINE (613818-01) 12861 RON
15 1 1 SCREW (330019-07) 558 RON
16 1 1 NUT (330015-04) 558 RON
17 1 1 HOOK (394102-00) 190 RON
18 1 2 SCREW TEMP (330045-19) 558 RON
19 1 1 RUBBER BOOT (616938-00) 1229 RON
20 1 1 RATING PLATE (N050560) 105 RON
24 1 1 GRIP (395093-00) 893 RON
25 1 1 ROLL PIN (330036-21) 558 RON
26 1 1 ROLL PIN (330036-27) 558 RON
27 1 1 CONTROL MODULE SA (643115-01) 74937 RON
28 1 1 WHEEL (623947-00) 15993 RON
29 1 1 SPINDLE SA (613835-00) 7940 RON
30 1 1 DAMPER (613869-00) 2124 RON
31 1 1 BUMPER (392240-00) 3466 RON
32 1 1 CLUTCH (392244-00) 6821 RON
33 1 1 SOLENOID ASSEMBLY (624709-00SV) 26730 RON
33 1 1 SOLENOID ASSEMBLY (624709-00SV) 26730 RON
34 1 1 PADDLE (N001917) 3466 RON
35 1 2 DETENT (326467-00) 558 RON
36 1 1 SPRING (653099-00) 1229 RON
37 1 1 CAGE (604480-00) 1788 RON
38 1 5 SCREW (613619-01) 781 RON
39 1 2 SCREW (330045-60) 558 RON
40 1 1 CLIP (621980-00) 781 RON
41 1 1 N391357 - Indisponibil
42 1 1 CARRIAGE SA (393217-00) 7940 RON
43 1 1 STOP (614577-00) 105 RON
44 1 1 SPRING (610243-00) 558 RON
45 1 1 BLADE SA (624742-00SV) 17335 RON
46 1 1 CLIP (392206-00) 781 RON
47 1 1 KNOB SA (613874-00) 1788 RON
48 1 1 ADJUSTER PLATE (392437-00) 893 RON
49 1 1 SLIDER (392438-00) 1117 RON
50 1 1 CONTACT BAR (393220-00SV) 23598 RON
51 1 1 LINK (396657-00) 2795 RON
52 1 1 CLAMSHELL SET (623375-00) 9282 RON
53 1 3 SCREW (330019-05) 558 RON
54 1 1 TRIGGER (613670-00) 2124 RON
55 1 1 LINKAGE SA (392201-00) 893 RON
56 1 1 SPRING (394314-00) 558 RON
57 1 1 CLIP (392252-00) 781 RON
58 1 1 RETAINER (392229-00) 781 RON
59 1 1 BELT DRIVE (392246-00) 7940 RON
60 1 1 SCREW (623407-00) 558 RON
61 1 1 PIN (395932-00) 781 RON
62 1 1 SPRING (394045-00) 893 RON
63 1 1 ARM (624717-00SV) 3124 RON
64 1 1 screw dw744 (330045-12) 558 RON
65 1 1 000000-00 - Indisponibil
66 1 1 STRAP (606837-01) 105 RON
67 1 1 RUBBER PAD (623181-00) 893 RON
68 1 1 MOTOR SA (613834-00) 23598 RON
69 1 2 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
70 1 1 SPRING (N044593) 190 RON
71 1 1 SUPPORT PLATE (397762-00) 190 RON
72 1 1 IDLER ASSEMBLY (630664-00SV) 3018 RON
73 1 1 MOTOR SA (624740-00) 29862 RON
74 1 1 CABLE GUIDE (392203-00) 1788 RON
75 1 1 SCREW (609932-01) 558 RON
76 1 5 SCREW (613619-00) 781 RON
77 1 1 SPRING (626698-00) 781 RON
82 1 2 BAND (392243-00) 2795 RON
88 1 1 DISC (624913-00) 190 RON
89 1 2 STOP (392242-00) 781 RON
90 1 2 SPRING (392236-02) 558 RON
95 1 1 DRIVER SA (392204-00SV) 9736 RON
97 1 1 LABEL (632383-00) 781 RON
100 1 1 PLATE (N015432) 190 RON
101 1 1 LABEL (N015371) 781 RON
190 1 1 GLASSES SAFETY DEWALT (609123-00) 5591 RON
800 1 1 GREASE (5140024-25) 9736 RON
836 1 1 559650-99 - Indisponibil
837 1 1 559650-99 - Indisponibil
861 1 1 KITBOX (633527-00) 29862 RON
866 1 1 BATTERY NIMH 18V 2.6AH (SERVICE) (1006628-00) 103346 RON
866 1 2 SA BATTERY PACK ( SERVICE ) (582627-00) 84332 RON
867 1 1 SAFETY CAP (608522-00) 558 RON
871 1 1 XRP3 CHARGER 240V UK (572576-00) 42277 RON
