Top » Piese de schimb » PIESE DEWALT » DC608 Type 1

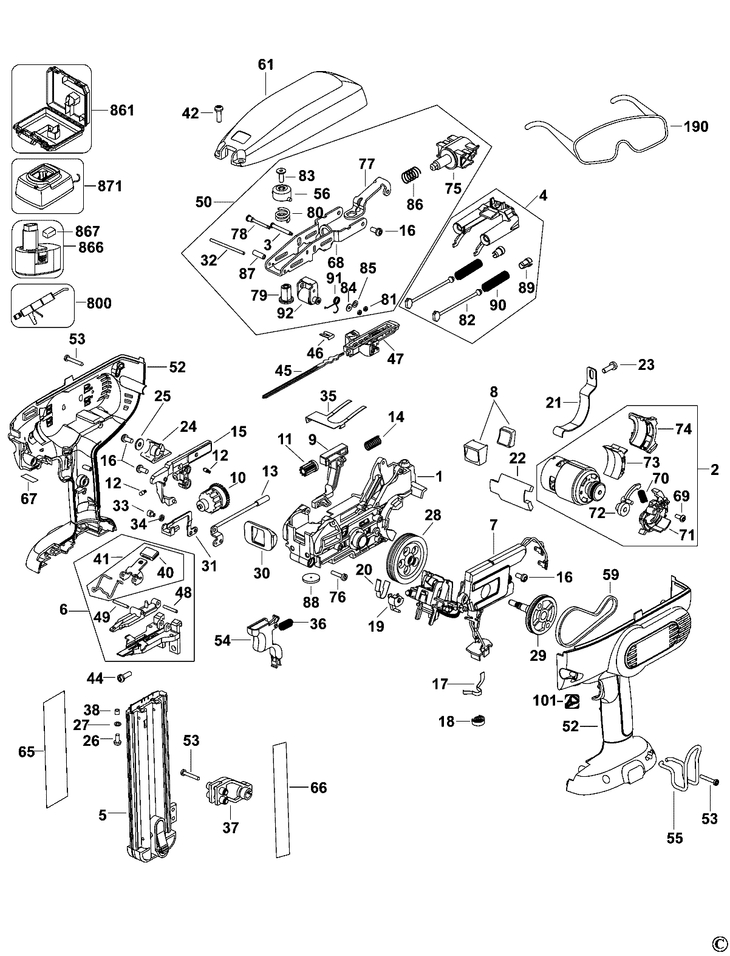

DC608 CORDLESS NAILER Type 1
[DC608 Type 1]
DC608 CORDLESS NAILER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (631990-00) 42277 RON
2 1 1 MOTOR & PINION (647712-00) 22144 RON
3 1 1 PIN (633207-00) 781 RON
4 1 1 RETURN DEVICE ASSEMBLY (648024-00SV) 1891 RON
5 1 1 MAGAZINE SA (646665-00) 34336 RON
6 1 1 NOSE SA (646666-00) 3124 RON
7 1 1 CONTROL MODULE SA (N010050) 62298 RON
8 1 1 DAMPER (613869-00) 2124 RON
9 1 1 CONTACT (637597-00) 2124 RON
10 1 1 KNOB (637596-00) 2124 RON
11 1 1 PINION (637599-00) 1788 RON
12 1 2 DETENT (326467-00) 558 RON
13 1 1 CONTACT (639284-00) 5591 RON
14 1 1 644507-00 - Indisponibil
15 1 1 COVER (637601-00) 2347 RON
16 1 10 SCREW (613619-03) 558 RON
17 1 1 LINK (638317-00) 893 RON
18 1 1 HUB (639070-00) 781 RON
19 1 1 LINK (639246-00) 781 RON
20 1 1 SPRING (639247-00) 781 RON
21 1 1 STRAP (638678-00) 893 RON
22 1 1 PAD (640432-00) 105 RON
23 1 1 SCREW (609932-01) 558 RON
24 1 1 PADDLE (641296-00) 1452 RON
25 1 1 WASHER (651644-00) 558 RON
26 1 2 SCREW (330045-69) 781 RON
27 1 2 WASHER (398218-00) 558 RON
28 1 1 FLYWHEEL (631987-00) 15993 RON
29 1 1 PULLEY SA (631995-00) 5031 RON
30 1 1 BUMPER (638469-00) 4137 RON
31 1 1 CONTACT (646254-00) 2124 RON
32 1 1 ROLLER SPINDLE (330041-61) 781 RON
33 1 1 SCREW (330045-68) 558 RON
34 1 1 WASHER (98197-03) 558 RON
35 1 1 PLATE (650225-00) 1117 RON
36 1 1 SPRING (653099-00) 1229 RON
37 1 1 CONNECTOR (639696-00) 1452 RON
38 1 2 BUSHING (395505-00) 781 RON
40 1 1 GRIP (395093-00) 893 RON
41 1 1 LATCH (607178-00) 3466 RON
42 1 1 SCREW (609932-01) 558 RON
44 1 2 SCREW (613619-02) 893 RON
45 1 1 DRIVER (635241-00) 9282 RON
46 1 1 CLIP (392206-00) 781 RON
47 1 1 PROFILE (632232-00) 22144 RON
48 1 1 ROLL PIN (330036-24) 558 RON
49 1 1 ROLL PIN (330036-22) 558 RON
50 1 1 SOLENOID ASSEMBLY (633204-00SV) 34336 RON
52 1 1 CLAMSHELL SET (648060-00) 15993 RON
53 1 5 SCREW (330019-05) 558 RON
54 1 1 TRIGGER (640344-00) 893 RON
55 1 1 HOOK (632382-00) 3466 RON
56 1 1 SPRING (644209-00) 3466 RON
59 1 1 BELT DRIVE (650935-00) 4472 RON
61 1 1 COVER (639123-00) 9282 RON
65 1 1 RATING PLATE (N050559) 781 RON
66 1 1 LABEL (623351-00) 781 RON
67 1 1 LABEL (632383-00) 781 RON
68 1 1 CARRIAGE (633206-00) 5591 RON
69 1 2 SCREW.TEMP (330045-05) 558 RON
70 1 1 SPRING (639189-00) 558 RON
71 1 1 TRANSMISSION ASSEMBLY (639186-00) 190 RON
72 1 1 IDLER ASSEMBLY (647713-00) 3466 RON
73 1 1 GUIDE (640444-00) 1117 RON
74 1 1 GUIDE (640455-00) 781 RON
75 1 1 SOLENOID ASSEMBLY 18V (633021-00) 9282 RON
76 1 5 SCREW (613619-00) 781 RON
77 1 1 SPRING (644206-00) 1229 RON
78 1 1 PIN (638872-00) 781 RON
79 1 1 POST (644205-00) 1788 RON
80 1 1 SPRING (644213-00) 781 RON
81 1 2 GROMMET (391814-00) 781 RON
82 1 2 BAND (392243-00) 2795 RON
83 1 1 SCREW THREAD FORMING (N001440) 558 RON
84 1 1 WASHER (330016-26) 558 RON
85 1 1 WASHER PLAIN 8.25X4.25X0.607 (330016-25) 558 RON
86 1 1 SPRING (644210-00) 558 RON
87 1 1 SLEEVE (645151-00) 781 RON
88 1 1 DISC (624913-00) 190 RON
89 1 2 STOP (392242-00) 781 RON
90 1 2 SPRING (392236-02) 558 RON
91 1 1 SPRING TORSION (N009845) 26730 RON
92 1 1 CARRIER SA (647895-00) 9282 RON
101 1 1 LABEL (N015371) 781 RON
190 1 1 SAFETY GLASSES (629042-01) 3466 RON
800 1 1 GREASE (5140024-25) 9736 RON
861 1 1 KITBOX (650354-00) 29862 RON
866 1 1 SA BATTERY PACK ( SERVICE ) (582627-00) 84332 RON
867 1 1 SAFETY CAP (608522-00) 558 RON
871 1 1 XRP3 CHARGER 240V UK (572576-00) 42277 RON
