Top » Piese de schimb » PIESE DEWALT » DC351KL Type 1 - EU

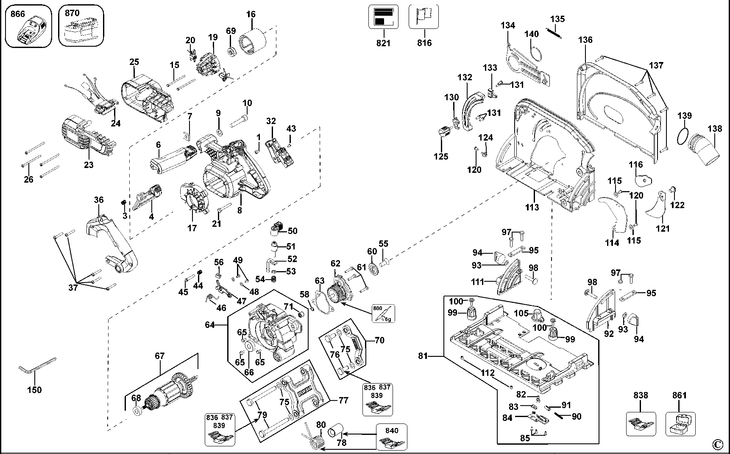

DC351KL CORDLESS PLUNGE SAW Type 1 - EU
[DC351KL Type 1 - EU]
DC351KL CORDLESS PLUNGE SAW Type 1 - EU
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SCREW PLASTIC 4 * 8 (330065-04) 558 RON
3 1 1 SPRING (1007210-00) 558 RON
4 1 1 SA LOCK LEVER AND BUTTON (493822-00) 6821 RON
6 1 1 BALE HANDLE (492062-00) 10512 RON
7 1 1 M8 BHANDLE PLATE (491035-00) 558 RON
8 1 1 HOUSING MOTOR (CORDLESS) (492475-00) 7940 RON
9 1 1 WASHER M8 X 16.8 X 1.6 (1005703-00) 558 RON
10 1 1 CAP SCREW M8X40 (949886-38) 105 RON
15 1 2 SCREW PLASTIC THD FORM M3.5X65 T15 (330019-25) 558 RON
16 1 1 SA MAGNET + RING (SERVICE) (1007580-00) 10512 RON
17 1 1 BAFFLE CORDLESS (492258-00) 2124 RON
19 1 1 SUPPORT BEARING (N171820) 2124 RON
20 1 2 BRUSH SA (610126-00) 2795 RON
21 1 4 SCREW (330045-18) 558 RON
23 1 1 CLAMSHELL 28V LH (494986-00) 4137 RON
24 1 1 SA WIRE HARNESS (SERVICE) (1007583-00) 46863 RON
25 1 1 CLAMSHELL 28V RH (494985-00) 4472 RON
26 1 4 SCREW (330065-12) 558 RON
32 1 1 SWITCH MARQUARDT (397182-00) 10512 RON
36 1 1 HANDLE COVER CORDLESS (491445-01) 4472 RON
37 1 7 SCREW PLSTC THD FORM M4X25 T20 (330065-09) 558 RON
43 1 4 SCREW MACHINE PAN HD (1007314-00) 558 RON
44 1 1 SPRING PLUNGE PIN (1005371-00) 781 RON
45 1 1 SA PLUNGE LOCK PIN (SA-REWORKED) (N019153) 2795 RON
46 1 1 SPRING-TORSION-PLUNGE LOCK PLATE (1006028-00) 781 RON
47 1 1 PLATE PLUNGE SAW (1006829-00) 893 RON
48 1 2 WASHER PLAIN (330016-01) 558 RON
49 1 2 SCREW M3X8 TAPTITE TORX PAN HEAD (1006719-00) 558 RON
50 1 1 BUTTON SPINDLE LOCK (493499-00) 893 RON
51 1 1 SPINDLE LOCK BULK PACKED (1009606-00) 10512 RON
52 1 1 PLATE SPINDLE LOCK (496979-00) 781 RON
53 1 1 CIRCLIP (370170) 558 RON
54 1 1 SPRING (1005444-00) 781 RON
55 1 1 SCREW CSK SOCKET M8 (490549-00) 558 RON
56 1 1 PLUNGE LOCK BUTTON (1007193-00) 781 RON
58 1 1 CIRCLIP (491838-00) 781 RON
60 1 1 OUTER FLANGE BLADE (490551-00) 2347 RON
61 1 3 SCREW (330045-07) 558 RON
62 1 1 SA GEARCASE COVER A GEAR (SERVICE) (1007370-00) 25164 RON
63 1 1 GEARCASE SEAL (491225-00) 781 RON
64 1 1 SERVICE GEARCASE (SERVICE) (1007383-00) 34336 RON
65 1 3 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
66 1 1 BEARING BALL (330003-96) 2795 RON
67 1 1 SA ARMATURE + BEARING DC351 (SERVICE) (1007585-00) 26730 RON
68 1 1 BEARING BALL (330003-60) 190 RON
69 1 1 BOOT (631563-00) 558 RON
70 1 1 SERVICE KIT (SERVICE) (1007372-00) 9282 RON
71 1 1 NEEDLE ROLLER (496697-00) 190 RON
75 1 4 BELVILLE WASHER (493529-00) 781 RON
76 1 2 SERVICE LINK PIN SHORT (SERVICE) (1007373-00) 3466 RON
77 1 1 SERVICE KIT (SERVICE) (1007374-00) 1891 RON
78 1 1 SPACER PLUNGE SPRING (1007325-00) 781 RON
79 1 1 SERVICE LINK PIN LONG (SERVICE) (1007375-00) 5591 RON
80 1 1 TORSION SPRING LOWER (491573-00) 2124 RON
81 1 1 SA BASE PLATE (496802-00) 34336 RON
82 1 1 ANTI-KICKBACK PIN (490687-00) 893 RON
83 1 1 SPRING CLIP (1005549-00) 1229 RON
84 1 1 ANTI-KICKBACK COVER (490702-00) 781 RON
85 1 3 SCREW CSK M3X8 (492088-00) 558 RON
90 1 1 AKB SPRING (491446-00) 781 RON
91 1 1 SPRING GUIDE (1005053-00) 781 RON
92 1 1 BEVEL HINGE REAR (490479-00) 2124 RON
93 1 2 WASHER M6 X 16.0 X 1.6 (1005704-00) 558 RON
94 1 2 SA KNOB (395889-00) 781 RON
95 1 2 HINGE PLATE (490877-00) 781 RON
97 1 4 Screw Metal (330045-15) 781 RON
98 1 2 BOLT CARRIAGE M6X30 (098128-40) 558 RON
99 1 2 RAIL KNOB ADJUSTER (496804-00) 781 RON
100 1 2 RAIL SCREW (496806-00) 781 RON
105 1 1 SA ANTI-KICK BACK BUTTON (1005943-00) 2795 RON
111 1 1 BEVEL HINGE FRONT (490478-00) 190 RON
112 1 2 PATCH LOCK SCREW (496698-00) 781 RON
113 1 1 INNER GUARD MACHINED (492119-00) 26730 RON
114 1 1 PLATE COVER (491542-00) 105 RON
115 1 2 WASHER M5X12.3X1.0 (1005219-00) 558 RON
116 1 1 COVER PLATE RETAINER (1007560-00) 558 RON
120 1 3 SCREW FLAT HEAD 7.8MM (389235-04) 781 RON
121 1 1 RIVING KNIFE (N018408) 2347 RON
122 1 1 SCREW BUTTON SOCKET M8X10 (153637-06) 558 RON
124 1 1 POINTER (MOULD) (490829-00) 781 RON
125 1 1 DEPTH ADJUSTOR KNOB (491151-00) 3018 RON
130 1 1 DEPTH ADJUSTOR POINTER (MOULD) (491170-00) 781 RON
131 1 5 SCALE SCREW (496621-00) 558 RON
132 1 1 DEPTH SCALE MEASUREMENT (491149-00) 1788 RON
133 1 1 DEPTH STOP (MOULD) (1008510-00) 2795 RON
134 1 1 RIVING KNIFE CARRIER (N018403) 2124 RON
135 1 1 RIVING KNIFE SPRING (490955-00) 781 RON
136 1 1 OUTER GUARD (purchased SA) (1006706-00) 22144 RON
137 1 5 SCREW (330045-07) 558 RON
138 1 1 DUST ADAPTER (490658-00) 3018 RON
139 1 1 O-RING (323711-58) 558 RON
140 1 1 RETAINING RING (629745-00) 893 RON
150 1 1 TABLE INSERT (A) KEY ALLEN 5MM (322929) Indisponibil Indisponibil
800 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
816 1 1 BRAND LABEL 28V (492112-01) 558 RON
821 1 1 RATING LABEL DC351 (492110-04) 2124 RON
836 1 1 559691-99 - Indisponibil
837 1 1 559695-99 - Indisponibil
838 1 1 559698-99 - Indisponibil
839 1 1 559696-99 - Indisponibil
840 1 1 596002-99 - Indisponibil
861 1 1 SA KITBOX PLUNGE SAW (SERVICE) (N089663) 34336 RON
866 1 1 CHARGER LI-ON 36V 1 HR -GB (SERVICE) (1006633-00) 129966 RON
870 1 1 000000-00 - Indisponibil
