Top » Piese de schimb » PIESE DEWALT » DC228KL Type 1

DC228KL ROTARY HAMMER DRILL Type 1
[DC228KL Type 1]

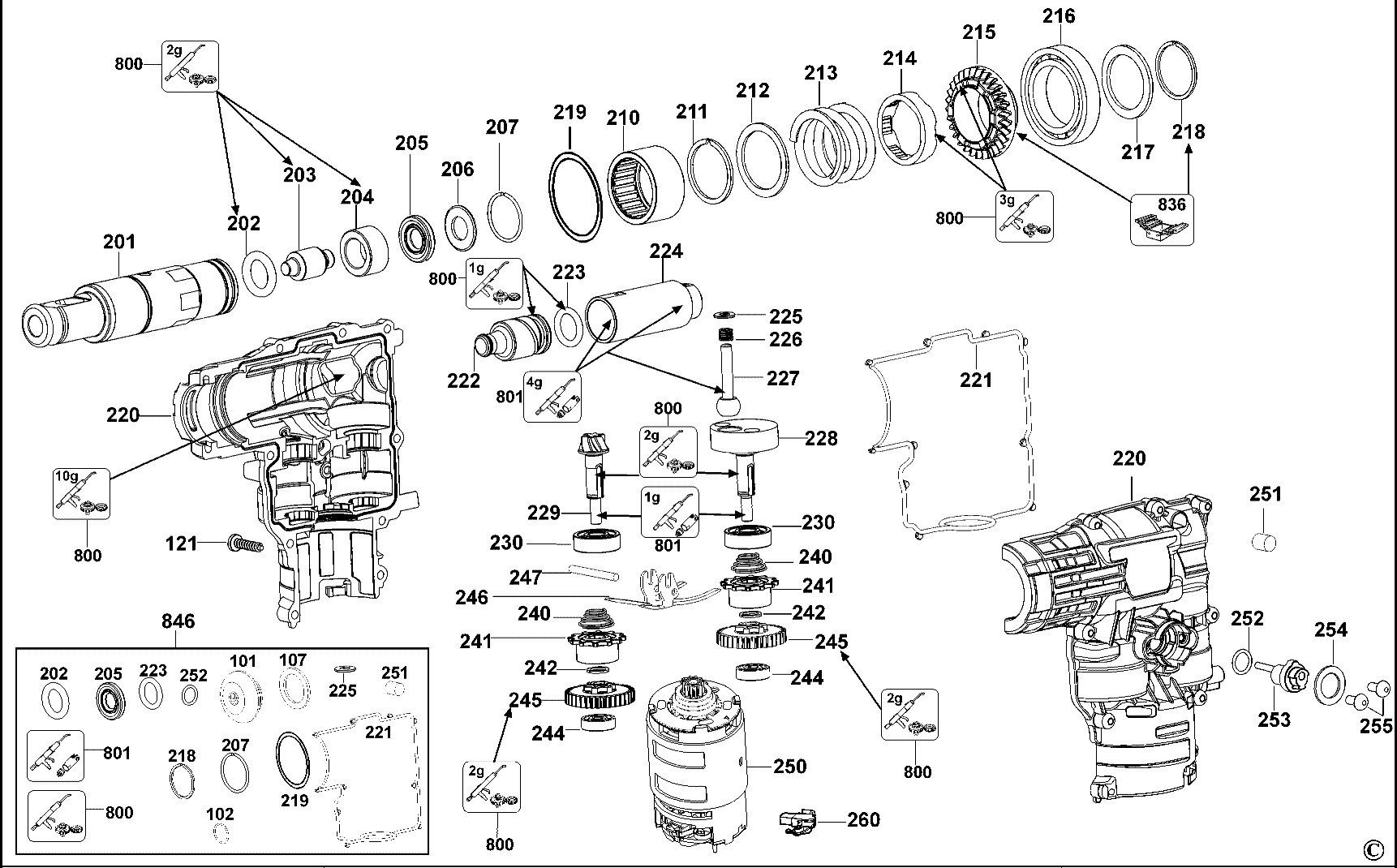

DC228KL ROTARY HAMMER DRILL Type 1
Click pentru a mari
Imagini suplimentare

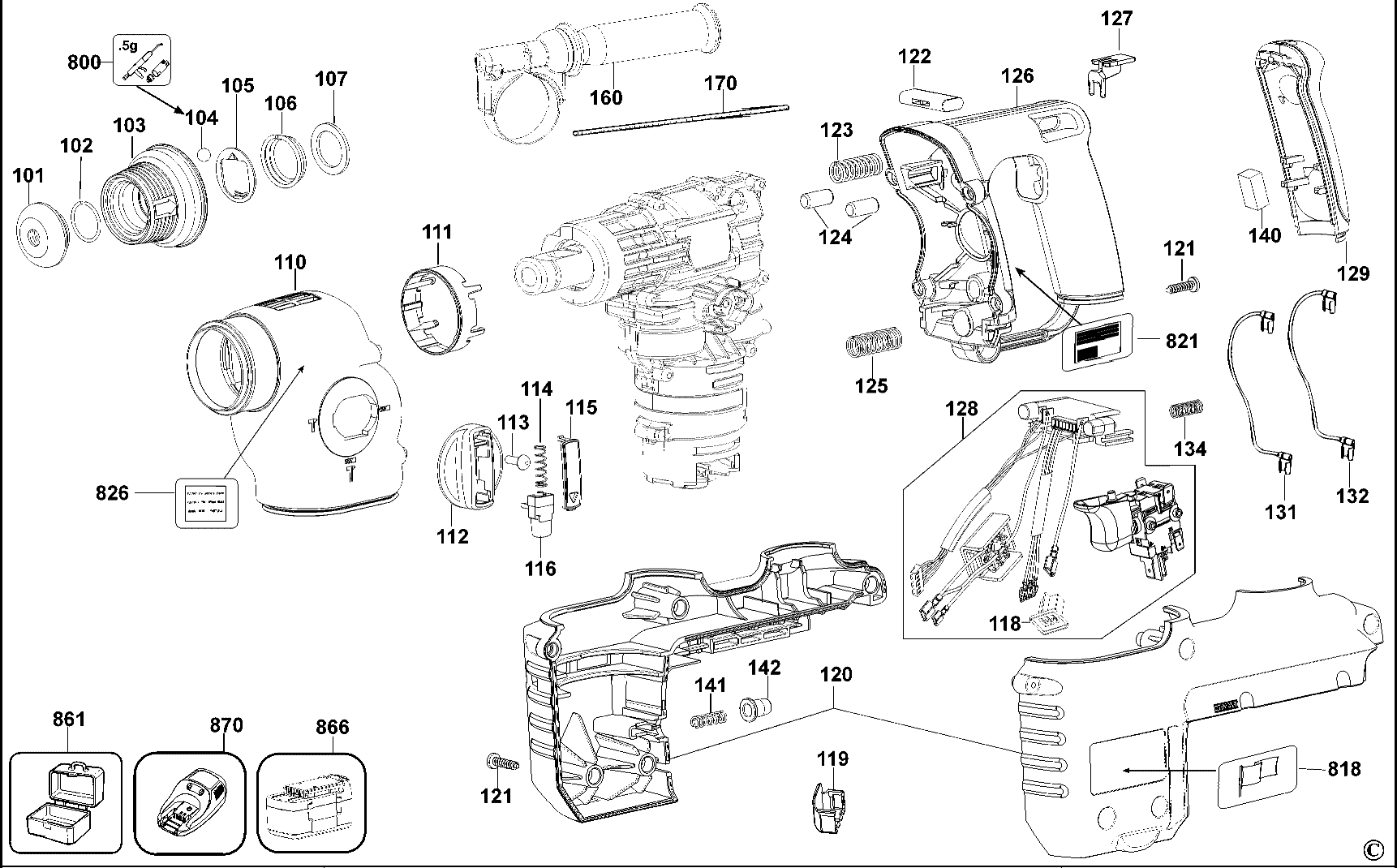

DC228KL ROTARY HAMMER DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
101 1 1 SEAL LIP (323489-00) 893 RON
102 1 1 RING SNAP 21 (579212-00) 781 RON
103 1 1 TUBE SLIDING (577928-00) 2795 RON
104 1 1 BALL 7.0 (583890-00) 781 RON
105 1 1 SDS BALL PLATE (WASHER SDS 1.4MM) (578387-00) 893 RON
106 1 1 SPRING BEVEL (871690) 558 RON
107 1 1 FELT SPINDLE (590306-00) 558 RON
110 1 1 COVER GEARBOX (574937-00) 7940 RON
111 1 1 SLEEVE CAP (490785-00) 781 RON
112 1 1 MODE SELECTOR KNOB (575023-00) 893 RON
113 1 1 SCREW TAPTITE M4 (324006-16) 2124 RON
114 1 1 SPRING PRESSURE MODESEL (478843-00) 558 RON
115 1 1 MODE SELECTOR CAP (575026-00) 558 RON
116 1 1 MODE SELECTOR RELEASE BUTTON (575024-00) 558 RON
118 1 1 PLUG INTERFACE (MOULD) (1005390-00) 781 RON
119 1 1 COVER PLUG INTERFACE ( MOULD) (1005093-00) 558 RON
120 1 1 SA BATTERY COVER 28V DCH (SERVICE) (492922-01) 7940 RON
121 1 21 SCREW (330065-08) 558 RON
122 1 1 F-R-LEVER SHORT (1005987-00) 558 RON
123 1 1 SPRING TOP AVS (575030-00) 558 RON
124 1 2 PIN CYLINDER 8*18 AVS (575032-00) 893 RON
125 1 1 SPRING BOTTOM AVS (479313-00) 558 RON
126 1 1 HANDLE OMEGA 3 36V (MOULD) (1006233-01) 6821 RON
127 1 1 LEVER BAR 36V (488182-00) 558 RON
128 1 1 SA SWITCH WIREHARNESS PLUG 28V (N023313) 59725 RON
129 1 1 HANDLE COVER OMEGA 3 (MOULD) (1006234-00) 3466 RON
131 1 1 LEAD BROWN WSH1-WSH (495610-02) 2347 RON
132 1 1 LEAD BLACK WSH1-WSH (495610-03) 2347 RON
134 1 2 SPRING PACK EJECT (Li-on) (628684-00) 781 RON
140 1 1 BUMPER SPONGE (930026-01) 781 RON
141 1 1 SPRING EJECTOR BATTERY (489874-00) 558 RON
142 1 1 KNOB (487086-00) 781 RON
160 1 1 SIDE HANDLE (493687-00) 5591 RON
170 1 1 DEPTH STOP (580787-00) 893 RON
201 1 1 NQCC SPINDLE DCH (SERVICE) (492807-00) 29862 RON
202 1 1 RING O 12 X 4 (323711-02) 558 RON
203 1 1 NQCC PIECE BEAT DCH (SERVICE) (492808-00) 3466 RON
204 1 1 GUIDE BEATPIECE DCH (SERVICE) (492809-00) 1452 RON
205 1 1 RING. CATCH cod vechi 870890 (N451068) 1117 RON
206 1 1 WASHER CATCH (327087-00) 1788 RON
207 1 1 RING SNAP 22.5 (323762-07) 558 RON
210 1 1 BEARING NEEDLE (590302-00) 5591 RON
211 1 1 CIRCLIP SW28 (488105-00) 781 RON
212 1 1 WASHER CLUTCH (589350-00) 105 RON
213 1 1 SPRING CLUTCH (589346-00) 2795 RON
214 1 1 BUSH CONNECT-CLUTCH/GEAR DCH (SERVICE) (492817-00) 6821 RON
215 1 1 SA BEVEL GEAR PINION BRG (SERVICE) (N071966) 3124 RON
216 1 1 BEARING BALL 6906 (479478-00) 4472 RON
217 1 1 WASHER SPINDLE (589348-00) 1117 RON
218 1 1 CIRCLIP SW26 1.5MM (488390-00) 558 RON
219 1 1 O-RING SEAL CLAMSHELL (491536-00) 558 RON
220 1 1 3M GEARBOX SET 36V DCH (SERVICE) (492923-01) 10512 RON
221 1 1 SEAL CLAMSHELL (478909-00) 2124 RON
222 1 1 SERVICE KIT RAM (SERVICE) (N178363) 4472 RON
223 1 1 RING O DYNAMIC 13X3 (577168-00) 781 RON
224 1 1 HOLLOW PISTON DCH (SERVICE) (492822-00) 11519 RON
225 1 1 WASHER (N108992) 558 RON
226 1 1 SPRING RIVET (490286-00) 558 RON
227 1 1 PIN-BALL DCH (SERVICE) (492823-00) 4472 RON
228 1 1 SHAFT CRANK DCH (SERVICE) (492824-00) 20467 RON
229 1 1 SA BEVEL GEAR PINION BRG (SERVICE) (N071966) 3124 RON
230 1 2 BEARING BALL cod vechi 477133-00 (N168103) 1788 RON
240 1 2 SPRING TRANSMISSION cod vechi 575021-00 (N466046 ) 558 RON
241 1 2 COLLAR TRANSMISSION DCH (SERVICE) (492826-00) 2347 RON
242 1 2 RING. SNAP 8 (323763-10) 781 RON
244 1 2 BEARING (330003-40) 3018 RON
245 1 2 GEAR 3M MACHINE ALPHA20 (SERVICE) (492828-00) 10512 RON
246 1 1 PLATE TRANSMISSION COD VECHI 575022-00 (NA210726) 190 RON
247 1 1 PIN (590312-00) 781 RON
250 1 1 SA 28V MOTOR DCH (SERVICE) (492924-01) 62298 RON
251 1 1 FELT (582865-00) 558 RON
252 1 1 323711-34 - Indisponibil
253 1 1 SA LEVER BAR (478898-00) 4137 RON
254 1 1 WASHER (577802-00) 1229 RON
255 1 2 SCREW THD FORM 4X8 T15 (490129-00) 558 RON
260 1 2 BRUSHBOX SA (632298-00) 2124 RON
800 1 2 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
801 1 1 GREASE GLK FLUID 10G SACHET - SERVICE (487130-04) 3466 RON
818 1 1 ID DEWALT LOGO 36V DCH (PRINT) (495652-00) 2124 RON
821 1 1 RATING PLATE EURO DCH DC228 (PRINT) (576660-19) 558 RON
826 1 1 28V VOLTAGE LABEL DCH (493152-04) 1117 RON
836 1 1 596007-99 - Indisponibil
836 1 1 596005-99 - Indisponibil
836 1 1 596006-99 - Indisponibil
846 1 1 SERVICE KIT NQCC DCH (SERVICE) (N178341) 15993 RON
861 1 1 KITBOX 36V WITH HANDLE (574931-21) 37579 RON
866 1 1 000000-00 - Indisponibil
870 1 1 CHARGER LI-ON 36V 1 HR -GB (SERVICE) (1006633-00) 129966 RON
