Top » Piese de schimb » PIESE DEWALT » D55155 Type 2

D55155 COMPRESSOR Type 2
[D55155 Type 2]
D55155 COMPRESSOR Type 2
Click pentru a mari
Imagini suplimentare
D55155 COMPRESSOR Type 2
Click pentru a mari

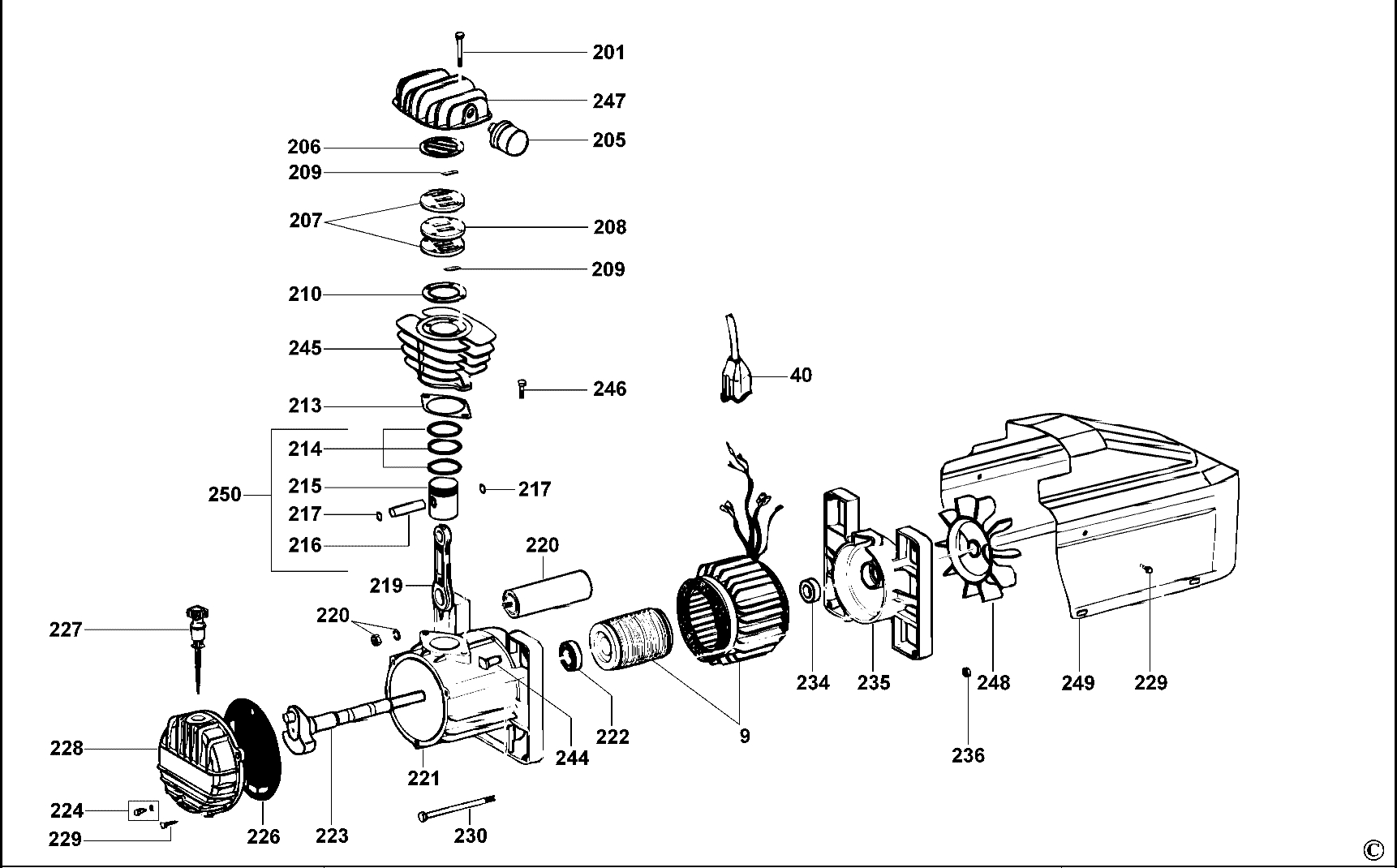

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 ROLL PIN (5130002-00) 558 RON
2 1 1 HANDLE SA (5130347-00) 34336 RON
3 1 1 000000-00 - Indisponibil
4 1 10 SCREW (5130004-00) 558 RON
6 1 1 PANEL SA (624385-02) 3124 RON
6 1 1 PANEL SA (624385-01) 3124 RON
8 1 4 000000-00 - Indisponibil
9 1 1 000000-00 - Indisponibil
9 1 1 MOTOR & PUMP SA 115V (5136086-00) 301765 RON
10 1 8 NUT (5130010-00) 1788 RON
11 1 4 SCREW (5130011-00) 558 RON
12 1 1 SADDLE SA (5130360-00) 10512 RON
13 1 1 DRAIN COCK (5130013-00) 3018 RON
14 1 1 TUBE (5130346-00) 9282 RON
15 1 2 COUPLING (5136180-00) 12861 RON
16 1 1 VALVE (5130344-00) 25164 RON
17 1 1 PIPE (5130345-00) 6821 RON
18 1 1 CONNECTOR (5130018-00) 3466 RON
19 1 4 SCREW (5130019-00) 558 RON
20 1 1 REDUCER (5130020-00) 7940 RON
21 1 1 TUBE (5130310-00) 4137 RON
22 1 1 TUBE (5136481-00) 6821 RON
23 1 1 FLARED ELBOW (5130023-00) 3466 RON
24 1 1 MANIFOLD ASSEMBLY (5140038-51) 117887 RON
25 1 2 000000-00 - Indisponibil
26 1 1 REPAIR KIT (N008792) 10512 RON
26 1 1 REPAIR KIT (5140023-85) 15993 RON
27 1 1 SWITCH SA (5140100-95) 39145 RON
29 1 1 PLUG (5130032-00) 781 RON
30 1 1 000000-00 - Indisponibil
31 1 2 SLEEVE (5130034-00) 558 RON
32 1 2 NUT (5130035-00) 1788 RON
33 1 1 FLARED ELBOW (5130969-00) 190 RON
34 1 1 SLEEVE (5130039-00) 558 RON
36 1 1 NUT (5130024-00) 781 RON
37 1 1 NIPPLE (5130029-00) 893 RON
38 1 1 VALVE (5130030-00) 3466 RON
40 1 1 CORD POWER SUPPLY GB (330060-78) 1891 RON
40 1 1 CORDSET (330061-20) 40599 RON
41 1 2 ISOLATOR (5130051-00) 558 RON
42 1 1 CORD PROTECTOR (5135300-00) 1452 RON
43 1 1 CABLE CLAMP (5136271-00) 4472 RON
44 1 1 LOCK NUT (5136272-00) 1229 RON
46 1 1 CONNECTOR (5131033-00) 12861 RON
47 1 2 CLAMP (5136480-00) 3466 RON
48 1 1 PLUG (5136806-00) 1229 RON
49 1 1 PLUG (5137076-00) 893 RON
201 1 4 BOLT (5130077-00) 893 RON
205 1 1 FILTER (5130005-00) 5031 RON
206 1 1 GASKET (5130078-00) 2347 RON
207 1 2 PLATE (5130079-00) 11519 RON
208 1 1 000000-00 - Indisponibil
209 1 2 VALVE REED (5130081-00) 5591 RON
210 1 1 GASKET (5130082-00) 2124 RON
213 1 1 GASKET (5130083-00) 2124 RON
214 1 1 PISTON KIT (5130084-00) 9736 RON
215 1 1 PISTON (5130085-00) 26730 RON
216 1 1 PIN (5130086-00) 5591 RON
217 1 2 RING (5130087-00) 1788 RON
219 1 1 ROD (5130088-00) 7940 RON
220 1 1 CAPACITOR (5130089-00) 1891 RON
221 1 1 CRANKCASE (5130090-00) 3592 RON
222 1 1 BEARING (5130091-00) 14315 RON
223 1 1 CRANKSHAFT (5130092-00) 45297 RON
224 1 1 PLUG (5130093-00) 1788 RON
226 1 1 SEAL (5130095-00) 5591 RON
227 1 1 DIPSTICK (5130007-00) 2795 RON
228 1 1 COVER (5130096-00) 12861 RON
229 1 7 SCREW (5130097-00) 1788 RON
230 1 2 BOLT (5130098-00) 1117 RON
234 1 1 BEARING (5134652-00) 10512 RON
235 1 1 COVER (5130100-00) 23598 RON
235 1 1 COVER (5134707-00) 25164 RON
236 1 2 NUT (5130101-00) 558 RON
244 1 1 CIRCUIT BREAKER (5134583-00) 15993 RON
245 1 1 CYLINDER (5130104-00) 86681 RON
246 1 2 BOLT (5130105-00) 781 RON
247 1 1 HEAD (5134694-00) 28296 RON
248 1 1 FAN (5130107-00) 12861 RON
249 1 1 HOUSING MOTOR (5130108-00) 34336 RON
250 1 1 PISTON SA (5130102-00) 91714 RON
800 1 1 OIL (5130702-00) 3466 RON
826 1 1 000000-00 - Indisponibil
846 1 1 000000-00 - Indisponibil
847 1 1 REPAIR KIT (5130238-00) 23598 RON
