Top » Piese de schimb » PIESE DEWALT » D51845 Type 3

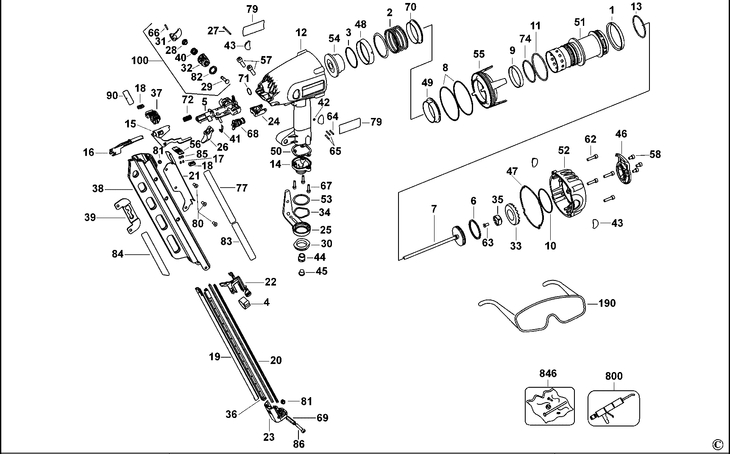

D51845 Full Round Head Framing Nailer Type 3
[D51845 Type 3]
D51845 Full Round Head Framing Nailer Type 3
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 SEAL (390140-00) 190 RON
2 1 1 SPRING (603413-00) 2124 RON
3 1 1 O RING (390146-00) 781 RON
4 1 1 HUB (390147-00) 5591 RON
5 1 1 000000-00 - Indisponibil
6 1 1 O RING (608611-00) 1452 RON
7 1 1 PISTON (610757-00SV) 3124 RON
8 1 2 O RING (390156-00) 893 RON
9 1 1 SEAL (390159-00) 781 RON
10 1 1 O RING (608615-00) 893 RON
11 1 1 O RING (612096-00) 2124 RON
12 1 1 HOUSING (608607-01) 74937 RON
13 1 1 O RING (608617-00) 781 RON
14 1 1 END CAP (612105-00) 4137 RON
15 1 1 CONTACT (617170-00) 7940 RON
16 1 1 CONTACT (638750-00) 7940 RON
17 1 2 DETENT (326467-00) 558 RON
18 1 2 CAP (633359-00) 1452 RON
19 1 1 LINER (391801-00) 1452 RON
20 1 2 LINER (391803-00) 4137 RON
21 1 1 GUIDE (606632-01) 3466 RON
22 1 1 SLIDER (391805-00) 17335 RON
23 1 1 CAP (610774-00) 9282 RON
24 1 1 GUIDE (390736-00) 105 RON
25 1 1 HOOK (390744-00) 5591 RON
26 1 1 TRIGGER (395198-00) 10512 RON
26 1 1 000000-00 - Indisponibil
27 1 1 PIN (395091-00) 1117 RON
28 1 1 WASHER (391781-00) 1117 RON
29 1 1 SHAFT (391782-00) 5031 RON
30 1 1 NUT (612104-00) 3018 RON
31 1 1 LATCH (608613-00) 5591 RON
32 1 1 LATCH (608603-00) 190 RON
33 1 1 BUTTON (610753-00) 1117 RON
34 1 1 WASHER (391787-00) 1117 RON
35 1 1 BUMPER (391789-00) 190 RON
36 1 1 LINER (391802-00) 1788 RON
37 1 1 COVER (N016446) 1229 RON
38 1 1 MAGAZINE (5140046-00) 5484 RON
39 1 1 BRACKET (640781-00) 2795 RON
40 1 1 SPRING (391812-00) 781 RON
41 1 1 SPRING (391813-00) 781 RON
42 1 1 GROMMET (391814-00) 781 RON
44 1 1 BUSHING (395195-00) 190 RON
45 1 1 PLUG (395196-00) 558 RON
46 1 1 DEFLECTOR (612133-01) 2124 RON
47 1 1 GASKET (648243-00) 2347 RON
47 1 1 SEAL (608610-00) 105 RON
48 1 1 COLLAR (N009190) 2347 RON
49 1 1 RETAINER (395204-00) 1452 RON
50 1 1 GASKET (395206-00) 781 RON
51 1 1 CYLINDER (610755-00) 43731 RON
52 1 1 CAP (608609-02) 25164 RON
53 1 1 000000-00 - Indisponibil
54 1 1 BUMPER (610777-00) 4472 RON
55 1 1 COVER (395215-00) 6821 RON
56 1 1 ADJUSTER (633214-00) 3466 RON
57 1 2 SCREW (603383-00) 781 RON
58 1 3 SCREW (603407-00) 558 RON
62 1 4 SCREW (603390-00) 558 RON
63 1 1 SCREW (603391-00) 558 RON
64 1 1 PIN (603392-00) 558 RON
65 1 1 PIN (603393-00) 558 RON
66 1 1 PIN (603394-00) 558 RON
67 1 3 SCREW (603395-00) 558 RON
68 1 1 TRIGGER (N083699) 5031 RON
69 1 1 SPACER (640783-00) 781 RON
70 1 1 BAND (603561-00) 781 RON
71 1 1 O RING (617161-00) 558 RON
72 1 1 SPRING (390735-00) 558 RON
74 1 1 O RING (606640-00) 190 RON
77 1 1 LABEL (646585-00) 893 RON
79 1 1 LABEL (610764-00) 781 RON
80 1 3 SCREW (641127-00) 558 RON
81 1 4 "NUT 6KT M6 ISO7040""" (330021-01) 2347 RON
82 1 1 PLATE (608604-00) 105 RON
83 1 1 LABEL (627136-00) 781 RON
85 1 2 BUSHING (633216-00) 781 RON
86 1 1 SCREW (641166-00) 781 RON
90 1 1 LABEL (N013927) 558 RON
100 1 1 LATCH (623983-00) 12861 RON
190 1 1 SAFETY GLASSES MIRRORED (629042-00) 4137 RON
800 1 1 GREASE (429995-00) 39145 RON
846 1 1 PISTON SA (606123-00) 4825 RON
846 1 1 SPRING (606131-00) 11519 RON
846 1 1 TRIGGER (609993-00) 22144 RON
846 1 1 O RING KIT (5140112-77) 11519 RON
846 1 1 BUMPER (606130-01) 29862 RON
846 1 1 000000-00 - Indisponibil
846 1 1 TRIGGER (606132-00) 10512 RON
846 1 1 000000-00 - Indisponibil
864 1 1 TRIGGER (606134-00) 17335 RON
