Top » Piese de schimb » PIESE DEWALT » D28498 Type 1

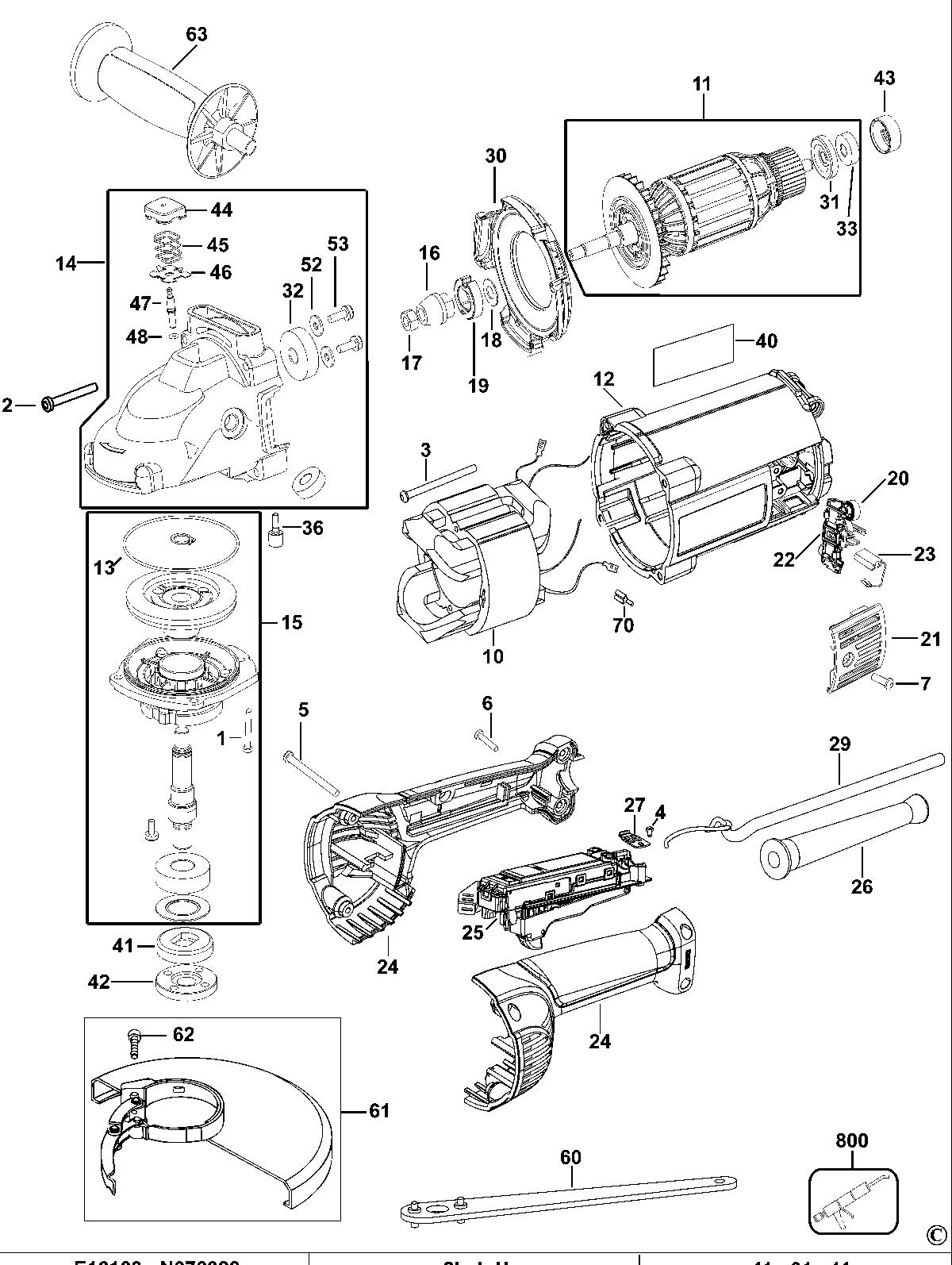

D28498 ANGLE GRINDER Type 1
[D28498 Type 1]
D28498 ANGLE GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
6 1 3 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
7 1 2 SCREW (176951-00) 558 RON
10 1 1 000000-00 - Indisponibil
13 1 1 O RING (397031-00) 781 RON
14 1 1 GEARCASE SA (N074214) 1891 RON
15 1 1 GEARCASE COVER SA (N074213) 14315 RON
16 1 1 PINION (629729-00) 7940 RON
17 1 1 NUT HEX (330015-03) 558 RON
18 1 1 WASHER PINION (639681-00) 781 RON
19 1 1 SPINDLE LOCK COLLAR (632702-00) 1788 RON
21 1 2 DOOR BRUSH (394387-01) 1788 RON
25 1 1 000000-00 - Indisponibil
27 1 1 CLAMP CORD (398217-00) 558 RON
29 1 1 000000-00 - Indisponibil
30 1 1 RADIAL FAN BAFFLE (631350-00) 1452 RON
31 1 1 SHIELD DUST (393238-00) 781 RON
32 1 1 N389509 - Indisponibil
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
36 1 1 SCREW STOP (N033051) 558 RON
40 1 1 000000-00 - Indisponibil
43 1 1 CUP RUBBER (609970-00) 558 RON
44 1 1 SPINDLE LOCK BUTTON (630553-00) 781 RON
45 1 1 SPINDLE LOCK SPRING (638328-00) 558 RON
46 1 1 SPINDLE LOCK RETAINING PLATE (635908-00) 558 RON
47 1 1 SPINDLE LOCK PIN (634589-00) 1117 RON
48 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
52 1 2 WASHER PLAIN (640591-00) 558 RON
53 1 2 SCREW (330045-67) 558 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
62 1 1 SCREW MACHINE PAN HD M6 * 1.0 * 25 (606863-00) 558 RON
63 1 1 SA HANDLE SIDE (613777-00) 9282 RON
70 1 2 TERMINAL (612273-00) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
