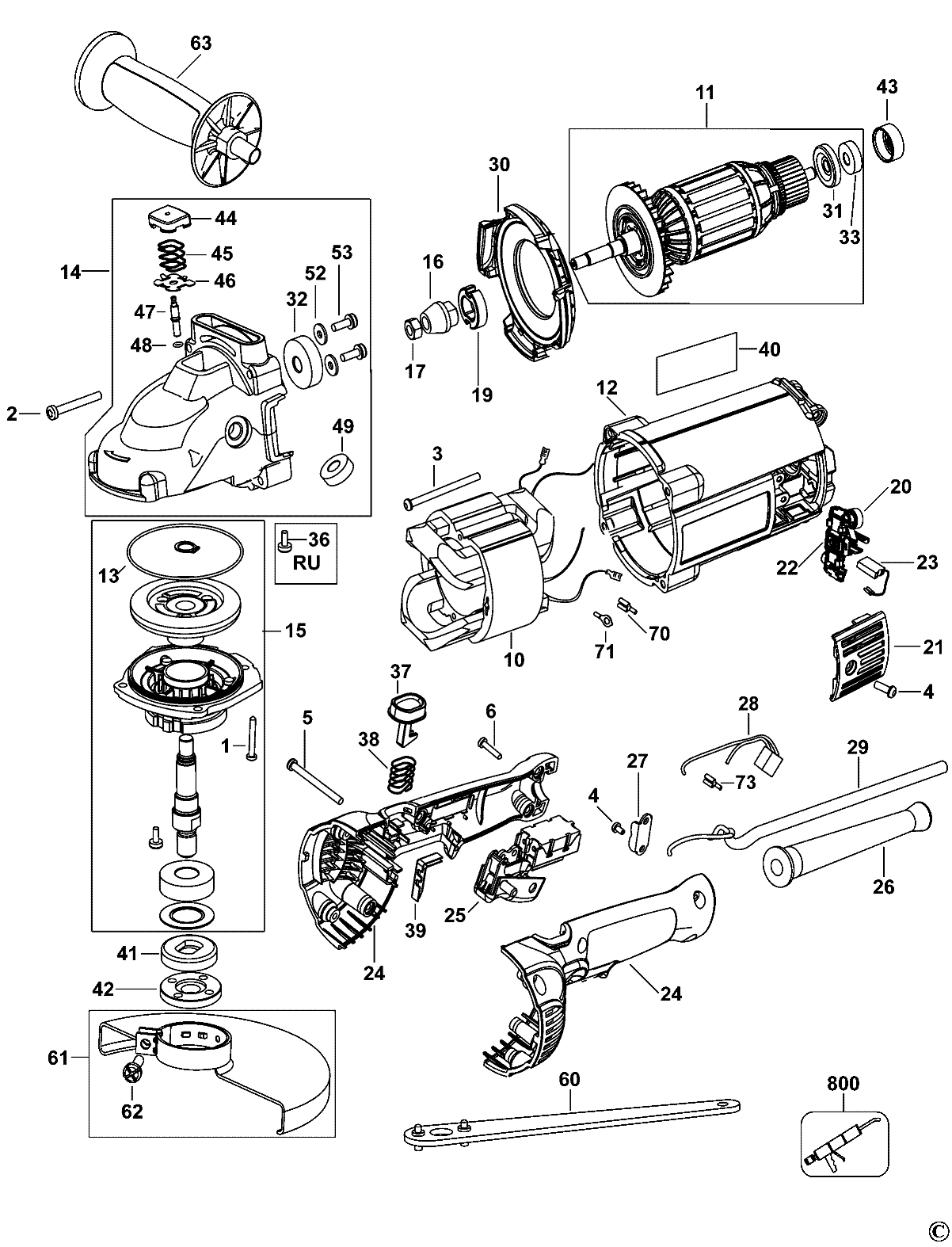

D28491 ANGLE GRINDER Type 5
[D28491 Type 5]
D28491 ANGLE GRINDER Type 5
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 2 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTITE (330019-18) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
13 1 1 O RING (397031-00) 781 RON
14 1 1 GEARCASE SA (N074214) 1891 RON
15 1 1 GEARCASE COVER SA (N261160) 23598 RON
16 1 1 PINION (N286560) 4472 RON
17 1 1 NUT HEX (330015-03) 558 RON
19 1 1 N014393 - Indisponibil
26 1 1 CORD PROTECTOR (N219433) 105 RON
28 1 1 SA CAPACITOR (632218-00) 558 RON
30 1 1 RADIAL FAN BAFFLE (631350-00) 1452 RON
31 1 1 SHIELD DUST (393238-00) 781 RON
32 1 1 N389509 - Indisponibil
33 1 1 BEARING DW818 (390821-01 cod inlocuit cu N110359) BALL BEARING (N110359) 5591 RON
37 1 1 BUTTON LOCK-OFF (636503-00) 781 RON
38 1 1 SPRING (636502-00) 558 RON
39 1 1 COVER (641929-00) 558 RON
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
43 1 1 CUP RUBBER (609970-00) 558 RON
44 1 1 SPINDLE LOCK BUTTON (630553-00) 781 RON
45 1 1 SPINDLE LOCK SPRING (638328-00) 558 RON
46 1 1 SPINDLE LOCK RETAINING PLATE (635908-00) 558 RON
47 1 1 SPINDLE LOCK PIN (634589-00) 1117 RON
48 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
49 1 1 449852-00 - Indisponibil
52 1 2 WASHER PLAIN (640591-00) 558 RON
53 1 2 SCREW (330045-67) 558 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
61 1 1 GUARD SA (N036843) 7940 RON
62 1 1 SCREW (330024-23) 893 RON
63 1 1 SA HANDLE SIDE (651858-01) 3466 RON
70 1 2 TERMINAL (612273-00) 558 RON
71 1 2 TERMINAL (610057-00) 558 RON
73 1 1 TERMINAL (53650-00) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
