D28491 ANGLE GRINDER Type 1
[D28491 Type 1]

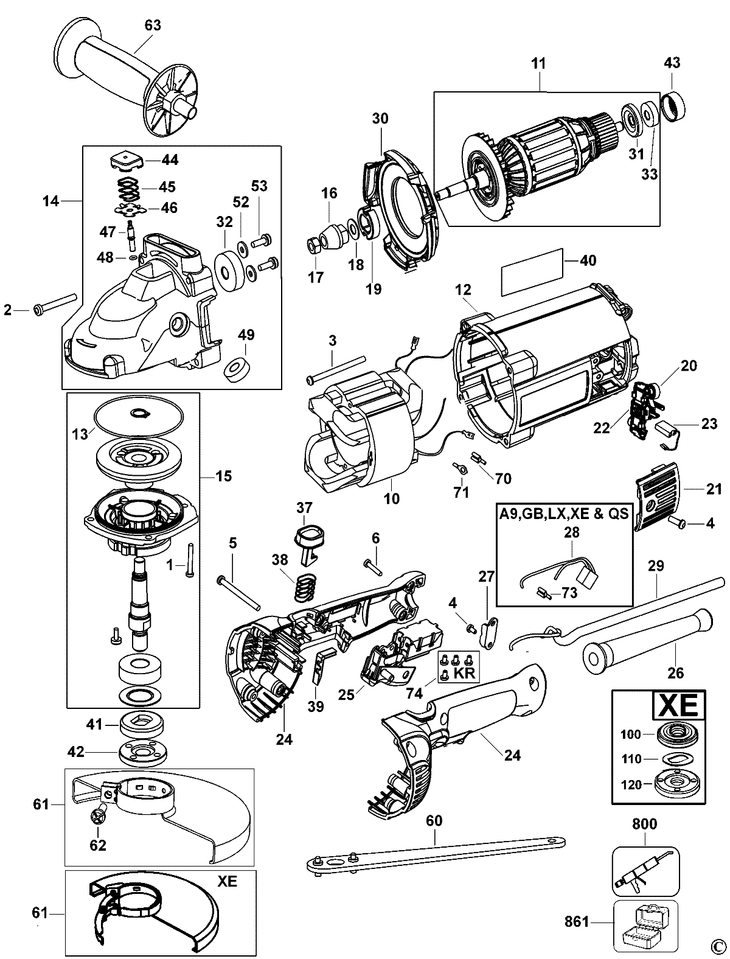

D28491 ANGLE GRINDER Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 4 SCREW (330045-14) 558 RON
2 1 4 SCREW M5.28 X42 (330019-26) 781 RON
3 1 2 SCREW PLASTITE (330019-19) 781 RON
4 1 6 SCREW PLSTC THD FORM M4.55X13 T20 (330019-11) 558 RON
5 1 3 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
6 1 4 SCREW PLASTITE (330019-32) 558 RON
13 1 1 O RING (397031-00) 781 RON
14 1 1 GEARCASE SA (638002-00) 23598 RON
15 1 1 GEARCASE COVER SA (638003-01) 32770 RON
16 1 1 PINION (632710-00) 6821 RON
17 1 1 NUT HEX (330015-03) 558 RON
18 1 1 WASHER PINION (639681-00) 781 RON
19 1 1 SPINDLE LOCK COLLAR (632702-00) 1788 RON
20 1 2 BRUSH SPRING (645650-00) 781 RON
26 1 1 CORD PROTECTOR (604118-00) 190 RON
30 1 1 RADIAL FAN BAFFLE (631350-00) 1452 RON
31 1 1 SHIELD DUST (393238-00) 781 RON
32 1 1 N389509 - Indisponibil
41 1 1 WASHER CLAMP INNER (403150-01) 2347 RON
42 1 1 WASHER OUTER CLAMP PAINTED (401678-05) 2795 RON
43 1 1 CUP RUBBER (609970-00) 558 RON
44 1 1 SPINDLE LOCK BUTTON (630553-00) 781 RON
45 1 1 SPINDLE LOCK SPRING (638328-00) 558 RON
46 1 1 SPINDLE LOCK RETAINING PLATE (635908-00) 558 RON
47 1 1 SPINDLE LOCK PIN (634589-00) 1117 RON
48 1 1 O RING (SPINDLE LOCK) (750831) 558 RON
52 1 2 WASHER PLAIN (640591-00) 558 RON
53 1 2 SCREW (330045-67) 558 RON
60 1 1 WRENCH PIN (635261-00) 2795 RON
61 1 1 SA GUARD (627378-01) 7940 RON
62 1 1 SCREW (330024-23) 893 RON
70 1 2 TERMINAL (612273-00) 558 RON
71 1 2 TERMINAL (610057-00) 558 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
800 1 1 GREASE TUBE (583534-00) 29862 RON
